This is a Helvar L15A 15w wire wound choke to run 1 x 15w T8 Fluorescent Tube
this item is obsolete we are offering the L20A-He please see link
https://www.easy-controlgear.com/products/helvar-l20a-p240e-he-18-36w-magnetic-cfl-ballast?_pos=1&_sid=5320d733e&_ss=r

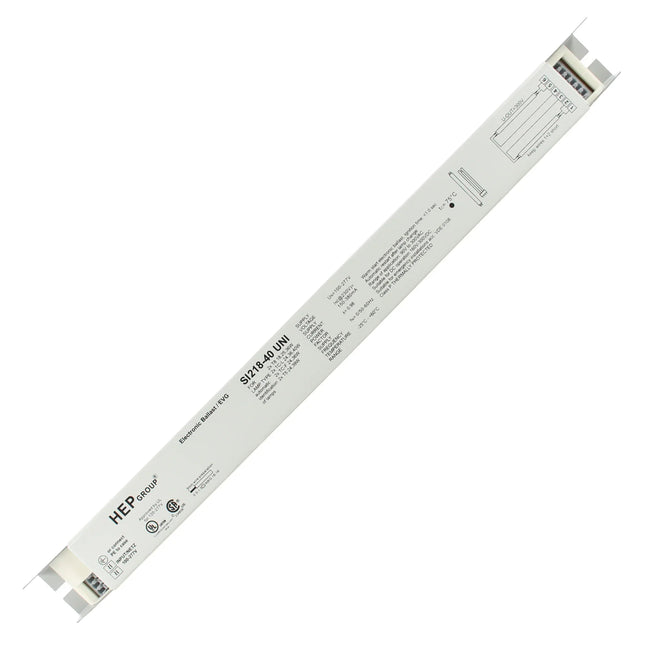

Brand
HEP Group
Assembled Product Weight
0.7 lb
Manufacturer Part Number
SI218-40-UNI
Manufacturer
HEP Group
Color
White
Assembled Product Dimensions (L x W x H)
14.25 x 1.00 x 1.25 Inches

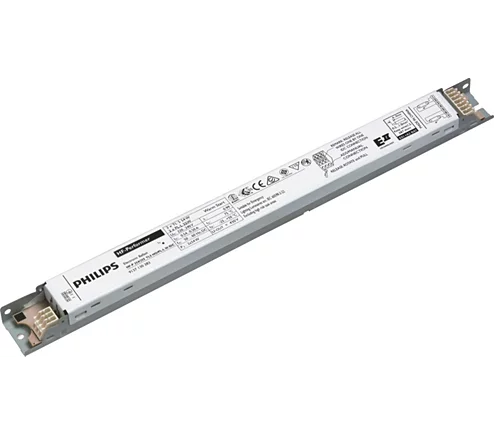

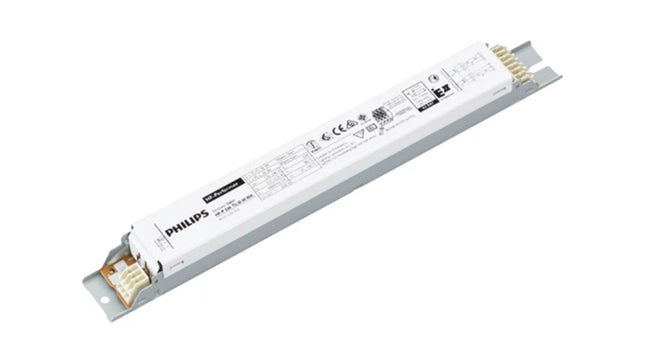

HF-Performer II for PL-T/C/R/L/TL5C lamps
HF-Performer II for PL-T/C/R/L/TL5C lamps HF-P 1 22-42 PL-T/C/L/TL5C EII 220-240V HF-Performer EII PL-T/C/R/T5c is a sustainable, slim and high-frequency electronic ballast for a wide range of CFL- ni applications.
It is ideal for applications where high energy efficiency is required. The HF-Performer EII range has a robust design, meets all relevant international safety and performance standards and is energy-efficient (CELMA EEI A2).
Lamp type PL-T/C/L/TL5C Number of lamps 1 piece/unit Automatic restart Yes Operating and Electrical Input Voltage 220 to 240 V Input frequency 50 to 60 Hz Operating frequency (max.) - kHz
View Datasheet
General Information
Application Code
III
Lamp Type
PL-T/C
Number of Lamps
2 piece/unit
Number of Products on MCB (16A Type B) (Nom)
28
Automatic Restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Max)
- kHz
Operating Frequency (Min)
42 kHz
Operating Frequency (Nom)
45 kHz
Ignition Method
Warm Start
Crestfactor (Max)
1.7
Power Factor 100% Load (Nom)
0.95
Ignition Time (Max)
0.40 s
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Earth Leakage Current (Nom)
0.5 mA
Inrush Current Width
0.250 ms
Constant Wattage Deviation
-2%/+2%
Ballast Factor (Nom)
1
Power Losses (Nom)
0.68-2.21 W
Inrush Current Peak (Max)
18 A
Efficiency at full load [%]
87.97 %
Operating and electrical
Inrush current width
0.30 ms
Line Frequency
50 to 60 Hz
Inrush current peak (max.)
24 A
Number of products on MCB (16 A type B) (nom.)
20
Input frequency
50 to 60 Hz
Input Voltage
220 to 240 V
