The Philips HF-P 3/414 TL5 is a fixed output high frequenct ballast for use with 3/4 x 14w flourescent lamp. This ballast has a flicker free warm start, electrode heating cut off, Low energy consumption and automatic stop circuit (stop start). The Philips HF-P is often used in Department stores, Airports, Railway stations, Hotels and Hospitals. It is also suitable for emergency installations.

Read more less

This Philips HF-R TD 1 14-35 T5 dimmable ballast runs between 1 x 14w - 35w T5 fluorescent tubes. This ballast's lamp power can be regulated from 1% to 100%, automatic stop start, automatic restart after lamp replacement, up to 75% reduction in energy consumption and quick programme flicker free start.The Philips HD-f ballasts are commonly used in offices. These units are for use with installations with emergency back up.

Read more less

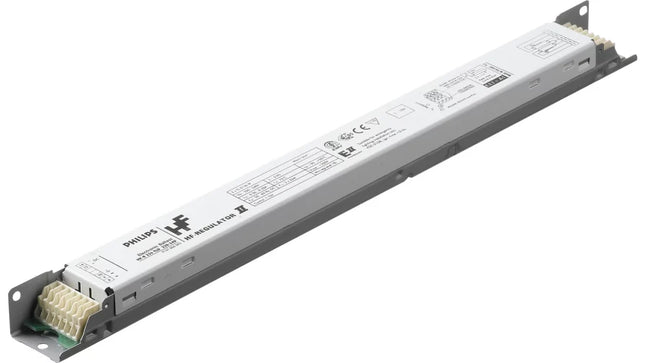

Flat, lightweight high-frequency electronic regulating ballast, using 1-10V protocolfor TL-D fluorescent lamps

Read more less

This Philips HF-R  180 TL5/PL-L dimmable ballast runs between 1 x 80w T5 fluorescent tubes and 1 x 80w PL-L. This ballast's lamp power can be regulated from 1% to 100%, automatic stop start, automatic restart after lamp replacement, up to 75% reduction in energy consumption and quick programme flicker free start.The Philips HD-f ballasts are commonly used in offices. These units are for use with installations with emergency back up.

Read more less

Flat, lightweight high-frequency electronic regulating ballast, using 1-10V protocolfor TL-D fluorescent lamps

Read more less

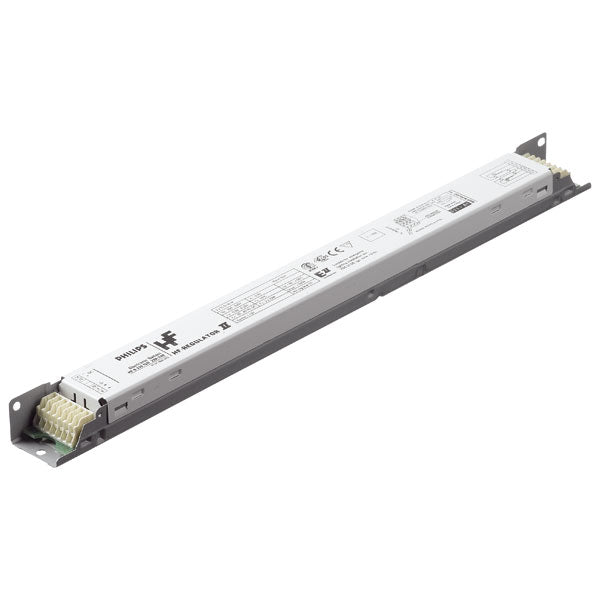

This Philips HF-R TD 2 14-35 TL5 dimmable ballast runs between : 2 x 14w - 35w T5 fluorescent tubes. This ballast's lamp power can be regulated from 1% to 100%, digital control input according to the industry standard DALI (digital addressable lighting interface) combined with the touch and dim pushbutton protocol, automatic stop start, automatic restart after lamp replacement, up to 75% reduction in energy consumption and quick programme flicker free start.The Philips HD-f ballasts are commonly used in offices. These units are for use with installations with emergency back up.

Read more less

Philips Touch and DALI high frequency regulator dimming ballasts for TL-5, T8 & PL-L fluorescent lamps. The lamp power can be regulated from 100 to 1%. Up to 75% reduction in energy consumption can be achieved by using automatic lighting control systems (e.g. Philips ActiLume). Quick programmed start: 0.5 sec, flicker-free warm start, preheating the lamp electrodes. This enables the lamps to be switched on and off without reducing useful life. Ideal for high switching frequency. Digital control input according to the industry standard DALI (Digital Addressable Lighting Interface) combined with the Touch and Dim push button protocol. Low energy consumption in standby 0.35W Will operate the following lamps 2 X 18W T8 2 X 14,21,24.39W T5 2 X 24,36,40W PL-L 913700698466 69691900

Read more less

This intelligent high-frequency electronic dimming ballast utilizes the DALI or Touchand Dim push-button protocol for fluorescent lamps. It meets A1BAT requirements,thereby pre-empting upcoming legislation. With a special command you can retrievethe system’s mains power consumption, and with another you can find out whichlamp wattage is connected. Combined with controls, additional energy savings canbe achieved. The ballast is primarily designed for Indoor application. For outdoorapplication, the luminaire should be minimum ClassⅠand need to be sufficientlyprotected against water & dust. The installation should also be guard against anylightening surge or any other necessary electrical protection as deemed in suchtypical installation & application.

Read more less

    ALTERNATIVE PLEASE TYPE IN PTI150I-OS The Philips HID-PV C 150 /l CDM electronic ballast comes complete with strain relief and runs 1x150w metal halide lamps.this ballast is available as independent (/I) for independent use on a (false) ceiling, minimal lamp power spread, microprocessor controlled, lamp end of life detection, long lifetime of 40,000 hours, lamp life is increased by up to 30% for CDM lamps, silent operation without hum it is also RoHS compliant. This Philips HID-PV is usually used in accent and decorative lighting for shops and retail, public spaces, lobbies and offices. This unit is designed for optimum system performance with Philips MASTERcolour CDM lamps.

Read more less

The Philips HID-PV C 70 /l CDM electronic ballast comes complete with strain relief and runs 1x70w metal halide lamps.this ballast is available as independent (/I) for independent use on a (false) ceiling, minimal lamp power spread, microprocessor controlled, lamp end of life detection, long lifetime of 40,000 hours, lamp life is increased by up to 30% for CDM lamps, silent operation without hum it is also RoHS compliant. This Philips HID-PV is usually used in accent and decorative lighting for shops and retail, public spaces, lobbies and offices. This unit is designed for optimum system performance with Philips MASTERcolour CDM lamps. Full Product Code: 872790085988100 Specifications General Information Remarks UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG Type version ng Lamp type CDM Number of lamps 1 piece/unit Suitable for outdoor use No Number of products on MCB (16 A type B) (nom.) 20 Automatic restart Yes Operating and Electrical Input Voltage 220 to 240 V Input frequency 50 to 60 Hz Operating frequency (nom.) 0.14 kHz Power factor 100% load (nom.) 0.95 Ignition voltage (max.) 4.0 kV Ignition switch-off time (nom.) 18 min Mains voltage performance (AC) -10%-+6% Mains voltage safety (AC) -18%-+10% Earth leakage current (max.) 0.25 mA Inrush current width 0.33 ms Constant wattage deviation -3%/+3% Power losses (nom.) 7.0 W Inrush current peak (max.) 33 A Wiring Cable capacity output wires mutual (nom.) 150 pF Cable length from device to lamp 2.0 m Ballast contact wire cross section 0.50-2.50 mm² Connector type Insert System characteristics Rated ballast-lamp power 70 W Temperature T-ambient (max.) 45 °C T-ambient (min.) -20 °C T storage (max.) 75 °C T storage (min.) -25 °C T-case lifetime (nom.) 75 °C T-Case maximum (max.) 75 °C Mechanical and Housing Housing /I Approval and Application Active temperature protection Yes EMI 9 kHz ... 300 MHz CISPR 15 ed 7.2 Safety standard EN 61347-2-12 Quality standard ISO 9000:2000 Environmental standard ISO 14001 Harmonic current emission standard EN 61000-3-2 EMC immunity standard EN 61547 Vibration standard IEC68-2-6 F c Bumps standard IEC 68-2-29 Eb Humidity standard IEC 928-13 Approval marks CE marking ENEC certificate Temperature marking F Humming and noise level 37 dB(A) Product Data Full product code 872790085988100 Order product name HID-PV C 70 /I CDM 220-240V 50/60Hz NG EAN/UPC – product 8711500881717 Order code 85988100 Local order code PVC070ICDM SAP numerator – quantity per pack 1 Numerator – packs per outer box 12 SAP material 913700653266 SAP net weight (piece) 0.360 kg

Read more less

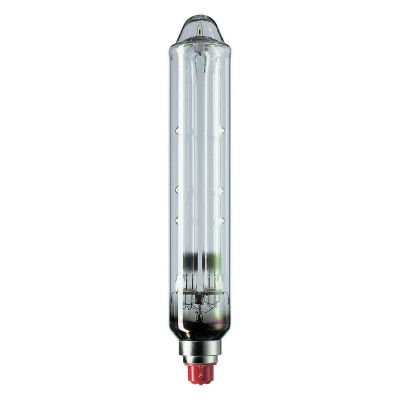

35-watt low-pressure sodium SOX lamp, this U-shaped discharge tube is in a clear tubular outer bulb. This lamp produces a yellow colour light, which can be used for road lighting, tunnel lighting, security applications and many more! Burn H20, Colour 1750, Length 740mm, Lumen 22000, and Diameter 54mm. Weight :  TBAkg Cap/fitting :  BY22d Watts :  135 Volts :  240 Colour :  1750k Manufacturer :  Philips Technology :  Low Pressure Sodium Beam angle :  N/A Lumens :  22000 Length :  740 Item bin :  K024 Diameter :  54 Item size :  54 x 740 Weee logo :  Y Fix centres :  N/A Colour temp :  TBA Manufacturer code :  SX135 EAN Number :  8711500179791

Read more less

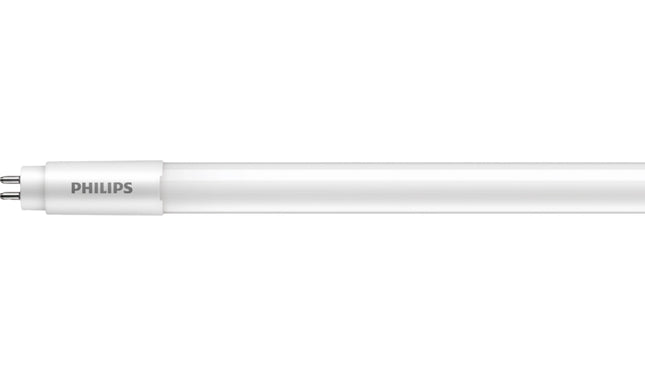

Philips MASTER LEDtube Mains T5 installs in luminaires operating onmains power connection. So simple to operate! . Perfectly safe, reliable & easy toinstall Philips MASTER LEDtube Mains T5 is the ideal alternative to standardfluorescent tubes to maximize value over lifetime with high energy saving and lowermaintenance costs.

Read more less
