Philips MASTER LEDtube Mains T5 installs in luminaires operating onmains power connection. So simple to operate! . Perfectly safe, reliable & easy toinstall Philips MASTER LEDtube Mains T5 is the ideal alternative to standardfluorescent tubes to maximize value over lifetime with high energy saving and lowermaintenance costs.

Read more less

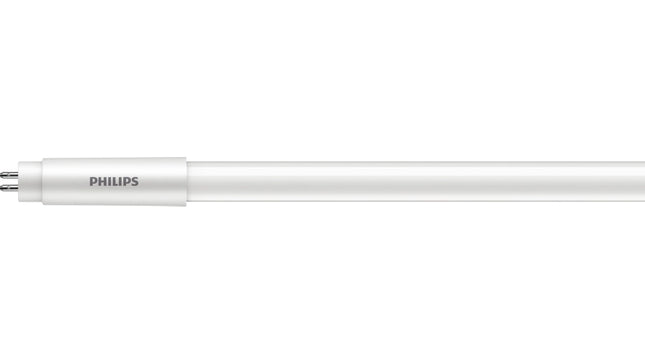

Philips MAS LEDtube 600mm HE 7W 840 T5 929003795502

Read more less

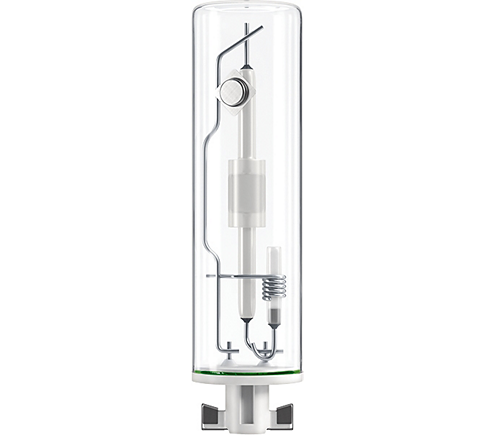

Specifications General Information Cap-Base PGJ5  [ PGJ5] Operating Position UNIVERSAL  [ Any or Universal (U)] Life to 5% Failures (Nom) 9000 h Life To 10% Failures (Nom) 10000 h Life to 20% Failures (Nom) 11000 h Life to 50% Failures (Nom) 12000 h Light Technical Color Code 830  [ CCT of 3000K] Luminous Flux (Rated) (Nom) 1600 lm Color Designation Warm White (WW) Lumen Maintenance 1000 h (Nom) 80 % Lumen Maintenance 10000 h (Nom) 60 % Lumen Maintenance 2000 h (Nom) 75 % Lumen Maintenance 5000 h (Nom) 65 % Chromaticity Coordinate X (Nom) 0.433 Chromaticity Coordinate Y (Nom) 0.392 Correlated Color Temperature (Nom) 3000 K Luminous Efficacy (rated) (Nom) 72 lm/W Color Rendering Index (Min) 84 Color Rendering Index (Nom) 87 Operating and Electrical Power (Nom) 22.1 W Lamp Current Run-Up (Max) .5 A Re-Ignition Time (Min) (Max) 15 min Ignition Time (Max) 30 s Voltage (Max) 108 V Voltage (Min) 95 V Voltage (Nom) 100 V Controls and Dimming Dimmable No Run-Up Time 90% (Max) 3 min Mechanical and Housing Bulb Finish Clear Approval and Application Energy Efficiency Label (EEL) A Mercury (Hg) Content (Nom) 2.4 mg Energy Consumption kWh/1000 h 24 kWh UV Pet (Niosh) (Min) 8 h/500lx Damage Factor D/fc (Max) 0.5 Luminaire Design Requirements Bulb Temperature (Max) 380 °C Cap-Base Temperature (Max) 250 °C Product Data Full product code 871150020751715 Order product name MASTERColour CDM-Tm Mini 20W/830 PGJ5 1CT/12 EAN/UPC - Product 8711500207517 Order code 928087905130 Numerator - Quantity Per Pack 1 Numerator - Packs per outer box 12 Material Nr. (12NC) 928087905130 Net Weight (Piece) 0.005 kg ILCOS Code MT/UB-20/830-H/L-PGJ5-13.3/52

Read more less

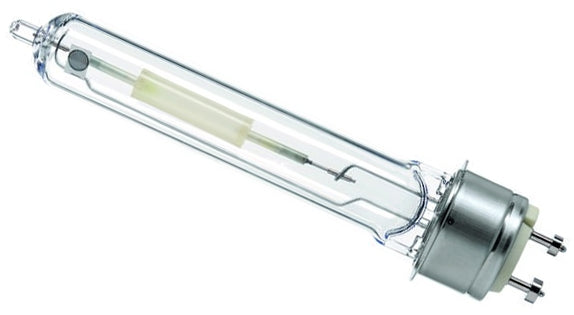

4 MASTER CosmoWhite CPO-TW & CPO-TW Xtra Products found Browse the MASTER CosmoWhite CPO-TW & CPO-TW Xtra products and find the product that you are looking for by using the compare option. Lamp Luminous flux Cap-base Bulb Wattage Show more filters Product Wattage    Lamp Luminous flux    Color Temperature  IES Leaflet MASTER CosmoWhite CPO-TW Xtra 45W/628 PGZ12 15001500 44.5 4900 2800 N/A Where to Buy MASTER CosmoWhite CPO-TW Xtra 60W/728 PGZ12 20851415 60.0 7200 2800 N/A Where to Buy MASTER CosmoWhite CPO-TW Xtra 90W/728 PGZ12 21121715 90.0 10800 2800 N/A Where to Buy MST COSMOWH CPO-TW Xtra 140W/728 PGZ12 20853815 141.0 17600 2800 N/A Where to Buy Product family information New-generation ceramic metal halide lamps used in Outdoor offering efficient and pleasant white light Benefits Attractive white light Best optical efficacy allows greater spacing between luminaires, thereby reducing investment Highest energy saving and lowest cost of ownership Features Highly efficient white light Long reliable lifetime combined with highest system efficacy Unique new burner design and positioning in combination with best lamp fixation (PGZ12) provides best optical efficacy Compact size: 50% smaller than SON/HPL systems New electronic gear platform including dimming options Applications Urban public lighting for city centers, residential areas and roads Warning & Safety Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598) The luminaire must be able to contain hot lamp parts if the lamp ruptures Use only with electronic control gear Control gear must include end-of-life protection (IEC61167, IEC 62035) Downloads

Read more less

4 MASTER CosmoWhite CPO-TW & CPO-TW Xtra Products found Browse the MASTER CosmoWhite CPO-TW & CPO-TW Xtra products and find the product that you are looking for by using the compare option. Lamp Luminous flux Cap-base Bulb Wattage Show more filters Product Wattage    Lamp Luminous flux    Color Temperature  IES Leaflet MASTER CosmoWhite CPO-TW Xtra 45W/628 PGZ12 15001500 44.5 4900 2800 N/A Where to Buy MASTER CosmoWhite CPO-TW Xtra 60W/728 PGZ12 20851415 60.0 7200 2800 N/A Where to Buy MASTER CosmoWhite CPO-TW Xtra 90W/728 PGZ12 21121715 90.0 10800 2800 N/A Where to Buy MST COSMOWH CPO-TW Xtra 140W/728 PGZ12 20853815 141.0 17600 2800 N/A Where to Buy Product family information New-generation ceramic metal halide lamps used in Outdoor offering efficient and pleasant white light Benefits Attractive white light Best optical efficacy allows greater spacing between luminaires, thereby reducing investment Highest energy saving and lowest cost of ownership Features Highly efficient white light Long reliable lifetime combined with highest system efficacy Unique new burner design and positioning in combination with best lamp fixation (PGZ12) provides best optical efficacy Compact size: 50% smaller than SON/HPL systems New electronic gear platform including dimming options Applications Urban public lighting for city centers, residential areas and roads Warning & Safety Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598) The luminaire must be able to contain hot lamp parts if the lamp ruptures Use only with electronic control gear Control gear must include end-of-life protection (IEC61167, IEC 62035) Downloads

Read more less

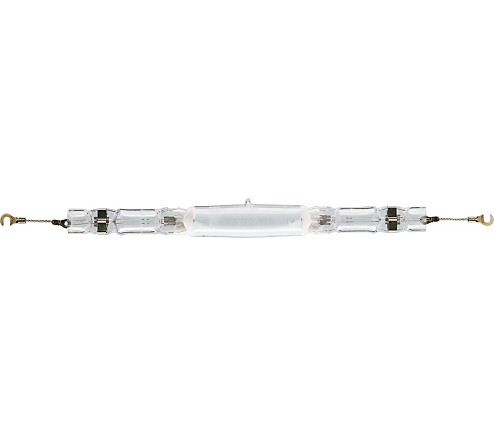

MASTER MHN-LA 2000W/842 400V XWH Philips MHN-LA 2000w/842 400v xwh. Philips 2000 watt long arc lamp. Used in Sports and Stadia floodlighting. Base: X528 cap Voltage: 380 – 440 volts. Length:  353 mm. Colour: Cool White / 4200k. Order Code: 200747. EAN: 8711500200747. Data Sheet – Philips MHN-LA 2000     General Information Cap base X528  [ X528] Operating position P5  [ Parallel +/-5D or Horizontal(HOR)] Life to 5% failures (nom.) 4500 h Life to 10% failures (nom.) 6000 h Life to 20% failures (nom.) 8500 h Life to 50% failures (nom.) 13000 h Light Technical Colour Code 842  [ CCT of 4,200 K] Luminous flux (rated) (min.) 193000 lm Luminous flux (rated) (nom.) 214000 lm Colour designation Cool White (CW) Lumen maintenance 1,000 hours (nom.) 94 % Lumen maintenance 10,000 hours (nom.) 63 % Lumen maintenance 2,000 hours (nom.) 89 % Lumen maintenance 5,000 hours (nom.) 76 % Chromaticity coordinate X (nom.) 370 Chromaticity coordinate Y (nom.) 370 Correlated Colour Temperature (Nom) 4200 K Luminous efficacy (rated) (nom.) 105 lm/W Colour rendering index (nom.) 72 Operating and Electrical Lamp supply voltage 400 V  [ 400] Power (Rated) (Nom) 2040.0 W Lamp current run-up (max.) 15 A Lamp current (EM) (nom.) 9.6 A Ignition supply voltage (min.) 342 V Voltage (Max) 245 V Voltage (Min) 220 V Voltage (Nom) 235 V Controls and Dimming Dimmable No Mechanical and Housing Lamp Finish Clear Cap-base information Cable (C) Approval and Application Energy efficiency label (EEL) A+ Mercury (Hg) content (nom.) 194 mg Energy consumption kWh/1,000 hours 2244 kWh UV Specific eff. radiant power 280 mW/klm Luminaire Design Requirements Bulb temperature (max.) 920 °C Pinch temperature (max.) 350 °C Product Data Full product code 871150020074700 Order product name MASTER MHN-LA 2000W/842 400V XWH EAN/UPC – product 8718291548201 Order code 20074700 Local order code 2000MHNLA842 SAP numerator – quantity per pack 1

Read more less

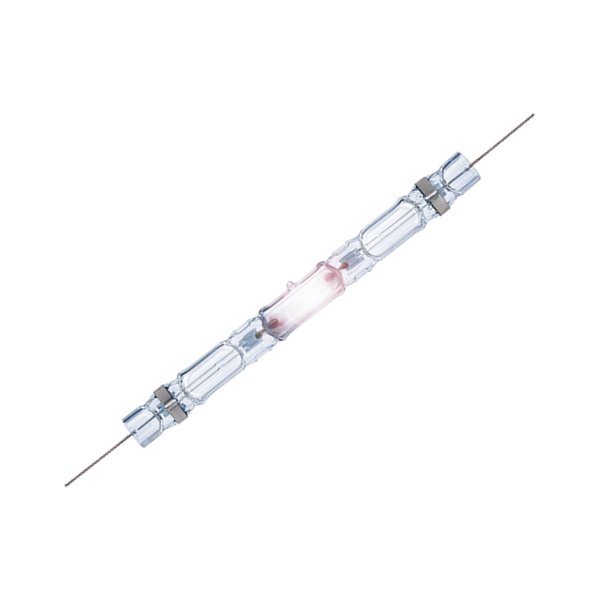

Product Description MASTER MHN-FC Compact quartz metal halide lamps with double pinch Benefits • Allows compact luminaire systems with precision optics for minimal light spill • Good color rendering creates a pleasant ambience with high visual comfort for players and spectators • Continuous spectral distribution offers options for semi-professional stadiums and area lighting Features • Double-pinch concept results in long lifetime • Choice of 1000 W and 2000 W types • Natural white color appearance • Compact light source allows small luminaire design Application • Recreational sports and area floodlighting Warnings and Safety • Use only in totally enclosed luminaire, even during testing (IEC61167, IEC 62035, IEC60598) • The luminaire must be able to contain hot lamp parts if the lamp ruptures • A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner. Product family leaet, 2021, April 26 data subject to change Lighting Lighting Versions MHN-FC 2000 W, 2200 W MHN-FC, 1000W Dimensional drawing D L O A C X Product D (max) D O X L A C (max) MASTER MHN-FC 2000W/740 400V XW 33 mm 25.5 mm 108 mm 58 mm 177 mm 290 mm 357 mm MASTER MHN-FC 1000W/740 230V XW 33 mm 25.5 mm 42.5 mm 58 mm 144 mm 226 mm 290 mm MASTER MHN-FC 2200W/640 400V XW 33 mm 25.5 mm 108 mm 58 mm 177 mm 290 mm 476 mm Approval and Application Energy Efficiency Label (EEL) A+ Controls and Dimming Dimmable No General Information Cap-Base DOUBLEENDED Operating Position P5 Luminaire Design Requirements Bulb Temperature (Max) 950 °C Light Technical Color Designation White (WH) Lumen Maintenance 1000 h (Nom) 90 % Lumen Maintenance 10000 h (Nom) 70 % Lumen Maintenance 2000 h (Nom) 85 % Lumen Maintenance 5000 h (Nom) 75 % Mechanical and Housing Bulb Finish Clear Approval and Application Order Code Full Product Name Energy Consumption kWh/ 1000 h Mercury (Hg) Content (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 2235 kWh 105 mg 928079805130 MASTER MHN-FC 2200W/640 400V XW 2464 kWh 103.5 mg 928075705130 MASTER MHN-FC 1000W/740 230V XW 1144 kWh 85 mg Operating and Electrical (1/2) MASTER MHN-FC Product family leaet, 2021, April 26 2 data subject to change Order Code Full Product Name Lamp Current (EM) (Nom) Voltage (Max) Voltage (Min) Voltage (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 10.11 A 235 V 205 V 222 V 928079805130 MASTER MHN-FC 2200W/640 400V XW 11.00 A 242 V 213 V 230 V Order Code Full Product Name Lamp Current (EM) (Nom) Voltage (Max) Voltage (Min) Voltage (Nom) 928075705130 MASTER MHN-FC 1000W/740 230V XW 8.9 A 145 V 115 V 130 V Operating and Electrical (2/2) Order Code Full Product Name Power (Rated) (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 2032.0 W 928079805130 MASTER MHN-FC 2200W/640 400V XW 2240.0 W Order Code Full Product Name Power (Rated) (Nom) 928075705130 MASTER MHN-FC 1000W/740 230V XW 1040.0 W General Information Order Code Full Product Name Life To 10% Failures (Nom) Life To 20% Failures (Nom) Life To 50% Failures (Nom) Life To 5% Failures (Nom) 928070405130 MASTER MHNFC 2000W/740 400V XW 8000 h 9500 h 12000 h 7000 h 928079805130 MASTER MHNFC 2200W/640 400V XW 5200 h 6500 h 9300 h 4140 h Order Code Full Product Name Life To 10% Failures (Nom) Life To 20% Failures (Nom) Life To 50% Failures (Nom) Life To 5% Failures (Nom) 928075705130 MASTER MHNFC 1000W/740 230V XW 8000 h 9500 h 12000 h 7000 h Light Technical (1/2) Order Code Full Product Name Chromaticity Coordinate X (Nom) Chromaticity Coordinate Y (Nom) Color Code Correlated Color Temperature (Nom) 928070405130 MASTER MHN-FC 2000W/740 400V XW 380 419 740 4200 K 928079805130 MASTER MHN-FC 382 400 640 4100 K Order Code Full Product Name Chromaticity Coordinate X (Nom) Chromaticity Coordinate Y (Nom) Color Code Correlated Color Temperature (Nom) 2200W/640 400V XW 928075705130 MASTER MHN-FC 1000W/740 230V XW 374 366 740 4100 K Light Technical (2/2) Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 928070405130 MASTER MHN-FC 2000W/7 40 400V XW - 60 102 lm/W 190000 lm 210000 lm Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 928079805130 MASTER MHN-FC 2200W/6 40 400V XW 56 60 105 lm/W 208800 lm 232000 lm MASTER MHN-FC Product family leaet, 2021, April 26 3 data subject to change Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 928075705130 MASTER MHN-FC 1000W/7 62 65 91 lm/W 88000 lm 93000 lm Order Code Full Product Name Color Rendering Index (Min) Color Rendering Index (Nom) Luminous Efficacy (rated) (Nom) Luminous Flux (Rated) (Min) Luminous Flux (Rated) (Nom) 40 230V XW MASTER MHN-FC © 2021 Signify Holding All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial o„er and does not form part of any quotation or contract, unless otherwise agreed by Signify. All trademarks are owned by Signify Holding or their respective owners. www.lighting.philips.com 2021, April 26 - data subject to change

Read more less

This is a Philips SND 58 superimposed pulse, digitally controlled ignitor for CDO/SON/CDM/HPIT lamps.

Read more less

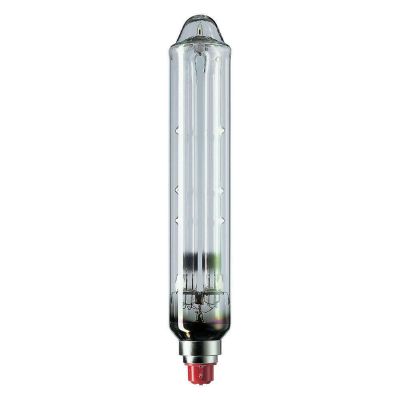

Part Number SOX180-PH Category Discharge Lamps Type SOX Bulbs Cap [?] B22d/BC Volts This item is run by control gear in the fitting Watts 180w Finish/Colour [?] Clear Life 18000 hours Length 1120mm Diameter 65mm Manufacturer Philips Beam Angle [?] N/A EAN 8711500179814

Read more less

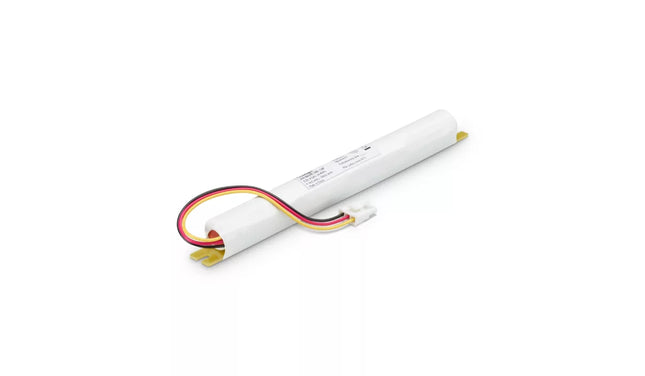

Philips TrustSight 3.6V 3cell 4000mAh batt NiMH 929001652506

Read more less

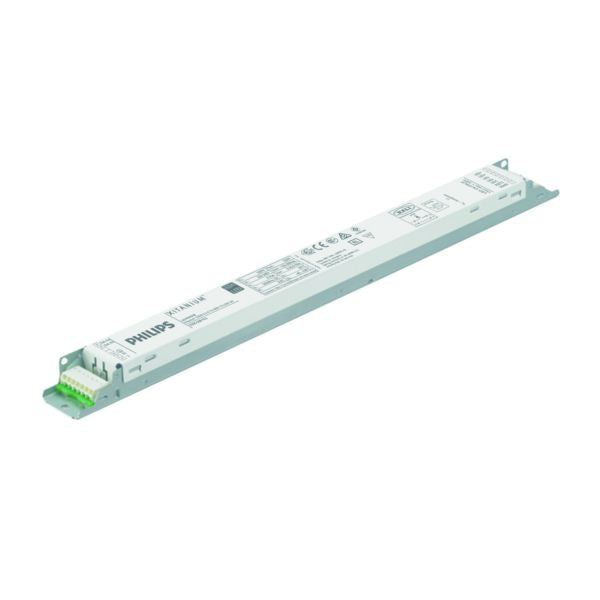

Philips Xitanium 100W/0.25-0.7A 220V TD16 Non Dimmable Driver from Philips Model: 929001547306 Philips presents this premium quality non isolated LED driver that is manufactured to run 100W max and to produce a 50-220V output. It is 360x30x16mm in size and is ideal for locations such as retail stores and office buildings. The current output can be adjusted via resistor or via the Philips MultiOne configurator. Technical Specifications Control Gear Type Electronic Transformer Accessory Type LED Driver Wattage 28-100 W Manufacturer Philips Dimming? Non-Dimmable Depth 16 mm Input Voltage 220-240 V Length 360 mm Type Control Gear IP Rating IP20 Width 30 mm Output Voltage (LED Driver) 50-220 V Control Gear Technology LED

Read more less

This is the alternative which will be sent  : https://www.easy-controlgear.com/products/ecxd1050-299-sr-186763-vossloh-schwabe?_pos=1&_sid=b84bea067&_ss=r   This is a Philips Xitanium 25W LH 0.3-1A 36V I 230v is a new modern 3-in-1 housing design. The adjustable output current enables operation of various LED configurations from different LED manufacturers. This driver is dimmable using touch, DALI or Independent dimming.

Read more less
