Power LED PCV1260 60W 12VDC 0-5A IP20 Rated Latch-Off Protection Constant Voltage LED Driver

Read more less

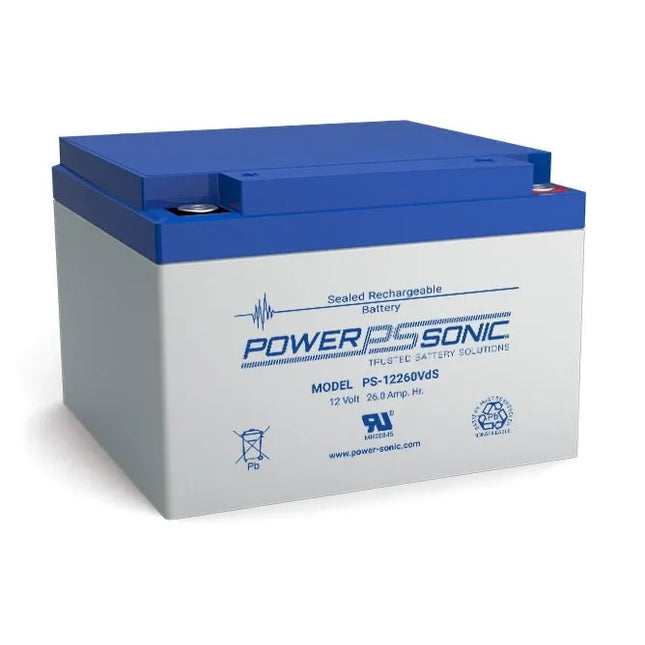

Power Sonic PS-12260VdS 12V 26Ah VdS & NCP Approved

Read more less

POWERLED 75W 24VDC 0 ~ 3.125A IP67 Rated Constant Voltage LED Driver PCV2475E

Read more less

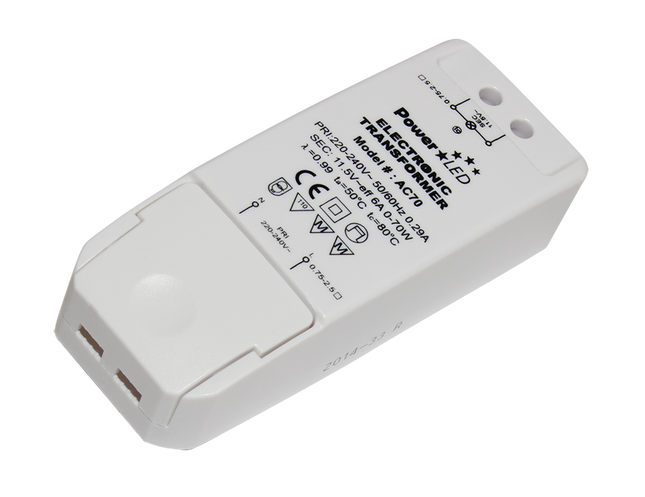

12v 6a LED Driver 50/60Hz  AC70 are 11.5Vac 6A output AC-AC Electronic transformers designed for 0-70W LED lighting applications and halogen lamps requiring a supply of 12V AC. Suitable for use with leading and trailing edge dimmers; where using with LED lamps you must ensure suitable match between dimmer, lamp and driver.

Read more less

Suitable for low loading 12V ac lamps, including halogen lightsCaptive terminal screw connections for ease of installationSnap lock cable strain reliefOver load, short circuit & thermal protectionLeading and trailing edge operationSafe no-load operation High efficiency

Read more less

Generic|Description|Product LED Driver Generic|Features|Ingress Protection IP20 Generic|Features|Extra Information 100 to 240VAC at 47/63Hz Input 24V 36W 0 to 1.5A Screw Terminal Connection Generic|Material & Finish|Material Plastic Generic|Dimensions|Length Min Max 166 mm Generic|Dimensions|Width 52 mm Generic|Dimensions|Depth 24 mm Generic|General|Unit Weight 0.13 kg Dimension 36W 24V 166x52x24mm Finish Plastic Generic|Dimensions|Length 166 mm Manufacturer PowerLed (UK) Ltd Brand PowerLED

Read more less

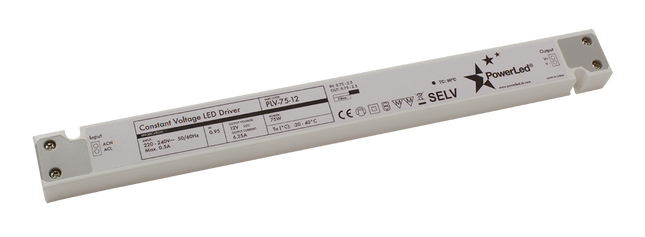

75Watt  12V Non Dimmable Slimline

Read more less

PS-12650VDS Powersonic sla battery

Read more less

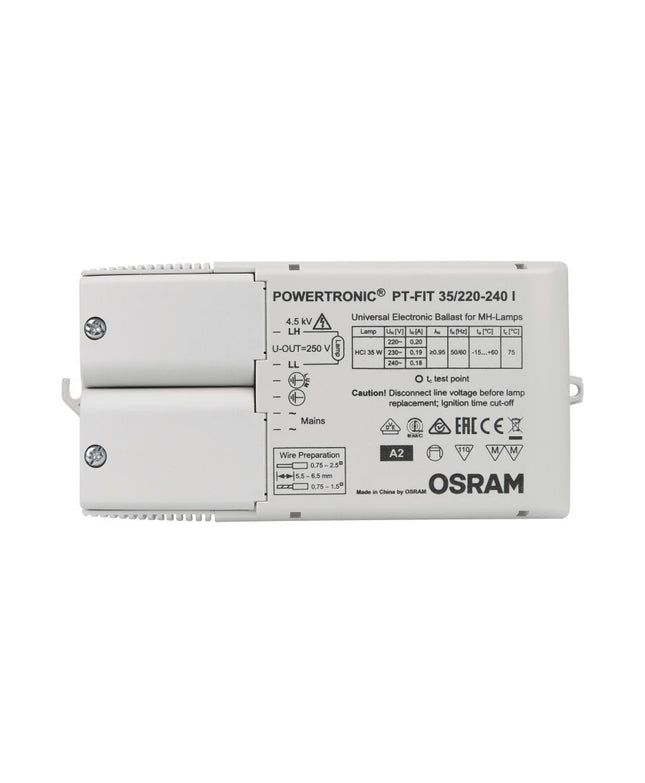

35w Powertronic Ballast - Osram - PTFIT35I Product family benefits ECG with ergonomic strain relief for correct installation in suspended ceilings Optimized cost/benefit factor Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL) Areas of application Shop lighting Health and fitness areas (in luminaires with protection class IP66 or higher) Effect and accent lighting Safety adviceBallast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point t of the ECG does not exceed the maximum value.Attention!For safety reasons disconnect the device before replacing the lamp!   Technical Data Electrical data Lamp wattage 39 W Maximum output power 39 W Line current 0.19 A Ignition voltage 4.5 kVp Operating frequency 0.200…0.240 kHz System wattage 43.00 W Efficiency in full-load 91 % Input voltage AC 198…264 V Nominal voltage 220…240 V Mains frequency 50…60 Hz Power factor λ 0.95 Inrush current 30 A Max. ECG no. on circuit breaker 10 A (B) 15 Max. ECG no. on circuit breaker 16 A (B) 26 Max. no. of ECGs on 16A MCB with EBN-OS 65 Protective conductor current 0.3 mA U-OUT (working voltage) 250 V Max. working voltage between LH and LL 250 V Max. working voltage betw. LL/LH & earth 250 V Max. capacitance of wire ECG/lamp 120 pF Dimensions & weight Length 172.0 mm Width 83.0 mm Height 33.0 mm Mounting hole spacing, length 163.0 mm Cable cross-section, input side 0.75…1.5 / 0.75…2.5 mm² Cable cross-section, output side 0.75…1.5 / 0.75…2.5 mm² Wire preparation length, input side 5.5…6.5 mm Wire preparation length, output side 5.5…6.5 mm Product weight 285.00 g Colors & materials Casing material Plastic Temperatures & operating conditions Ambient temperature range -15…+60 °C Maximum temperature at tc test point 75 °C Lifespan ECG lifetime 30000 h Additional product data Design / version With cable clamp Suitable for lamp power (1 lamp) 39 W Capabilities Max. cable length to lamp/LED module 1.5 m Overheating protection Power reduction and switch off at T > 75 °C at the tc point ECG reset time > 0.5 s Cable/wire types, input side NYM-J 3x1.5 / NYM-J 3x2.5 / H05VV-F 3x1.5 / NHXMH-J 3x1.5 mm² Cable/wire types, output side SIHF-J 3x1.5 / SIHF-J 3x2.5 / SIHSI 3x1.0 mm² Dimmable No Restriction on ignition time 20 min Suitable for fixtures with prot. class I Intended for no-load operation No Certificates & standards Approval marks – approval VDE / VDE-EMC / EAC / C-Tick Type of protection IP20 EEI – Energy Label A2 Standards Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62493 Logistical data Commodity code 850410809000 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 14-04-2022 Primary Article Identifier 4008321377661 Candidate List Substance 1 Lead CAS No. of substance 1 7439-92-1 Safe Use Instruction The identification of the Candidate List substance is sufficient to allow safe use of the article. Declaration No. in SCIP database debdcb03-c15a-4efc-b20c-4d88962b9a80 Packaging information EAN Unit Piece Dimension l x w x h Weight Volume 4008321377661 UNV  1 172mm x 83mm x 33mm 285.00g 0.47dm³ 4008321377678 VS  20 437mm x 100mm x 365mm 6130.00g 15.95dm³

Read more less

PT-FIT 70/220…240 S Product benefits Optimized cost/benefit factor Compact dimensions and low weight for small luminaire designs Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL) View all details Product data sheet

Read more less

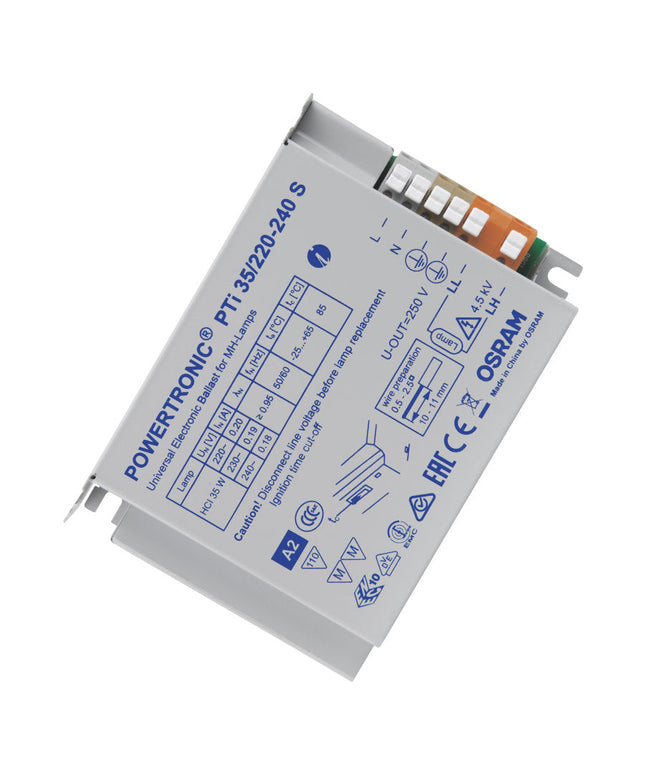

35w Powertronic Ballast - Osram - PTI35S - 4008321073112     Product family benefits Long reliable life at maximum permitted temperatures Compact dimensions and low weight for small luminaire designs Excellent thermal behavior for very high limit temperatures tc and ta Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL) Areas of application Shop lighting Health and fitness areas (in luminaires with protection class IP66 or higher) Effect and accent lighting Safety adviceBallast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point t of the ECG does not exceed the maximum value.Attention!For safety reasons disconnect the device before replacing the lamp!Any conductive material must have a minimum distance of 4 mm to the front of the terminal block.Installation by qualified electrician only.Terminals for protective earth not suitable for any through connection. Data sheet More downloads Technical Data Electrical data Lamp wattage 39 W Maximum output power 39 W Line current 0.19 A Ignition voltage 4.5 kVp Operating frequency 0.200…0.240 kHz System wattage 43.00 W Efficiency in full-load 91 % Input voltage AC 198…264 V Nominal voltage 220…240 V Mains frequency 50…60 Hz Power factor λ 0.95 Inrush current 30 A Max. ECG no. on circuit breaker 10 A (B) 15 Max. ECG no. on circuit breaker 16 A (B) 26 Max. no. of ECGs on 16A MCB with EBN-OS 65 Protective conductor current 0.25 mA U-OUT (working voltage) 250 V Max. working voltage between LH and LL 250 V Max. working voltage betw. LL/LH & earth 250 V Max. capacitance of wire ECG/lamp 120 pF Dimensions & weight Length 110.0 mm Width 75.0 mm Height 30.0 mm Mounting hole spacing, length 99.0 mm Mounting hole spacing, width 64.0 mm Cable cross-section, input side 0.5…2.5 mm² Cable cross-section, output side 0.5…2.5 mm² Wire preparation length, input side 10…11 mm Wire preparation length, output side 10…11 mm Product weight 250.00 g Colors & materials Casing material Metal Temperatures & operating conditions Ambient temperature range -25…+65 °C Maximum temperature at tc test point 85 °C Lifespan ECG lifetime 50000 h Additional product data Design / version Built-in unit Suitable for lamp power (1 lamp) 39 W Capabilities Max. cable length to lamp/LED module 1.5 m Overheating protection Power reduction and switch off at T > 85 °C at the tc point Overvoltage protection at 275…300 V 48 h Overvoltage protection at 300…320 V 2 h Overvoltage protection at 320…350 V 5 min ECG reset time > 0.5 s Dimmable No Restriction on ignition time 20 min Suitable for fixtures with prot. class I Intended for no-load operation No Certificates & standards Approval marks – approval ENEC 10 / VDE / VDE-EMC / EAC / C-Tick Type of protection IP20 EEI – Energy Label A2 Standards Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547 Logistical data Commodity code 850410809000 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 23-12-2021 Primary Article Identifier 4008321073112 Candidate List Substance 1 Lead CAS No. of substance 1 7439-92-1 Safe Use Instruction The identification of the Candidate List substance is sufficient to allow safe use of the article. Declaration No. in SCIP database 1329b7c2-4227-485b-9bbd-6cd13951be92 Packaging information EAN Unit Piece Dimension l x w x h Weight Volume 4008321073112 UNV  1 110mm x 75mm x 30mm 250.00g 0.25dm³ 4008321074522 VS  20 412mm x 136mm x 186mm 5169.89g 10.42dm³

Read more less

PureVOLT IUV-2S60-M4-LD This Philips electronic ballast runs the following lamps : Philips TUV 55W HO G55T8 Philips TUV 75W HO G75T8 Philips TUV PL-L 35W HO/4P Philips TUV PL-L 60W HO/4P Philips TUV PL-L 95W HO/4P Philips TUV 36 T5 HO 75W 4P-SE Detailed product description Advance Pure Volt IUV-2S60-M4-L The microprocessor controlled Advance PureVOLT electronic ballasts are specifically designed to operate a variety of germicidal lamps. PureVOLT ballasts operate the following low pressure mercury germicidal UV lamps:High OutputTwin Tube: (1 or 2) HO 35W or 60W; (1) HO 95WLinear: (1 or 2) 36T5HO (75W); (1) 64T5HO (145W) Standard OutputTwin Tube: (1 or 2) TUV 18 PL-L or 36 PL-L The Advance PureVOLT ballasts for UV lamps offer exclusive features such as IntelliVolt® technology (allowing the ballast to operate at any input voltage from 120 to 277 volts, 50/60 Hz), dual entry, color-coded connectors and lamp EOL protection.A powerful pair, the combination of germicidal lamps with an Advance PureVOLT ballast provides the appropriate level of UV-C energy to stop the spread of microorganisms, airborne contaminants, and pathogens, reducing the threat of illness andhelping to ensure a safer environment for building occupants. Other options TUV 55W HOTUV 75W HOTL 60W/10TL 80W/10 Product parameters Drivers for TUV Manufacturer Philips EAN 8727900783995 Product number 914499999001 Source type IUV-2S60-M4-LD Number of sources 1 or 2 Type UIV-2S60-M4-LD GPC code 914499999001 EOC code 872790078399500 Pieces in box 20ks Voltage 120-277 V Current 0,56 - 1,3 A Length 175 mm Height 34 mm Width 77 mm IP protection IP20 Dimmable No

Read more less
