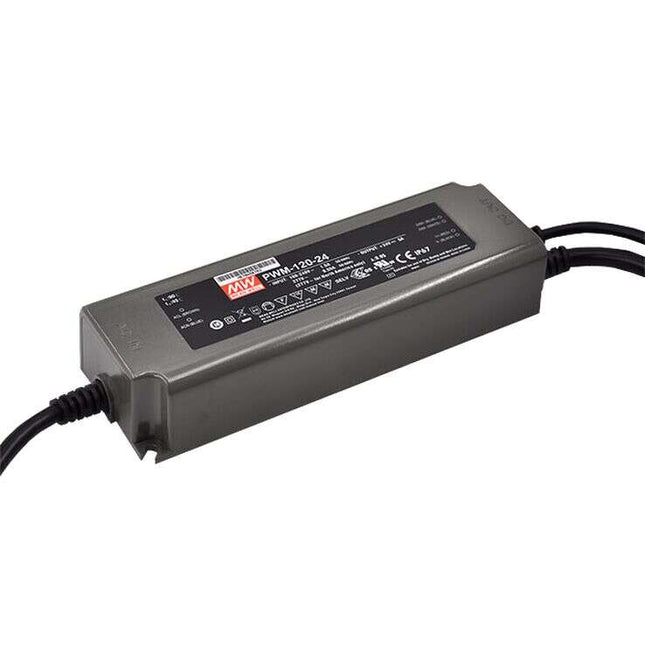

PWM-120-DA2 Series Features: PWM-120 DALI 2 series is a DALI Dimmable LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips. Fully compatible with both DALI2 and DALI. Features: Constant voltage PWM style output Emergency lighting application is available according to IEC61347-2-13 Built-in active PFC function and class II design No load power consumption <0.5W/standby power consumption <0.5W(DA/DA2-type) Fully encapsulated with IP67 level Function: 3 in 1 dimming (dim-to-off); DALI/DALI 2.0 Minimum dimming level 0.2% for DALI type Typical lifetime >50000 hours and 5 years warranty Spec PWM-120-12DA2 PWM-120-24DA2 Wattage 120 120 Input Voltage 90-305VAC, 127-431VDC 90-305VAC, 127-431VDC Output Current 10A 5A Output Voltage 12V 24V Dimensions 191*63*37.5mm 150x 53x 35 Working Temperature -40~+85°C

Read more less

PWM-60-DA2 Series Features: PWM-60 DALI 2 series is a DALI Dimmable LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips. Fully compatible with both DALI2 and DALI. Features: Constant voltage PWM style output Emergency lighting application is available according to IEC61347-2-13 Built-in active PFC function and class II/2 design No load power consumption <0.5W Fully encapsulated with IP67 level Function: 3 in 1 dimming (dim-to-off); DALI/DALI 2.0 Minimum dimming level 0.2% for DALI type Typical lifetime >50000 hours and 5 years warranty

Read more less

PX series DMX512/RDM decoder & driver. PX series adopt the advanced micro-computer control technology and converted the DMX512,RDM/2009 digital signal widely used in international to the PWM control signal. 1~4 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED. Technical:Output Channels 1-4 Output Voltage 12-24 VDC Output Current 8A*4CH Output Power 384W(12V) / 768W(24V) Input Voltage 12-24VDC Standy Loss <1W Control Signal DMX512 1990/RDM 2009 Dimensions 140x50x26mm

Read more less

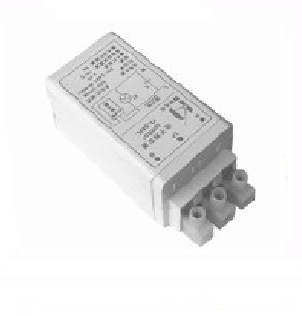

600-2000W 380-415v Ignitor - Venture PXE150485   Dimensions 106mm Length Width 49mm Height 50mm. Max lead 1 metre. 600-2000Watt Impulse Ignitor Volts :  380-440 Manufacturer :  Venture Lighting Technology :  Ignitor Length :  106 Item bin :  H053 Weee logo :  N Manufacturer code :  PXE150485 Download pdf :  Ignitor_PXE150485.pdf

Read more less

80W/125W Mercury Ballast

Read more less

echnical Specifications Accessory Type Ballast Wattage 50/80 W Manufacturer Vossloh Schwabe Dimming? Non-Dimmable Depth 66 mm Length 108 mm Type Control Gear Number of Lamps 1 Voltage 220-240 Volt Width 53 mm Control Gear Technology Discharge Manufacturers Part Number Q80/50.551

Read more less

echnical Specifications Accessory Type Ballast Wattage 50/80 W Manufacturer Vossloh Schwabe Dimming? Non-Dimmable Depth 66 mm Length 108 mm Type Control Gear Number of Lamps 1 Voltage 220-240 Volt Width 53 mm Control Gear Technology Discharge Manufacturers Part Number Q80/50.551

Read more less

This item is now obsolete  an alternative will be sent  This Osram QT-ECO 1x18-24/220-240 S is a non dimmable matchbox ballast to run: 1 x 24w T5 fluorescent tube 1 x 22w T5 Circular tube 1 x 15w or 18w T8 Fluorescent tube 1 x18w or 24w Double turn CFL's 1 x 18w or 24w DuluxW  F CFL's

Read more less

Data sheet Product family benefits Long lamp life No adverse effect from frequent on/off switching Automatic restart after lamp replacement Perfect lamp start for applications with motion sensors VDE/VDE EMC certified system Very high energy efficiency due to cut-off technology Areas of application Open-plan offices, corridors and storage rooms Public buildings Strip lighting Suitable for luminaires of protection class I Modernization of existing systems Technical Data Electrical data Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 198…264 V Maximum output power 2 x 35 W Efficiency in full-load 91 % Operating frequency 40…50 kHz Light technical data Starting time 2.0 s Dimensions & weight Length 280.0 mm Width 30.0 mm Height 21.0 mm Mounting hole spacing, length 270.0 mm Product weight 181.00 g Cable cross-section, output side 0.5…1.5 mm² Cable cross-section, input side 0.5…1.5 mm² Temperatures & operating conditions Ambient temperature range -15…+50 °C Permitted rel. humidity during operation 5…85 % Additional product data Suitable for lamp power (2 lamps) 14…35 W Capabilities End of lamp life safety shutdown EOL T.2 Suitable for emergency lighting No Suitable for fixtures with prot. class I Max. cable length to lamp/LED module 2.0 m / 1.0 m Dimmable No Intended for no-load operation No Certificates & standards Approval marks – approval VDE / ENEC 10 / VDE-EMC EEI – Energy Label A2 BAT Standards Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/IEC 61000-3-2/Acc. to EN 61547/IEC 61547 Type of protection IP20 Protection class I Logistical data Commodity code 850410809000 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 14-03-2023 Primary Article Identifier 4008321971258 Candidate List Substance 1 No declarable substances contained Declaration No. in SCIP database No declarable substances contained Packaging information EAN Unit Piece Dimension l x w x h Weight 4008321971258 UNV  1 280mm x 30mm x 21mm 181.00g 4008321971265 VS  20 303mm x 101mm x 159mm 3786.00g Downloads Data sheets Family data sheet Data sheet QUICKTRONIC QT FIT5 User instruction Size: 1.7 MB 502688_ECG lifetime - QUICKTRONIC non DIM Product Datasheet Size: 232.6 kB 342812_QT-FIT5 Product Datasheet Size: 279.9 kB 339586_VDE-Marks approval Certificates Size: 909.9 kB 339588_EMC-Marks approval Certificates Size: 977.1 kB 592319_EAC certificate for Quicktronics QT Certificates Size: 2.2 MB 683441_ENEC-Marks approvals Certificates Size: 642.2 kB QUICKTRONIC CE 3364256 190821 Declarations of conformity Size: 1.6 MB 339652_CAD QT-FIT5 3-DIM.x_t CAD data 3-dim Size: 294.1 kB 339657_CAD QT-FIT5 3-DIM.STEP CAD data 3-dim Size: 353.9 kB 339658_CAD QT-FIT5 3-DIM.IGS CAD data 3-dim Size: 511.9 kB 339600_CAD QT-FIT5 CAD data PDF Size: 173.7 kB QUICKTRONIC UK DoC 4314635 200821 Mandatory Publications Size: 116.3 kB

Read more less

Product family benefits Long lamp life No adverse effect from frequent on/off switching Automatic restart after lamp replacement Perfect lamp start for applications with motion sensors VDE/VDE EMC certified system Very high energy efficiency due to cut-off technology Areas of application Open-plan offices, corridors and storage rooms Public buildings Strip lighting Suitable for luminaires of protection class I Data sheet Technical Data Electrical data Input voltage AC 198…264 V Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 185…264 V Maximum output power 70 W Efficiency in full-load 91 % Operating frequency 40…50 kHz Max. ECG no. on circuit breaker 10 A (B) 17 Max. ECG no. on circuit breaker 16 A (B) 28 Inrush current 15 A Light technical data Starting time 2.0 s Dimensions & weight Length 280.0 mm Width 30.0 mm Height 28.0 mm Mounting hole spacing, length 270.0 mm Product weight 182.00 g Cable cross-section, output side 0.5…1.5 mm² Cable cross-section, input side 0.5…1.5 mm² Temperatures & operating conditions Ambient temperature range -15…+50 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 50000 h Additional product data Suitable for lamp power (1 lamp) 58…70 W Capabilities End of lamp life safety shutdown EOL T.2 Suitable for fixtures with prot. class I Intended for no-load operation No Max. cable length to lamp/LED module 2.0 m / 1.0 m Dimmable No Certificates & standards Approval marks – approval VDE / VDE-EMC / ENEC 10 / CE EEI – Energy Label A2 Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Type of protection IP20 Protection class I Logistical data Commodity code 850410809000 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 14-04-2022 Primary Article Identifier 4008321294227 Candidate List Substance 1 Lead CAS No. of substance 1 7439-92-1 Safe Use Instruction The identification of the Candidate List substance is sufficient to allow safe use of the article. Declaration No. in SCIP database 553f952c-32f6-4842-beaa-87800b1b86b1 Packaging information EAN Unit Piece Dimension l x w x h Weight 4008321294227 UNV  1 280mm x 30mm x 28mm 182.00g 4008321294234 VS  20 303mm x 132mm x 185mm 3853.00g Downloads Data sheets

Read more less

Osram QTi 1x35/49/80w Ballast Dimmable - Osram - QTI135DIM - 4050300870540 QUICKTRONIC INTELLIGENT DIM T5 Dimmable 1-10V. ECG for compact fluorescent lamps and T5 fluorescent lamps. Nominal voltage 220 - 240 VMains frequency 50 Hz/60 HzDC voltage 154…276 VOperating frequency 44…120 kHzStarting time 0.6 sLength 360 mmWidth 30 mmHeight 21 mmMounting hole spacing, length 350 mmWire preparation length, input side 8.0…9 mmWire preparation length, output side 8.0…9 mmAmbient temperature range –10…+50 °CDimming interface 1…10 VDimming range 1…100%Dimmable YesSuitable for fixtures with prot. class IEnd of lamp life safety shutdown EOL T.2Approval marks - approval VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCCEEI - Energy Label A1 BATStandards acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015: 2006 + A1: 2007/acc. to EN 61000 - 3-2/acc. to EN 61547

Read more less

 Data sheet Item details Manufacturer: OSRAM Item No.: 25476 GTIN: 4050300870670 Voltage (V): 220-240 Life Time (h): 100000 Dimmable: yes
