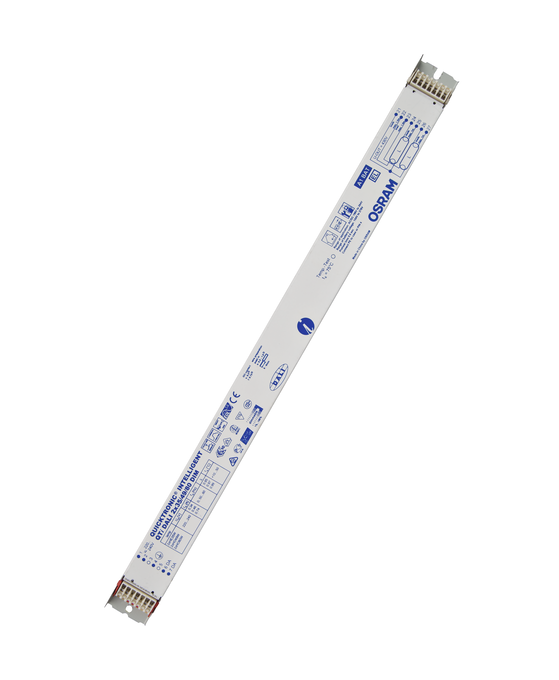

QTI 2X35/49/80 DALI DIM

Read more less

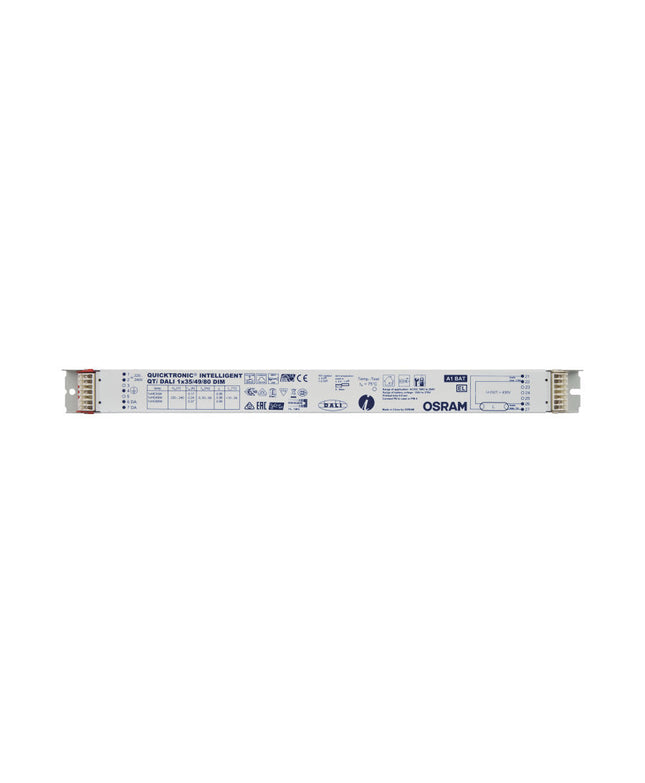

QTi Dali 1X35/49/80w Dim TL5 Ballast 4050300870342   Product family benefits System+ Guarantee available Easy integration in luminaire thanks to same dimensions like DALI GI ECG TouchDIM function for easy and inexpensive dimming of several ECGs Same luminous flux with direct and alternating current Dimming of amalgam lamps without flickering or reduced lifespan Automatic restart after lamp replacement DALI product features Control via the DALI interface Compliance with the DALI Version-1 and IEC 60929 Control input protected against overvoltage and polarity reversal (OSRAM ECG) Touch DIM and Touch DIM Sensor function Manual dimming without controller and with standard switches Including memory function (double click) and soft start Areas of application Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100 Installation in emergency lighting systems according to IEC 61347-2-3, appendix J Industry Open-plan offices, corridors and storage rooms Public buildings Sports halls and factories Strip lighting Shop lighting Suitable for luminaires of protection class I References / LinksFor more information on the system guarantee and the terms and conditions of the guarantee visit www.osram.com/system-guarantee Data sheet More downloads Technical Data Electrical data Input voltage AC 198…264 V Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 154…276 V Operating frequency 44…120 kHz Max. ECG no. on circuit breaker 10 A (B) 12 Max. ECG no. on circuit breaker 16 A (B) 19 Inrush current 28 A Light technical data Starting time 0.6 s Dimensions & weight Length 360.0 mm Width 30.0 mm Height 21.0 mm Mounting hole spacing, length 350.0 mm Product weight 278.00 g Cable cross-section, input side 0.5…1.5 / 0.5…1.0 mm² Cable cross-section, output side 0.5…1.5 / 0.5…1.0 mm² Temperatures & operating conditions Ambient temperature range +10…+50 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 100000 h Additional product data Suitable for lamp power (1 lamp) 35…80 W Capabilities Dimming interface DALI / Touch DIM / Touch DIM Sensor Dimming range 1…100 % Dimmable Yes Overheating protection Power reduction and switch off at T > 75 °C at the tc point Suitable for fixtures with prot. class I End of lamp life safety shutdown EOL T.2 Max. cable length to lamp/LED module 1.0 m / 1.5 m Certificates & standards Approval marks – approval VDE / VDE-EMC / EL / EAC / RCM / CCC Standards Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to IEC 62386-101:Ed1/Acc. to IEC 62386-102:Ed1 Protection class I EEI – Energy Label A1 BAT Type of protection IP20 Logistical data Commodity code 850410809000 Packaging information EAN Unit Piece Dimension l x w x h Weight Volume 4050300870342 UNV  1 360mm x 30mm x 21mm 278.00g 0.23dm³ 4050300870359 VS  20 392mm x 98mm x 165mm 5779.99g 6.34dm³

Read more less

Product family benefits System+ Guarantee available Easy integration in luminaire thanks to same dimensions like DALI GI ECG TouchDIM function for easy and inexpensive dimming of several ECGs Same luminous flux with direct and alternating current Dimming of amalgam lamps without flickering or reduced lifespan Automatic restart after lamp replacement DALI product features Control via the DALI interface Compliance with the DALI Version-1 and IEC 60929 Control input protected against overvoltage and polarity reversal (OSRAM ECG) Touch DIM and Touch DIM Sensor function Manual dimming without controller and with standard switches Including memory function (double click) and soft start Areas of application Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100 Installation in emergency lighting systems according to IEC 61347-2-3, appendix J Industry Open-plan offices, corridors and storage rooms Public buildings Sports halls and factories Strip lighting Shop lighting Suitable for luminaires of protection class I References / LinksFor more information on the system guarantee and the terms and conditions of the guarantee visit www.osram.com/system-guarantee Data sheet More downloads Technical Data Electrical data Input voltage AC 198…264 V Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 154…276 V Maximum output power 54 W Efficiency in full-load 92 % Operating frequency 44…120 kHz Max. ECG no. on circuit breaker 10 A (B) 17 Max. ECG no. on circuit breaker 16 A (B) 28 Inrush current 24 A Light technical data Starting time 0.6 s Dimensions & weight Length 360.0 mm Width 30.0 mm Height 21.0 mm Mounting hole spacing, length 350.0 mm Product weight 270.00 g Cable cross-section, output side 0.5…1.5 / 0.5…1.0 mm² Cable cross-section, input side 0.5…1.5 / 0.5…1.0 mm² Temperatures & operating conditions Ambient temperature range +10…+50 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 100000 h Additional product data Suitable for lamp power (1 lamp) 28…54 W Capabilities Dimming interface DALI / Touch DIM / Touch DIM Sensor Dimming range 1…100 % Dimmable Yes Overheating protection Power reduction and switch off at T > 75 °C at the tc point Suitable for fixtures with prot. class I End of lamp life safety shutdown EOL T.2 Intended for no-load operation No Max. cable length to lamp/LED module 1.0 m / 1.5 m Certificates & standards Approval marks – approval VDE / VDE-EMC / EL / EAC / RCM / CCC Standards Acc. to EN 55015; EN 55022/Acc. to EN 61547/Acc. to IEC 61000-3-2/EN 61000-3-2/Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to IEC 62386-101:Ed1/Acc. to IEC 62386-102:Ed1 Protection class I Type of protection IP20 EEI – Energy Label A1 BAT Logistical data Commodity code 850410809000 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 14-04-2022 Primary Article Identifier 4050300870809 Candidate List Substance 1 Lead CAS No. of substance 1 7439-92-1 Safe Use Instruction The identification of the Candidate List substance is sufficient to allow safe use of the article. Declaration No. in SCIP database e3bb252d-4962-4b8e-bccd-cfc5cb474662 Packaging information EAN Unit Piece Dimension l x w x h Weight Volume 4050300870809 UNV  1 360mm x 30mm x 21mm 270.00g 0.23dm³ 4050300870816 VS  20 392mm x 98mm x 165mm 5579.99g 6.34dm³

Read more less

Product features− Corridor function for direct connection of ECG to common motion sensor− Corridor function with pre-programmed light program− Touch DIM function for free parameterization of light value and turn on time− Fit for SMART GRID for feedback of consumed mains power and lamp operating hours− Fit for emergency function for automatic detection of emergency lighting by ECG− Very low standby power consumption: < 0.5 W− Lifetime: > 100,000 h (for T = 65 °C at Tc)− Very high number of switching cycles: up to 300,000− Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)− POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifeti

Read more less

The Osram QTi DALI-T/E 1x18-57/220-240 DIM is a dali  ballast to run 1 x 18w, 26w, 32w, 42w or 57w triple turn compact fluorescent lamp. These ballasts have an average life of 100,000 hours, offer flicker free light, have an automatic safety shutdown at lamp failure, automatic restart after lamp replacement and are suitable for emergency lighting.

Read more less

The Osram QTP-OPTIMAL 1x54-58 is a Multiwatt non dimmable high frequency ballast to run 1 X 55w PL-L, 54W T5 TUBE AND 58W T8 TUBE. Product family benefits Long lamp life No adverse effect from frequent on/off switching Automatic restart after lamp replacement Perfect lamp start for applications with motion sensors VDE/VDE EMC certified system Very high energy efficiency due to cut-off technology Areas of application Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100 Industry Open-plan offices, corridors and storage rooms Public buildings Sports halls and factories Strip lighting Suitable for emergency lighting (DC operation) Modernization of existing systems Suitable for luminaires of protection classes I and II Data Sheet Product Data Sheet

Read more less

Product family benefits Long lamp life No adverse effect from frequent on/off switching Automatic restart after lamp replacement Perfect lamp start for applications with motion sensors VDE/VDE EMC certified system Very high energy efficiency due to cut-off technology Areas of application Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100 Industry Open-plan offices, corridors and storage rooms Public buildings Sports halls and factories Strip lighting Suitable for emergency lighting (DC operation) Modernization of existing systems Suitable for luminaires of protection classes I and II Data sheet Technical Data Electrical data Input voltage AC 198…264 V Nominal voltage 220…240 V Mains frequency 50…60 Hz Input voltage DC 176…276 V Maximum output power 2 x 58 W Efficiency in full-load 95 % Operating frequency 40…50 kHz Max. ECG no. on circuit breaker 10 A (B) 8 Max. ECG no. on circuit breaker 16 A (B) 13 Inrush current 57 A Light technical data Starting time 1.5 s Dimensions & weight Length 360.0 mm Width 30.0 mm Height 21.0 mm Mounting hole spacing, length 350.0 mm Product weight 239.90 g Temperatures & operating conditions Ambient temperature range -20…+50 °C Permitted rel. humidity during operation 5…85 % Lifespan ECG lifetime 100000 h Additional product data Suitable for lamp power (2 lamps) 54…58 W Capabilities End of lamp life safety shutdown EOL T.2 Suitable for emergency lighting Yes Suitable for fixtures with prot. class I / II Max. cable length to lamp/LED module 2.0 m / 1.0 m Dimmable No Intended for no-load operation No Certificates & standards Approval marks – approval EL / VDE / ENEC 10 / VDE-EMC EEI – Energy Label A2 BAT Standards Acc. to IEC 61347-2-3 / App. J/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/Acc. to EN 61547 Protection class I Type of protection IP20 Logistical data Commodity code 850410809000 Environmental information Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh) Date of Declaration 09-05-2023 Primary Article Identifier 4008321880253 Candidate List Substance 1 Lead CAS No. of substance 1 7439-92-1 Safe Use Instruction The identification of the Candidate List substance is sufficient to allow safe use of the article. Declaration No. in SCIP database 468ab4ad-3f05-4ad7-82c1-f1d295e95904 Packaging information EAN Unit Piece Dimension l x w x h Weight 4008321880253 UNV  1 253.00g 4008321880260 VS  20 385mm x 160mm x 100mm 5016.00g Downloads Data sheets Family data sheet Data sheet QUICKTRONIC QTP OPTIMAL User instruction Size: 2.3 MB 502689_Frequent switching Quicktronic Addon Technical Information Size: 60.4 kB 502688_ECG lifetime - QUICKTRONIC non DIM Product Datasheet Size: 232.6 kB 592319_EAC certificate for Quicktronics QT Certificates Size: 2.2 MB 349650_QTP-OPTIMAL VDE Certificate Certificates Size: 657.4 kB 346505_ENEC QTP-Optimal Certificates Size: 678.1 kB 346506_EMC QTP-Optimal Certificates Size: 634.1 kB 346512_CE QTP-Optimal Certificates Size: 285.9 kB QUICKTRONIC CE 3364256 190821 Declarations of conformity Size: 1.6 MB QUICKTRONIC UK DoC 4314635 200821 Mandatory Publications Size: 116.3 kB

Read more less

Osram Quicktronic intelligent dimmable ballast. Which has 1...10Volts interface for T8 fluorescent tubes. Dimming range 100% to 1%. QTI 2X58Watts 220-240 Volts Dim.EAN Number: 4050300870731.Osram Order Code: QN258D Lamp Cap/Base: N/A Colours: N/A Volts: 220 - 240 v Watts: 2x58 w Length: 423 mm Average Life: N/A Bulb/Lamp Type: Ballast Height: 21 mm Width: 30 mm Fix Centre: N/A

Read more less

RBF/55/3W/M3/LFP

Read more less

RBF/55/M3-T

Read more less

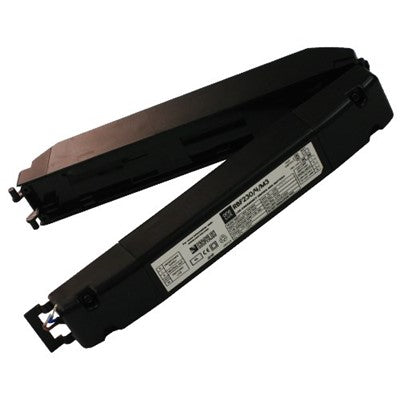

BF230/4/M3 is an effective solution for emergency conversion of luminaires using 230V LED lamps and arrays such as GU10s and linear tubes. The compact, articulated design contains an emergency driver with a re-chargeable battery and allows installation through a ceiling cut-out of just 55mm. The removable end covers provide easy access for wiring or they can be supplied pre-wired with your custom cable assemblies for simple ‘plug-and-play’ convenience if required.The constant-power driver technology automatically adjusts to operate many available 230V LED lamps at an optimum power throughout the whole emergency duration. It has a built-in lampchange-over relay, which allows the product to be used for Maintained applications so making it easy to produce an emergency conversion of your existing LED luminaire* without the need forseparate ‘emergency’ LEDs.   Features• Ideal for use with 230V LED GU10s, linear tubes, down lights etc.*• 3 hour operation using 4 x Nickel Metal Hydride (NiMH) hightemperature cells.• Emergency output power (Typical): 4W for 4 cell version.• Higher power versions also available on request.• Green charge indicator LED with 750mm leads and bezel• Molded in black UL94_V0 rated Polycarbonate.• Driver complies with: EN61347-1, EN61347-2-7, EN55015,EN61000-3-2, EN61547• C o nforms to EN60598-1 & EN60598-2-22• Custom plug & socket connections available on request   Product Details Order Code 81109 Brand One-LUX Voltage 70-250v Wattage 3w Overall Length 510 mm Width 38 mm Height 40 mm Battery Required 4.8v - 4 Cell NiMH Manufacturers Code RBF230/4/M3 Manufacturers Description OMNI-LED FLEXI 230V More Product Details For emergency conversion of 230V LED GU10’s, linear tubes, down lights etc. More Product Details Articulated design allows installation through a ceiling cut-out of just 55mm diameter More Product Details Removable end covers provide easy wiring access

Read more less

Product descriptionOmni-LED FLEXITM is an effective solution for emergencyconversion of luminaires using LED arrays. The compact, robusthousing is supplied containing our Omni-LEDTM emergency driver,re-chargeable battery and connection terminals. Removableend covers provide easy access for wiring and its articulateddesign allows installation through a ceiling cut-out of just55mm diameter. This product offers an emergency solution fora wide range of applications and can be used with a separatemains driver for Maintained applications. It is also availablepre-wired with cable assemblies for simple ‘plug-and-play’convenience.Omni-LEDTM constant-power driver technology will run LEDlamps or arrays from 9V – 200V, so making it easy to produce anemergency version of your existing LED luminaire* without theneed for separate ‘emergency’ LEDs or connectors.
