Obsolete , you will be sent the below
https://www.easy-controlgear.com/products/tridonic-pc126basicsl-tr-1x26-tcd-1-x-26w-tct-slim-basic-ballast?_pos=2&_sid=a8b496c0b&_ss=r
Tridonic PC128DDPRO Electronic HF ballast to run 1 x 28w Compact DD lamps
The Tridonic PCA 1x58 T8 ECO lp xitec II is a dimmable high-frequency ballast to run: 1 x 58 Watt 2ft fluorescent tube.
Tridonic article number: 28000037
Processor-controlled ballast with xitec II inside
Highest possible energy class CELMA EEI = A1 BAT
Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION
Nominal lifetime up to 100,000 h (at ta 50 °C with a failure rate ? 0.2 % per 1,000 h)
Multilamp management
OEM-specific reserved memory areas
5-year guarantee

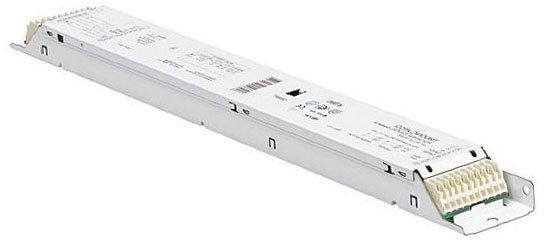

Digital Dimming Ballast to run 2 X 14/24w T5 tubes - PCA 2x14/24 T5 ECO - 22185095
Product Details
Processor-Controlled Electronic Ballast with xitec II inside and highest possible energy class CELMA EEI A1 BAT. Ballast offers noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION as well as Multilamp management. Intelligent temperature guard, intelligent voltage guard, optimum filament heating in any dimmer setting. It features disconnection of filament heating from a dimming level of approximately 90% for maximum energy efficiency corridorFUNCTION with ambient light control, automatically triggered emergency lighting value in DC mode 15%, for emergency lighting systems as per EN 50172, automatic start after replacement of defective lamps and automatic shutdown if the lamp is faulty.
· Dimming capability (1-100% range)
· Rated lifespan: 100,000 hours
· Flicker free warm start
· Min/Max ambient working temperature: -25°C to 70°C
· Degree of protection: IP20
· Operating voltage: 198-264V (AC), 176-280V (DC)
· Dimensions: 360x30x21mm (LxWxH)
· CE Approved
Technical Specifications
Ballast
Model
Electronic
Suitable for number of lamps
2
Nominal voltage
220 - 240 V
Suitable for lamp power
14 W
Width
30 mm
Height
21 mm
Length
360 mm
Suitable for lamp type
T5
Dimming Type
DALI
Dimmable
Yes
obsolete , as long as you are using the dali feature please order the below
DALI Alternative
The Tridonic PCA 2x26/32/42 TC ECO is a high frequency dimmable ballast to run: 2 x 26w Double Turn Compact Fluorescent Lamps 2 x 26w Triple Turn Compact Fluorescent Lamps 2 x 32w Triple Turn Compact Fluorescent Lamps 2 x 42w Triple Compact Fluorescent Lamps Tridonic part number: 22185121
For spotlights and downlights
TIM variants for easy and fast assembly
For operating with SELV Driver suitable
Excellent thermal management by COB technology
Uniform radiation with Dam&Fill technology
Integrated LED module
Cooling required
Flexible operating mode
Long lifetime: 60,000 hours
5 years guarantee
ZRM 4.5-ES/C
A standard non-dimmable 35-400 Watt Standard Pulse Ignitor from Tridonic for Metal Halide and Sodium Lamps that do not feature an internal starter. An integrated digital three-start counter stops the ignition process after three unsuccessful lamp starts thereby avoiding overloading the control gear with high-voltage pulses.
Technical Specifications
Control Gear Type
Ignitor
Manufacturer
Tridonic
Dimming?
Non-Dimmable
No. Of Lamps
Single (1x)
Height
27 mm
Lamp
HPS: 100-400w
Length
85 mm
Striking Distance (m)
4
Type
Control Gear
Width
38 mm
Manufacturers Part Number
87500082
