Product description_ LED Constant current LED driver for luminaire installation_ For class I luminaires_ Temperature protection as per EN 61347-2-13 C5e_ Selectable fixed output current 200, 250, 300 and 350 mA (preselected current 350 mA)_ Max. output power 61.25 W_ Up to 93 % efficiency_ Nominal lifetime up to 50,000 h_ 5 years guarantee (conditions athttps://www.tridonic.com/en/int/services/manufacturerguarantee-conditions)Housing properties_ Casing: metal, white_ Type of protection IP20Functions_ Overload protection_ Short-circuit protection_ No-load protection

Read more less

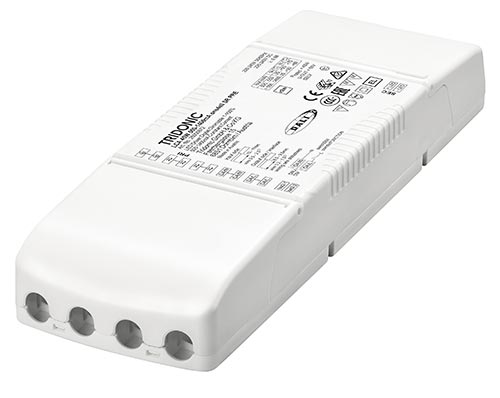

Driver LCA 45W 500–1400mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED Driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Output current adjustable between 500 – 1,400 mA Max. output power 45 W Up to 90 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications

Read more less

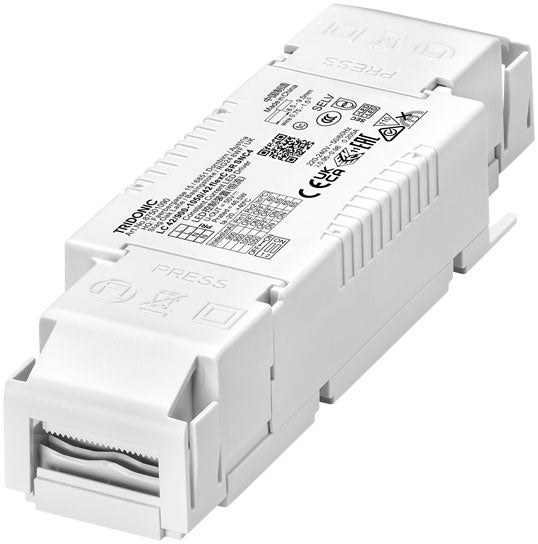

87501090 LC 42/900-1050/42 flexC SR SNC4 Product description Independent fixed output LED driver For luminaires of protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Selectable fixed output current 900, 950, 1,000 and 1,050 mA (pre-selected current 900 mA) Max. output power 42 W Up to 91 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

Read more less

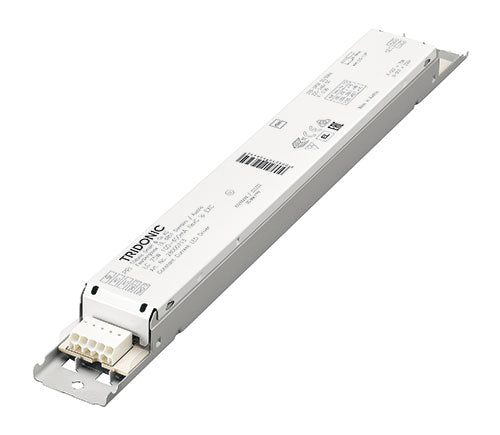

Driver LC 75W 100–400mA flexC lp EXC excite series non-SELV Product description Constant current LED Driver for luminaire installation For luminaires of protection class I and protection class II Adjustable output current between 100 and 400 mA via ready2mains Programmer or I-SELECT 2 plugs Max. output power 75 W Up to 94 % efficiency Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Low profile metal casing with white cover Type of protection IP20 Interfaces ready2mains (configuration via mains) Terminal blocks: 0° push terminals Functions Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2) Protective features (overtemperature, short-circuit, overload, no-load, input voltage range) Suitable for emergency escape lighting systems acc. to EN 50172 Benefits Application-oriented operating window for maximum compatibility Best energy savings due to high efficiency Flexible configuration via ready2mains and I-SELECT 2 Reliability proven by lifetime up to 100,000 h and 5 years guarantee Typical applications For linear/area lighting in office applications

Read more less

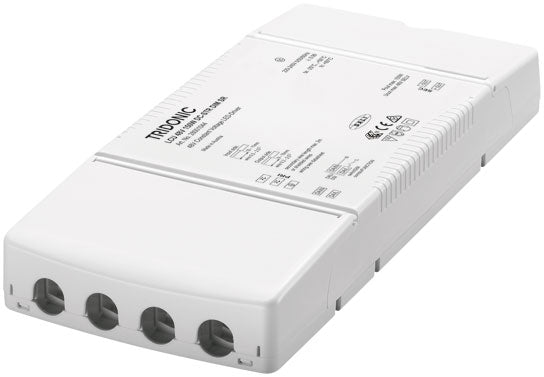

  28001233 LCU 48V 75W DC-STR DIM SR   Product description Independent dimmable DC-String constant voltage LED driver Compatible with other DC-String components DALI bridge with DC powerline communication (PLC) one4all interface (corridorFUNCTION, switchDIM, DALI, DSI) Max. output power 75 W Up to 91 % efficiency Nominal lifetime up to 50,000 h For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

Read more less

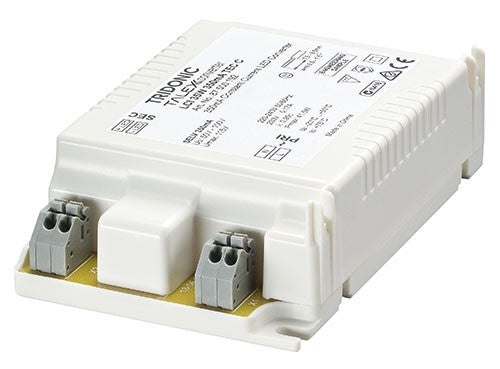

The Tridonic LCI 35w 1050mA TEC C LED driver is a fixed output, constant current LED driver with a maximum output power of 35w. These drivers have an average life of 50,000 hours and a 5 year guarantee. The LCI 35w 1050ma TEC has over temperature and overload protection, as well as short circuit and no-load protection. Tridonic article number: 87500198

Read more less

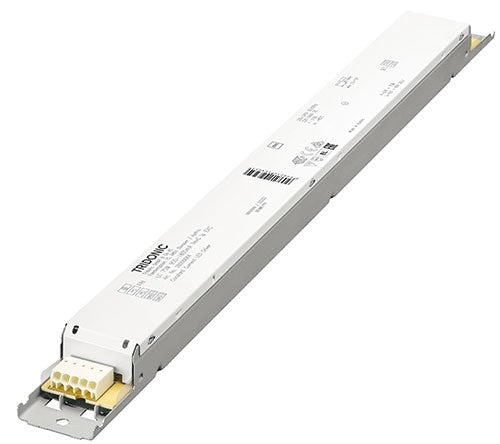

The Tridonic LC 25W 500mA LED Driver is a fixed output, constant current LED driver with a maximum output power of 25w. These drivers have an average life of 100,000 hours and a 5 year guarantee. . Tridonic article number: 28000679

Read more less

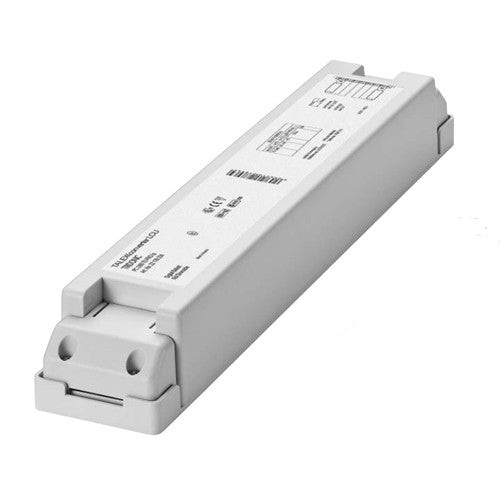

The Tridonic LCU 100/12 EO20 is a 100w 12v constant voltage LED driver with a universal input voltage range and a constant output voltage. This driver has an over temperature and overload protection, short circuit shutdown feature and automatic restart. This driver has a 5 year warranty. Tridonic article number: 24166327

Read more less

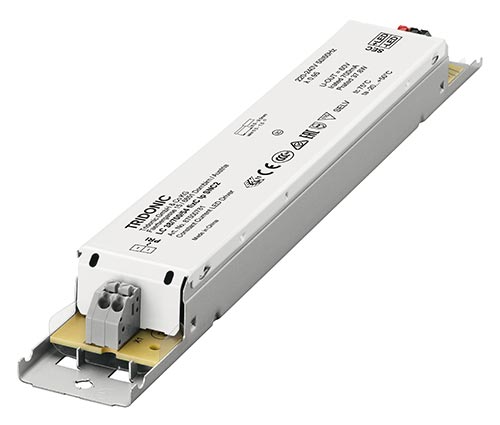

Obsolete , please order the successor below   Alternative  Driver LC 38W 700mA fixC lp SNC2 essence series SELV Product description Fixed output built-in LED driver Constant current LED driver For luminaires of protection class I and protection class II Temperature protection as per EN 61347-2-13 C5e Output current 700 mA Max. output power 37.8 W Up to 86 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: metal, white Type of protection IP20 Functions Overload protection Short-circuit protection No-load protection

Read more less

Please select the MA rating you will be running it at and we will include the correct resistor   Product description Independent fixed output LED driver For luminaires of protection class I and protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Adjustable output current between 700, 900 and 1,050 mA Max. output power 42 W Up to 88 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces Input terminals: 0° screw terminals Output terminals: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Burst protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For spot light and downlight in retail and hospitality applications For panel light and area light in office and education application

Read more less

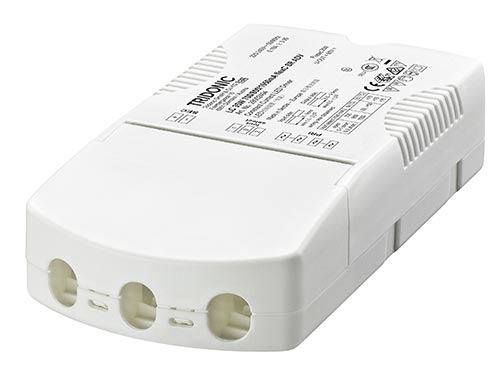

Product description Independent fixed output LED driver For luminaires of protection class I and protection class II For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 Temperature protection as per EN 61347-2-13 C5e Adjustable output current between 700, 800 and 1,050 mA Max. output power 35 W Up to 87.5 % efficiency Nominal lifetime up to 50,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Interfaces Input terminals: 0° screw terminals Output terminals: 45° push terminals Functions Overload protection Short-circuit protection No-load protection Overtemperature protection Burst protection voltage 1 kV Burst protection voltage 1 kV (L to N) Surge protection voltage 2 kV (L/N to earth) Typical applications For spot light and downlight in retail and hospitality applications For panel light and area light in office and education application

Read more less

Driver LCA 45W 500–1400mA one4all SR PRE premium series Product description NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) Independent dimmable constant current LED Driver with strain-relief Dimmable via DALI / DALI-2 Dimming range 1 – 100 % (whole operating window) Output current adjustable between 500 – 1,400 mA Max. output power 45 W Up to 90 % efficiency Power input on stand-by < 0.15 W Nominal lifetime up to 100,000 h 5 years guarantee Housing properties Casing: polycarbonate, white Type of protection IP20 Strain relief with loop through function Interfaces one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION) ready2mains (configuration and dimming via mains) Terminal blocks: 0° / 45° push terminals (input / output) Functions Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2) Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance) Constant light output function (CLO) Power-up fading at AC Configurable via ready2mains Switch off the Driver with fade2zero Service monitor to log certain events Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification) Suitable for emergency escape lighting systems acc. to EN 50172 For cable cross-sections up to 2.5 mm² Benefits Application-oriented operating window for maximum compatibility Best energy savings due to low stand-by losses and high efficiency Flexible configuration via DALI, ready2mains and I-SELECT 2 No tools required for installation Typical applications For downlight, spotlight and decorative applications
