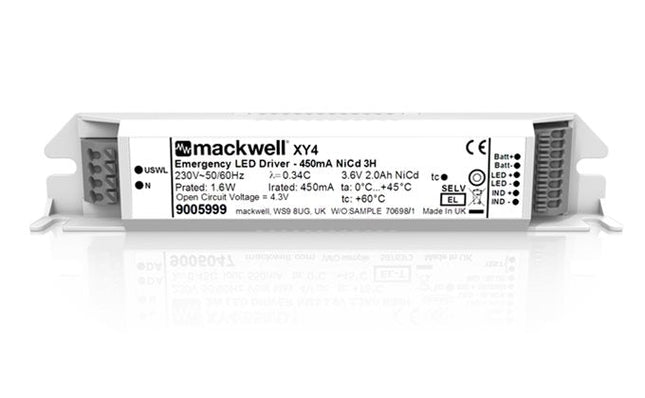

Mackwell XY4 AutoTest 550MA   Emergency LED Driver The ELEDD XY4 is a non-maintained emergency conversion module, consisting of a battery charger with short circuit protection and a constant current driver for operation of a single high power LED.The module has reinforced insulation between the supply and battery circuit and incorporates deep discharge protection circuitry to protect the batteries.Mackwell has a range of LED lamp heads that can be used with this driver, which are available separately or as part of an LED Conversion Kit.  Batteries to suit   https://www.easy-controlgear.com/products/mackwell-b952-3-cell-2-2ah-3-6v-ni-mh-stick-battery-pack?_pos=1&_sid=1bc7c4dbf&_ss=r

Read more less

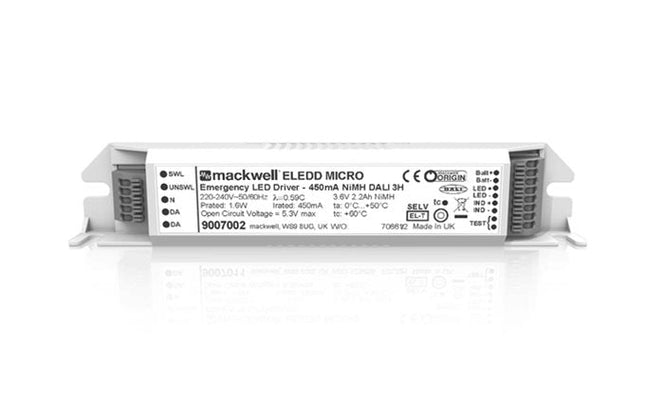

Product Overview Compact Micro Controlled Emergency LED Driver The ELEDD MICRO is a range of micro-processor controlled emergency drivers with Mackwell’s unique Origin technology platform at its core. It provides fully compliant DALI AutoTest functionality and enables a variety of emergency solutions including directly driving emergency luminaires and integral conversions.The Origin technology within the ELEDD MICRO system enables the driver to be pre-configured to suit defined applications. This includes the ability to be given specific charge and discharge properties prior to shipment allowing perfect harmony of the control gear, battery and LED load.Intelligent battery management is integral to the design, allowing optimum efficiency of batteries and prolonging life in high temperature applications. Key Features Multiple output variants Origin technology platform Intelligent battery protection Diagnostics Stabilised output current DALI functionality option Compact size Excellent EMC performance Low power consumption BSI & Kitemark approved

Read more less

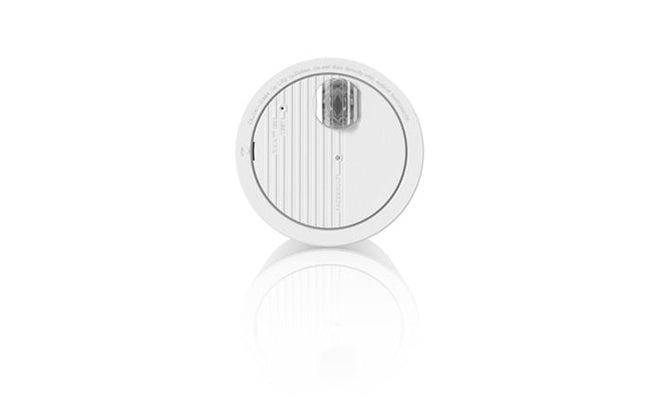

Product Overview Self-Contained LED Emergency Luminaire for Surface Mount or Recessed Applications The XYLUX LD5 is a high performance self-contained LED emergency luminaire supplied with two snap-in optics for Open-Area and Escape Route distribution. XYLUX LD5 LED luminaire incorporates a LED module, a 3.6V 1.7Ah NiMH battery pack and a deep discharge protection circuit.   XYLUX LD5 with DALI in White The unit can be surface mounted or recessed into a 105mm – 110mm cut out using mounting brackets provided. XYLUX LD5 offers an efficient alternative to the 8W fluorescent bulkhead. Specifications Supply voltage230 V Supply frequency50/60 Hz Supply current (max)35 mA Power factor0.44 Total circuit power (max)3.4 W Total circuit power (nominal)0.9 W Battery charge current100 mA Ambient temperature (ta)0°C to +35°C Protection classClass II Conductor size2.5mm² max Key Features Snap-in optical lenses for both Open-Area and Escape Route applications Suitable for surface mount or recessed installation Various technology options available Integral charge indicator Integral test switch In-built reflector design achieves efficient output SmartChargeTM technology 3 hours emergency duration Incorporates a 3-cell NiMH battery pack Available in black or white Designed and manufactured in the UK Emergency duration3 hours Recharge period24 hours Lumen output145 lm IP ratingIP40 CCT>6300 K Weight of luminaire246 g Features SmartCharge™SmartCharge™ applies an intermittent charging duty cycle designed for use with NiMH batteries. This provides energy efficient charging maintenance, reduced operating temperatures and optimum service life of NiMH batteries. Technology Options StandardFor applications where self-testing is not required or suitable, the non-AutoTest® option provides the same quality and performance expected of Mackwell products, without the AutoTest® feature.DALI AutoTest®Provides benefits by enabling testing and monitoring of an emergency lighting system either on-site or via an internet connection. DALI AutoTest® is ideal for monitoring larger buildings and multiple sites. The product defaults to standalone AutoTest when not connected to a DALI network. Relevant Standards EN 60598-2-22 BS 5266-1 EN 62034 EN 62386 EN 62031 EN 62471 Batteries The luminaire includes a rechargeable 3.6V 1.7Ah NiMH battery pack for 3 hours operation.

Read more less

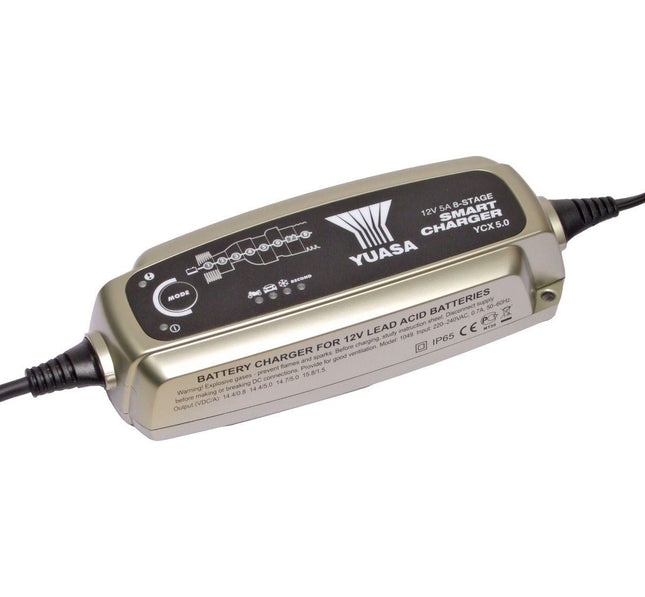

The New Version YCX6 will be sent    Voltage12VLength (mm)230Width (mm)118Height (mm)115Weight (kg)1.3Static Datasheet locationYuasa_YCX_Charger_Manual_YCX6_YCX12_v3.pdf Fully automatic 9 stage charging and maintenance process refined by GS Yuasa engineers for unrivalled battery care. Developed using GS Yuasa’s world leading battery manufacturing expertise to extend battery life, maintain performance and provide ultimate reliability. Trade rated charger trusted and widely used by workshops and technicians. Self-activating maintenance mode sustains optimum state of charge during battery storage. Charges batteries faster thanks to a higher power output than comparable models. Optimum charging performance for lead acid conventional, Start-Stop, EFB, AGM, lithium and gel battery types. Charge and maintain 12V batteries, even from flat. Charge up to 120Ah and maintain up to 180Ah. Automatic battery diagnosis with patented rejuvenation phase to break down sulphation. Detects and communicates charging faults caused by battery problems. The only vehicle battery charger you will ever need, with selectable power output levels to cover the widest range of battery capacities. Automatic maintenance with power saving eco mode sustains optimum state of charge during battery storage. Enhanced safety features, including short circuit, overcharging and reverse polarity protection for ultimate peace of mind.* Durable splashproof (IP44) construction with robust integrated clamp and eyelet connectors. Easy to use with simple navigation buttons and clear LED indicators. *Power supply mode does not offer reverse polarity protection       Yuasa Smart Chargers give your battery a longer and more powerful life. Advanced, Fully automatic charging in 8 stages. 12v 5.0A 6-Stage Smart Charger YCX5.0 -Safe and easy to use -Connect and forget -Unique 8-stage charging Included : Cable connector - Crocadile clip lead Cable connector - Eyelet lead Input Voltage : 220-240VAC, 50-60Hz - 3 pin UK plug Charging Voltage : 14.4VDC Charging Current : 0.8A/5.0A MAX Ambient Temprature : -20 degrees C to + 50 degrees C Type of charger : 8-Stage fully automatic charging Type of Battery charged : 12v Lead Acid Batteries - Wet / GEL / AGM / Ca/Ca Recommended Battery Size: Charging : 1.2Ah - 110Ah Batteries Maintenance charging : 1.2 - 160Ah batteries Designed for saftey Does not damage sensitive electronics Spark proof, reverse-polarity protection and short circuit proof. Uniquie 8-Stage Charging program 1 - Desulphation 2 - Soft Start 3- Bulk 4 - Absorption - Ready to use 5 - Analyse 6 - Recond 7 - Float - Fully charged 8 - Pulse - Maintenance charging

Read more less

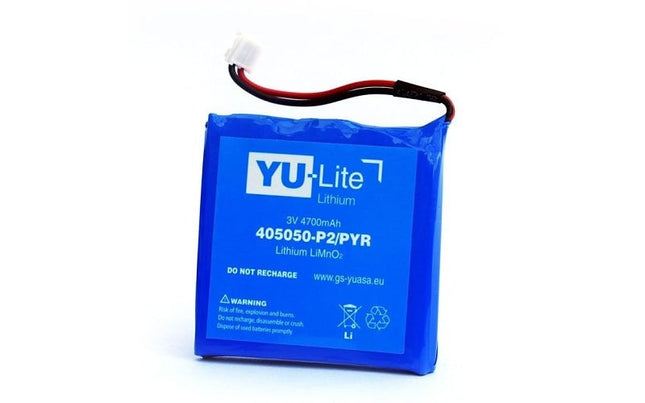

Please note these are sold as TWIN Packs only, Ordering this you will receive two of the batteries  This is a replacement for the Pyronix Enforcer Battery for Ledrkp-We. TECHNICAL SPECIFICATION Brand YU-Lite Voltage 3 Volts Technology Lithium Capacity 4.7 Ah Length 48 mm Width 50 mm Height inc. terms 9 mm Guarantee 1 Year 3.0V 4700Mah

Read more less

ER1AA3-6-YUASA(14505)LITHIUM BATT AA 3.6V 2.4AHYuasa batteries have a slower self-discharge rate and a longer life which means they out perform other batteries.

Read more less

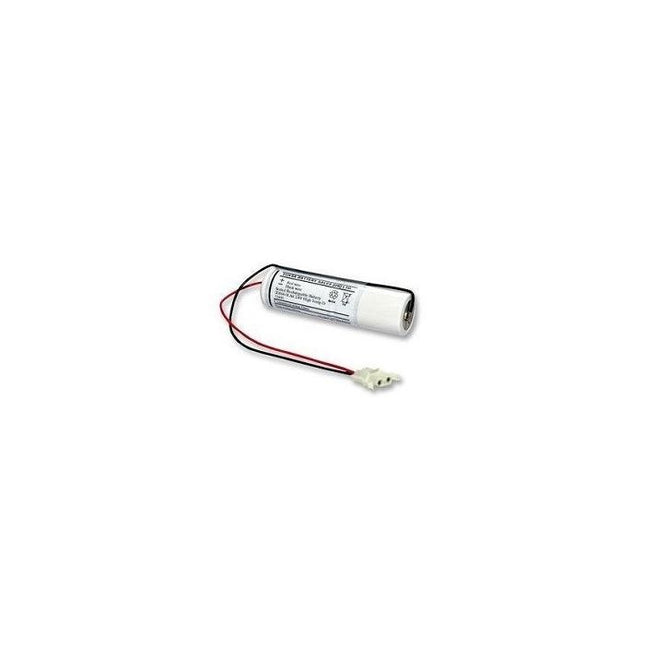

Brand : Yuasa Model : 2DH4-0LA4 Voltage : 2.4v Capacity : 4.0ah Weight : 270g Dimensions : 32.3 mm Diameter x 118 mm Long Yuasa 2DH4-0LA4 supplied with end caps 2.4v 4.0Ah Ni-Cd battery for use in emergency lighting. Terminals : Red and black flying leads around 300 mm long with AMP plug (+ Pin 1, - Pin 2) Battery Type: High temperature nickel-cadmium battery (Ni-Cd) for use in emergency lighting. --------------------------------------------- YUASA BATTERY SALES(UK) LTD + Red wire - Black wire Sealed Rechargeable Battery KRMT33/62 2DH4-0LA4 2.4v High Temp D CD ---------------------------------------------; Brand : Yuasa Model : 2DH4-0LA4 Voltage : 2.4v Capacity : 4.0ah Weight : 270g Dimensions : 32.3 mm Diameter x 118 mm Long; Yuasa 2DH4-0LA4 supplied with end caps 2.4v 4.0Ah Ni-Cd battery for use in emergency lighting.; Terminals : Red and black flying leads around 300 mm long with AMP plug (+ Pin 1, - Pin 2); Battery Type: High temperature nickel-cadmium battery (Ni-Cd) for use in emergency lighting.; --------------------------------------------- YUASA BATTERY SALES(UK) LTD + Red wire - Black wire Sealed Rechargeable Battery KRMT33/62 2DH4-0LA4 2.4v High Temp D CD ---------------------------------------------

Read more less

You are viewing the Yuasa 2DH4-0LAP3. 2.4v D cell, nickel-cadmium rechargeable 2 cell side by side battery for use with emergency lighting applications.  This battery has a capacity of 4ah and comes with flying leads, amp plug, and a backplate.  The dimensions of the Yuasa emergency battery are (LxWxH) 65mm x 32.3mm x 60mm.  Please note that  Ni-Cd batteries are supplied with a residual charge and should be charged at the continuous charge rate before use. The Yuasa part number: 2DH4-0LAP3.

Read more less

You are viewing the Yuasa 3.6v D cell, nickel cadmium rechargeable 3 cell side by side battery for use with emergency lighting applications. This battery has a capacity of 4ah and comes with flying leads. The dimensions of the Yuasa emergency battery are 62mm x 97.5mm x 32.5mm. Please note that Ni-Cd batteries are supplied with a residual charge and should be charged at the continuous charge rate before use. The Yuasa part number: 3DH4-0L3.

Read more less

3DH4-0L4B YUASA NICAD 3.6V 4AH H/T LEAD You are viewing the Yuasa 3.6v D cell, nickel cadmium rechargeable 3 cell battery stick for use with emergency lighting applications. This battery has a capacity of 4ah and comes with flying leads. The dimensions of the Yuasa emergency battery are 32.5mm x 178mm. Please note that Ni-Cd batteries are supplied with a residual charge and should be charged at the continuous charge rate before use. The Yuasa part number: 3DH4-0L4

Read more less

You are viewing the Yuasa 4.8v D cell, nickel cadmium rechargeable 4 cell stick battery for use with emergency lighting applications. This battery has a capacity of 4ah and comes with flying leads. The dimensions of the Yuasa emergency battery are 32.5mm x 238mm. Please note that Ni-Cd batteries are supplied with a residual charge and should be charged at the continuous charge rate before use. The Yuasa part number: 4DH4-0L4.

Read more less

You are viewing the Yuasa 4.8v D cell, nickel cadmium rechargeable 4 cell 2+2 emergency battery for use with emergency lighting applications. This battery has a capacity of 4ah and comes with flying leads. The dimensions of the Yuasa emergency battery are  118mm x 65mm x 32.5mm. Please note that Ni-Cd batteries are supplied with a residual charge and should be charged at the continuous charge rate before use. The Yuasa part number: 4DH4-0L5. 4/4000DHC REC20-4D

Read more less
