3DH4-0LA5
This is a Emergency 3 Cell Battery 3.6v 4.0ah, a D cell nickel-cadmium rechargeable battery with flying leads, ideal for use within emergency lighting applications.
These batteries are often used with emergency bulkheads, polo fittings and with LED panels and downlights for emergency uses. Typically used in offices, corridors, exit areas, schools and public buildings.
These batteries have been manufactured to be used in fittings with limited space. Tied together with cable ties which can be cut to maneuver into tight spaces or fittings.
Please note that Ni-Cd batteries are supplied with a residual charge and should be charged at the continuous charge rate before use.
D Size 1+1+1 in a fire sock
3.6V 4000Ma Ref Amp Connector
Same as
3 Cell NiCd
3 CELL NICD D CELL FLEXI
3.6V 4.5Ah High Temp
3-CD45/F
LITEPLAN
3-CD45/F/AS
LITE-PLAN
3-CD45/FL/FPS/AS
LITE-PLAN
3-CD45/FL/FRS/A

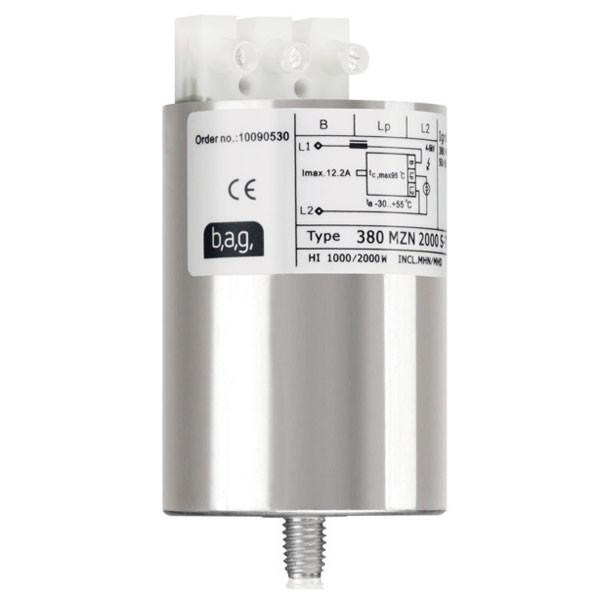

2000W MHN-LA ( FC ) IGNITOR
B,A,G, Electronics Superimposed ignitor
Order No – BAG10006302
Runs 1000 and 2000 watt lamps
Dimensions: 93mm x 51mm x 51mm
Availability – In Stock
101011112146

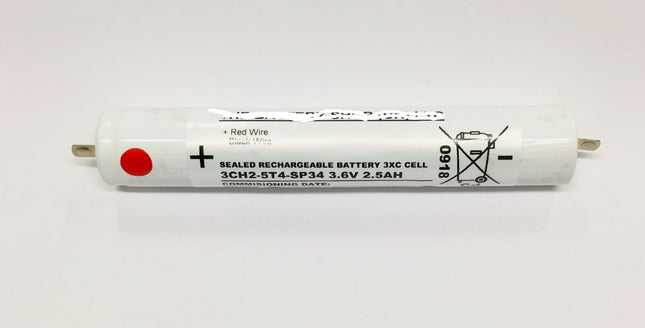

3CH2-5T4-SP34 3.6v 2.5Ah Ni-Cd Emergency Lighting Battery
Model : 3CH2-5T4-SP34
Cell Size : C
Chemistry : Ni-Cd
Voltage : 3.6v
Capacity : 2500mAh (2.5Ah)
Rechargeable : YES
Terminal Style : Lead and connector
Dimensions (approximate, +/-2mm) : 149mm long x 26mm diameter
Intended use : replacement battery for use in emergency lighting.
Alternative to : Yuasa 3CH2-5T4
Please note this item will be made to order, resulting in a delayed dispatch, allow 1-2 days for production.; Model :; Model :; Cell Size : C
Chemistry : Ni-Cd
Voltage : 3.6v
Capacity : 2500mAh (2.5Ah)
Rechargeable : YES
Terminal Style : Lead and connector
Dimensions (approximate, +/-2mm) : 149mm long x 26mm diameter
Intended use : replacement battery for use in emergency lighting.
Alternative to : Yuasa 3CH2-5T4
Please note this item will be made to order, resulting in a delayed dispatch, allow 1-2 days for production.; Cell Size : C
Chemistry : Ni-Cd
Voltage : 3.6v
Capacity : 2500mAh (2.5Ah)
Rechargeable : YES
Terminal Style : Lead and connector
Dimensions (approximate, +/-2mm) : 149mm long x 26mm diameter
Intended use : replacement battery for use in emergency lighting.
Alternative to : Yuasa 3CH2-5T4
Please note this item will be made to order, resulting in a delayed dispatch, allow 1-2 days for production.
Brand : Yuasa
Model : 3DH4-0L3
Voltage : 3.6v
Capacity : 4.0ah
Weight : 390g
Dimensions : 62mm Long x 97.5mm wide x 32.5mm High
Yuasa 3DH4-0L3 3.6v 4.0Ah Ni-Cd battery for use in emergency lighting.
Terminals : Red and black flying leads around 300 mm long
Battery Type: High temperature nickel-cadmium battery (Ni-Cd) for use in emergency lighting.
---------------------------------------------
YUASA BATTERY SALES(UK) LTD
+ Red wire
- Black wire
Sealed Rechargeable Battery KRMT33/62
3DH4-0L3 3.6v High Temp D CD
---------------------------------------------
Brand : Yuasa
Model : 3DH4-0L3
Voltage : 3.6v
Capacity : 4.0ah
Weight : 390g
Dimensions : 62mm Long x 97.5mm wide x 32.5mm High
Yuasa 3DH4-0L3 3.6v 4.0Ah Ni-Cd battery for use in emergency lighting.
Terminals : Red and black flying leads around 300 mm long
Battery Type: High temperature nickel-cadmium battery (Ni-Cd) for use in emergency lighting.
---------------------------------------------
YUASA BATTERY SALES(UK) LTD
+ Red wire
- Black wire
Sealed Rechargeable Battery KRMT33/62
3DH4-0L3 3.6v High Temp D CD
---------------------------------------------
Brand : Yuasa
Model : 3DH4-0L3
Voltage : 3.6v
Capacity : 4.0ah
Weight : 390g
Dimensions : 62mm Long x 97.5mm wide x 32.5mm High
Yuasa 3DH4-0L3 3.6v 4.0Ah Ni-Cd battery for use in emergency lighting.
Terminals : Red and black flying leads around 300 mm long
Battery Type: High temperature nickel-cadmium battery (Ni-Cd) for use in emergency lighting.
---------------------------------------------
YUASA BATTERY SALES(UK) LTD
+ Red wire
- Black wire
Sealed Rechargeable Battery KRMT33/62
3DH4-0L3 3.6v High Temp D CD
---------------------------------------------
Technical Reference
Datasheet
Yuasa Datasheet

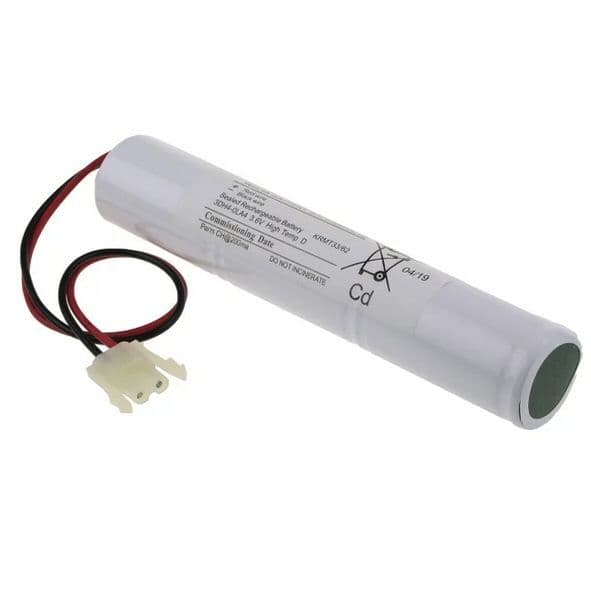

Yuasa 3DH4-0LA4 Emergency Lighting Battery Pack with AMP connector3 D cell Ni-Cd batteries in line with leads and AMP connector3 D Cell Stick with leads and AMP connectorBattery Part Number: 3DH4-0LA4Battery Cell Size Used: D CellConnector Type : AMP style connectorConnector Polarity: + Red positive wire slot 1 of connector / - Black negetive wire slot 2 of connectorBattery Pack VoltageBattery Pack Voltage: 3.6vBattery Pack Capacity: 4000mAhHeight: 33mm (+/-2mm)Length: 180mm (+/-2mm)Depth: 32.5mm (+/-2mm)Pack Type: Standard Emergency Lighting Pack.Label ReadsYUASA BATTERY SALES (UK) LTD+Red wire- Black wireSealed Rechargeable Battery KRMT33/623DH4-0LA4 3.6V High Temp DPerm CH @ 200ma DO NOT INCINERATE Cd
Technical Reference
Datasheet
Yuasa Datasheet
Yuasa 3DH4-0LA4 Emergency Lighting Battery Pack with AMP connector3 D cell Ni-Cd batteries in line with leads and AMP connector3 D Cell Stick with leads and AMP connectorBattery Part Number: 3DH4-0LA4Battery Cell Size Used: D CellConnector Type : AMP style connectorConnector Polarity: + Red positive wire slot 1 of connector / - Black negetive wire slot 2 of connectorBattery Pack VoltageBattery Pack Voltage: 3.6vBattery Pack Capacity: 4000mAhHeight: 33mm (+/-2mm)Length: 180mm (+/-2mm)Depth: 32.5mm (+/-2mm)Pack Type: Standard Emergency Lighting Pack.Label ReadsYUASA BATTERY SALES (UK) LTD+Red wire- Black wireSealed Rechargeable Battery KRMT33/623DH4-0LA4 3.6V High Temp DPerm CH @ 200ma DO NOT INCINERATE Cd
