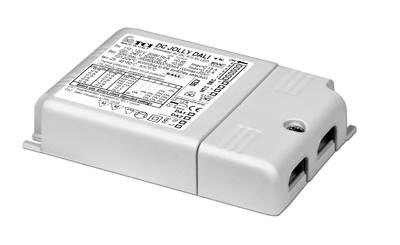

125424 DC JOLLY DALI TCI

Description



Features
•Multipower driver supplied with dip-switch for the selection of
the output current.
•IP20 independent driver, for indoor use (DC JOLLY DALI).
•Class II protection against electric shock for direct or indirect
contact (DC JOLLY DALI).
•Driver for built-in use (DC JOLLY BI DALI).
•It can be used for lighting equipment in protection class I and II
(DC JOLLY BI DALI).
•Active Power Factor Corrector.
•Analogical input (NTC) for thermal sensor connection.
•Current regulation ±5 % including temperature variations.
•Input and output terminal blocks on the same side (wire
cross-section up to 1,5 mm2 / AWG15).
•Clamping screws on primary and secondary circuits for cables
with diameter: min. 3 mm - max. 8 mm (DC JOLLY DALI).
•Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
•Thermal protection = C.5.A

Operation Mode
•Features DALI dimming (0/0,5 - 100 %):
- memory function for sets or light groups;
- recall of stored functions;
- compatible with standard DALI interfaces.
•DALI-2 approved.
•(4) Default dimming AM+PWM: 1-25% PWM 2 kHz+25-100% AM
(NO SYNC).
•(4)
 Full PWM dimming (240 Hz - 1-100%) available by short circuit of NTC port
during switch on of the driver. Same operation to reset to AM+PWM.
•(5) Full AM DIMMING: 1 - 100%.
•Max. 10 synchronised drivers of which only one can be controlled
(1 Master + 9 Slaves).
•Synchronization cable is separately supplied



125424 DC JOLLY DALI TCI

Product form

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£42.00 Excl. VAT

(inc. 20% VAT): £50.40

    • Contact us to confirm availability
      Downloads

      Features•Multipower driver supplied with dip-switch for the selection ofthe output current.•IP20 independent driver, for indoor use (DC JOLLY DALI).•Class... Read more

    Description



    Features
    •Multipower driver supplied with dip-switch for the selection of
    the output current.
    •IP20 independent driver, for indoor use (DC JOLLY DALI).
    •Class II protection against electric shock for direct or indirect
    contact (DC JOLLY DALI).
    •Driver for built-in use (DC JOLLY BI DALI).
    •It can be used for lighting equipment in protection class I and II
    (DC JOLLY BI DALI).
    •Active Power Factor Corrector.
    •Analogical input (NTC) for thermal sensor connection.
    •Current regulation ±5 % including temperature variations.
    •Input and output terminal blocks on the same side (wire
    cross-section up to 1,5 mm2 / AWG15).
    •Clamping screws on primary and secondary circuits for cables
    with diameter: min. 3 mm - max. 8 mm (DC JOLLY DALI).
    •Protections:
    - against overheating and short circuits;
    - against mains voltage spikes;
    - against overloads.
    •Thermal protection = C.5.A

    Operation Mode
    •Features DALI dimming (0/0,5 - 100 %):
    - memory function for sets or light groups;
    - recall of stored functions;
    - compatible with standard DALI interfaces.
    •DALI-2 approved.
    •(4) Default dimming AM+PWM: 1-25% PWM 2 kHz+25-100% AM
    (NO SYNC).
    •(4)
     Full PWM dimming (240 Hz - 1-100%) available by short circuit of NTC port
    during switch on of the driver. Same operation to reset to AM+PWM.
    •(5) Full AM DIMMING: 1 - 100%.
    •Max. 10 synchronised drivers of which only one can be controlled
    (1 Master + 9 Slaves).
    •Synchronization cable is separately supplied
