Description

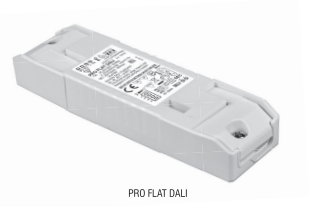

TCI DALI dim with dipswitch.
Features
• Multipower driver supplied with dip-switch for the selection of the output current.
• IP20 independent driver, for indoor use (PRO FLAT DALI).
• Class II protection against electric shock for direct or indirect contact (PRO FLAT DALI).
• Driver for built-in use (PRO FLAT DALI BI).
• It can be used for lighting equipment in protection class I and II (PRO FLAT DALI BI).
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: min. 2 mm - max. 9 mm (PRO FLAT DALI).
• Driver can be secured with slot for screws.
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads
Operation Mode
•Features DALI-2 dimming (0/1 - 100 %, minimum output current 7 mA):
- memory function for sets or light groups;
- recall of stored functions;
- compatible with standard DALI interfaces.
•Dimming method is AMPLITUDE.
•Light regulation 0/1 - 100 % by means of PUSH SWITCH function (mains voltage):
- a short push to turn on and off;
- a longer push to increase or decrease light intensity;
- regulation automatically stops at minimum and maximum values;
- for another on, regulation or off command, release the push button and give the desired command again;
- dimming level memory at mains restore.

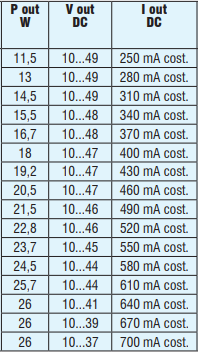

Output voltage range:
11,5w 10-49v at 250 mA cost.
13w 10-49v at 280 mA cost.
14,5w 10-49v at 310 mA cost.
15,5w 10-48v at 340 mA cost.
16,7w 10-48v at 370 mA cost.
18w 10-47v at 400 mA cost.
19,2w 10-47v at 430 mA cost.
20,5w 10-47v at 460 mA cost.
21,5w 10-46v at 490 mA cost.
22,8w 10-46v at 520 mA cost.
23,7w 10-45v at 550 mA cost.
24,5w 10-44v at 580 mA cost.
25,7w 10-44v at 610 mA cost.
26w 10-41v at 640 mA cost.
26w 10-39v at 670 mA cost.
26w 10-37v at 700 mA cost
