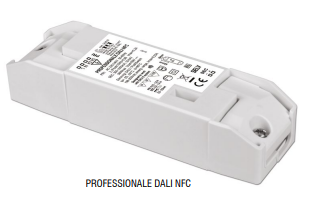

142010 - PROFESSIONALE DALI NFC

Description

TCI DALI NFC

Features

•Multipower driver supplied with NFC for the selection of the output current.
•IP20 independent driver, for indoor use (PROFESSIONALE DALI).
•Class II protection against electric shock for direct or indirect contact (PROFESSIONALE DALI).
•Driver for built-in use (PROFESSIONALE DALI BI).
•It can be used for lighting equipment in protection class I and II (PROFESSIONALE DALI BI).
•Active Power Factor Corrector.
•Current regulation ±5 % including temperature variations.
•Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm2 / AWG15).
•Clamping screws on primary and secondary circuits for cables with diameter: min. 2 mm - max. 9 mm (PROFESSIONALE DALI).
•Driver can be secured with slot for screws.
•Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads

Operation Mode


•WIRELESS PROGRAMMING through NFC antenna.
•Programmable features:
- output current setting, step 1mA;
- PUSH-SWITCH (enable/disable);
- Password (lock/unlock programming).
•Compatible with standard DALI interfaces.
•Features DALI dimming (0/1 - 100 %, minimum output current 7 mA):
- memory function for sets or light groups;
- recall of stored functions.
•Dimming method is AMPLITUDE.
•Light regulation 0/1 - 100 % by means of PUSH SWITCH function (mains voltage):
- a short push to turn on and off;
- a longer push to increase or decrease light intensity;
- regulation automatically stops at minimum and maximum values;
- for another on, regulation or off command, release the push button and give
the desired command again;
- dimming level memory at mains restore

142010 - PROFESSIONALE DALI NFC

Product form

SKU: 142010
Barcode: 142010

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£40.00 Excl. VAT

(inc. 20% VAT): £48.00

    • Contact us to confirm availability
      Downloads

    TCI DALI NFC Features •Multipower driver supplied with NFC for the selection of the output current.•IP20 independent driver, for indoor... Read more
