151120 - MINI JOLLY 25 DALI NFC

Description

TCI DALI programmable driver.

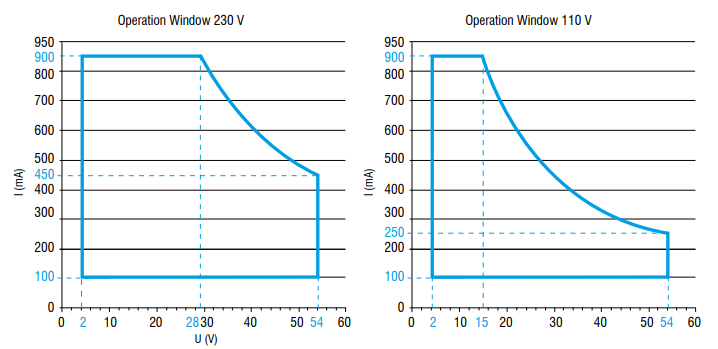

Ranges from 2-54v at 100-900ma (please confirm operation window graph within datasheet)

Features


•Multipower driver supplied with NFC for the selection of the output current.
•IP20 independent driver, for indoor use (MINI JOLLY 25 DALI).
•Class II protection against electric shock for direct or indirect contact (MINI JOLLY 25 DALI).
•Driver for built-in use (MINI JOLLY 25 DALI BI).
•It can be used for lighting equipment in protection class I and II (MINI JOLLY 25 DALI BI).
•Active Power Factor Corrector.
•Current regulation ±5 % including temperature variations.
•Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 / AWG15).
•Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm (MINI JOLLY 25 DALI).
•Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.

Operation Mode


•Features DALI-2 dimming (0/1 - 100 %, minimum output current 7 mA):
- memory function for sets or light groups;
- recall of stored functions;
- compatible with standard DALI interfaces;
- CLO;
- DC EMERGENCY;
- PUSH-SWITCH (enable/disable);
- 0/1-10 V setting.
•Dimming method is AMPLITUDE.
•Light regulation 0/1 - 100 % by means of PUSH SWITCH function (mains voltage):
- a short push to turn on and off;
- a longer push to increase or decrease light intensity;
- regulation automatically stops at minimum and maximum values;
- for another on, regulation or off command, release the push button and give the desired command again;
- dimming level memory at mains restore.
•Light regulation 0/1 - 100 % by means of 0/1...10 V local interface
(I=0,35 mA) or 100 Kohm potentiometer.

151120 - MINI JOLLY 25 DALI NFC

Product form

SKU: 151120
Barcode: 151120

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£60.00 Excl. VAT

(inc. 20% VAT): £72.00

    • Contact us to confirm availability
