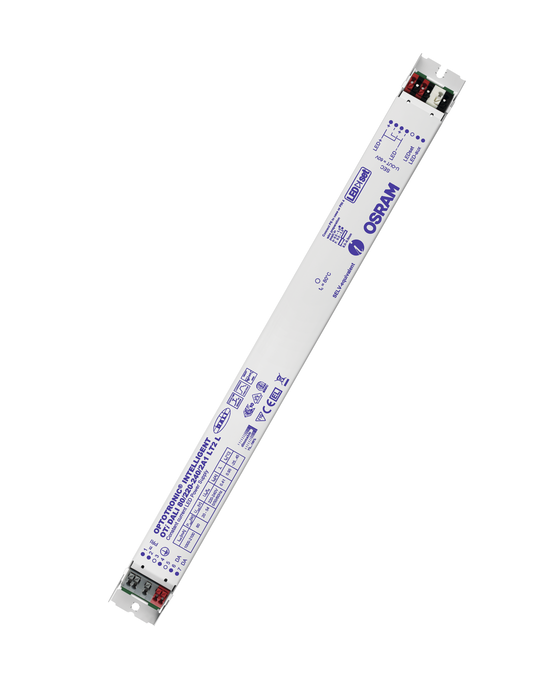

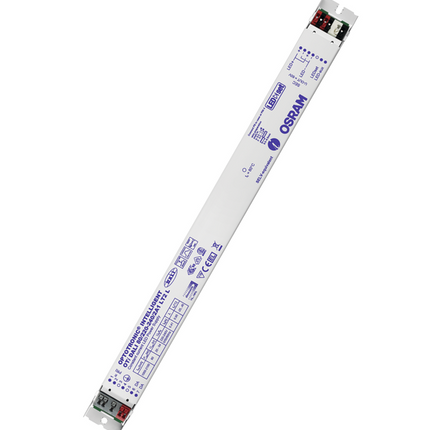

4052899028050 OTi DALI 80/220…240/2A1 LT2 L

4052899028050 OTi DALI 80/220…240/2A1 LT2 L

Product benefits
Versatile scope of application due to OSRAM DALI Technology:
− Linear lighting for office, education, storage areas and retail
Installation in emergency lighting systems according to IEC 61347-2-13,
appendix J
−
− Suitable for luminaires of protection class I
− Fully programmable via software (DALI Interface)
− Flexible current setting (LEDset2)
− Lifetime: up to 100,000 h (temperature at T c = 65 °C, max. 10 % failure rate)
− High-quality dimming of 1…100 % by amplitude dimming (except 80 W versions)
− High quality of light thanks to <1% output ripple current
− Very high efficiency
− Very low standby power consumption: < 0.15 W *
− Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
− Easy to use in corridors and restrooms because of three-level Corridor function
− Touch DIM application: easy to control via pushbutton or sensor
− Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off
switchable
−
− Feedback of power consumption and operating hours (Fit for SMART GRID)
− Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting

Product features
− Line frequency: 0 Hz | 50 Hz | 60 Hz
− Versatile DALI window driver up to 80 W due to flexible output characteristic
− Supply voltage: 220…240 V
− Available with output current range: up to 2,100 mA
− Constant Lumen Output (CLO)
− Integrated customizable thermal management (Driver Guard)
− DALI-2 certified (Part -101,-102 and -207)
