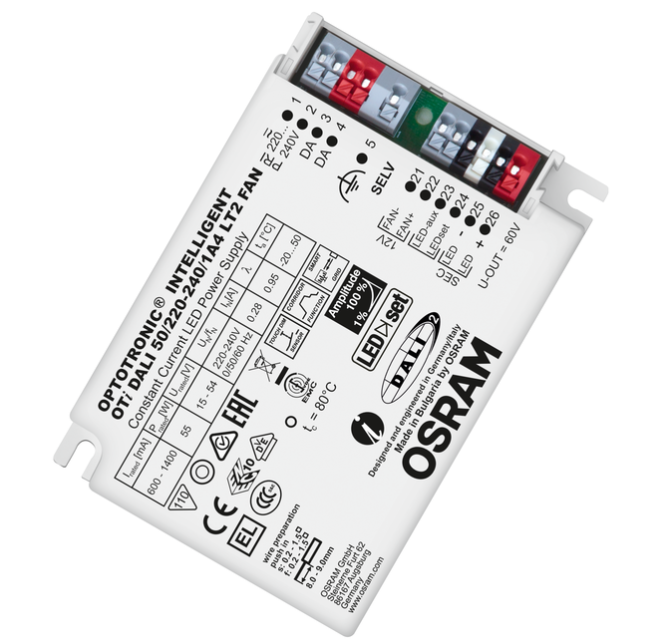

4052899488182 - OTi DALI 50/220…240/1A4 LT2 FAN

Description

Product benefits
  • Versatile DALI window driver due to flexible output characteristic
  • Very high efficiency
  • Protection of the system thanks to thermal management and Smart Control
  • High-quality dimming of 1…100 % by amplitude dimming

Versatile scope of application due to OSRAM DALI Technology:

    • Easy to use in corridors and restrooms because of three-level Corridor function
    • Touch DIM application: easy to control via pushbutton or sensor
    • Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
    • Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
    • Feedback of power consumption and operating hours (Fit for SMART GRID)
    • Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Areas of application
    • Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
    • Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
    • Suitable for indoor SELV installations
    • Suitable for luminaires of protection classes I and II
    • Suitable for downlights, spotlights and LED panels
    • Installation via Cable Clamp Kit possible (depending on version of product)
Product features
    • Supply voltage: 220…240 V
    • Line frequency: 0 Hz | 50 Hz | 60 Hz
    • Line voltage: 198…264 V
    • Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
    • RI suppression: to EN 55015/CISPR 15
    • Line harmonics according to EN 61000-3-2
    • Immunity according to EN 61547
    • Lifetime: up to 100,000 h
    • Type of protection: IP20
    • Independent connection via through-looping (except OTi DALI 15)
Electrical data
Nominal wattage 50.00 W
Nominal output power 55 W 1)
Nominal voltage 220…240 V
Nominal output voltage 15…54 V 2)
Input voltage AC 198…264 V 3)
Input voltage DC 176…276 V
U-OUT (working voltage) 60 V
Nominal current 0.27 A
Nominal output current 600…1400 mA 4)
Inrush current 30 A 5)
Output current tolerance ±3 %
Output ripple current (100 Hz) < 2 % 6)
Mains frequency 0/50/60 Hz
Total harmonic distortion < 10 % 7)
Power factor λ > 0.95
ECG efficiency 91 % 8)
Device power loss 7.5 W
Max. ECG no. on circuit breaker 10 A (B) 12
Max. ECG no. on circuit breaker 16 A (B) 20
Max. ECG no. on circuit breaker 25 A (B) -
Surge capability (L/N-Ground) 2 kV 9)
Surge capability (L-N) 1 kV
Power loss in stand-by mode < 0.15 W
Flickering metric (Pst LM) ≤1

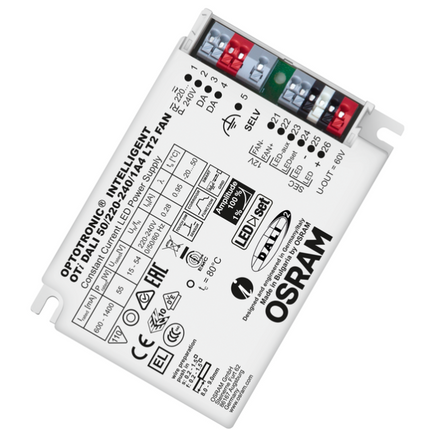

4052899488182 - OTi DALI 50/220…240/1A4 LT2 FAN

Product form

SKU: 4052899488182
Barcode: 4052899488182

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£75.00 Excl. VAT

(inc. 20% VAT): £90.00

    • Contact us to confirm availability
      Downloads

    Product benefits Versatile DALI window driver due to flexible output characteristic Very high efficiency Protection of the system thanks to... Read more

    Description

    Product benefits
    • Versatile DALI window driver due to flexible output characteristic
    • Very high efficiency
    • Protection of the system thanks to thermal management and Smart Control
    • High-quality dimming of 1…100 % by amplitude dimming

    Versatile scope of application due to OSRAM DALI Technology:

      • Easy to use in corridors and restrooms because of three-level Corridor function
      • Touch DIM application: easy to control via pushbutton or sensor
      • Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
      • Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
      • Feedback of power consumption and operating hours (Fit for SMART GRID)
      • Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
    Areas of application
      • Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
      • Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
      • Suitable for indoor SELV installations
      • Suitable for luminaires of protection classes I and II
      • Suitable for downlights, spotlights and LED panels
      • Installation via Cable Clamp Kit possible (depending on version of product)
    Product features
      • Supply voltage: 220…240 V
      • Line frequency: 0 Hz | 50 Hz | 60 Hz
      • Line voltage: 198…264 V
      • Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
      • RI suppression: to EN 55015/CISPR 15
      • Line harmonics according to EN 61000-3-2
      • Immunity according to EN 61547
      • Lifetime: up to 100,000 h
      • Type of protection: IP20
      • Independent connection via through-looping (except OTi DALI 15)
    Electrical data
    Nominal wattage 50.00 W
    Nominal output power 55 W 1)
    Nominal voltage 220…240 V
    Nominal output voltage 15…54 V 2)
    Input voltage AC 198…264 V 3)
    Input voltage DC 176…276 V
    U-OUT (working voltage) 60 V
    Nominal current 0.27 A
    Nominal output current 600…1400 mA 4)
    Inrush current 30 A 5)
    Output current tolerance ±3 %
    Output ripple current (100 Hz) < 2 % 6)
    Mains frequency 0/50/60 Hz
    Total harmonic distortion < 10 % 7)
    Power factor λ > 0.95
    ECG efficiency 91 % 8)
    Device power loss 7.5 W
    Max. ECG no. on circuit breaker 10 A (B) 12
    Max. ECG no. on circuit breaker 16 A (B) 20
    Max. ECG no. on circuit breaker 25 A (B) -
    Surge capability (L/N-Ground) 2 kV 9)
    Surge capability (L-N) 1 kV
    Power loss in stand-by mode < 0.15 W
    Flickering metric (Pst LM) ≤1
