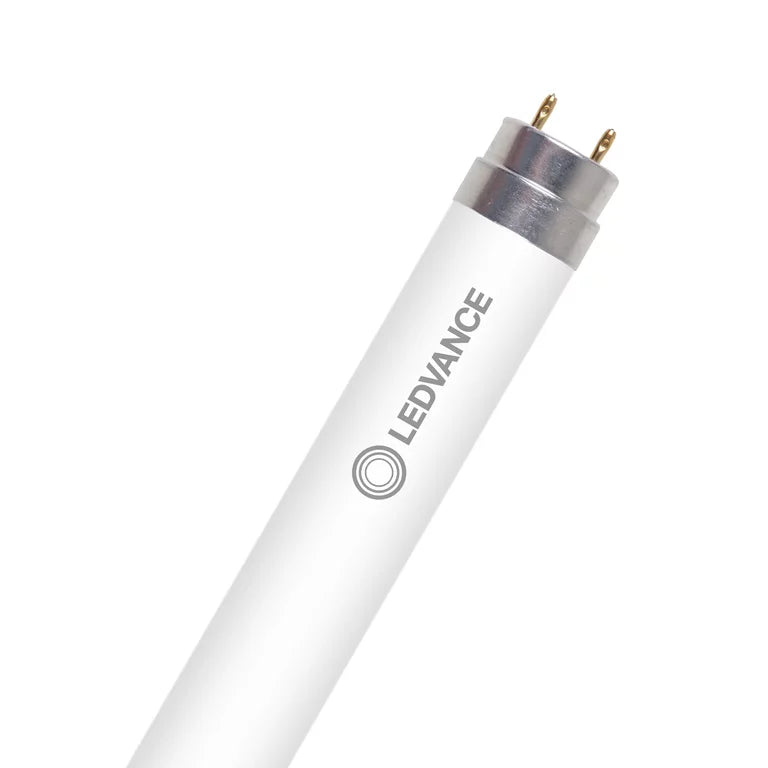

4FT T8 Dali Dimmable LED Tubes Please select Single or Twin Fitting

Description

LEDVANCE LED TUBE T8 EXTERNAL P



Singles Pack  1 Tube 1 Driver

Twin Pack 2 Tubes 1 Driver

For sale to UK Customers only

Product benefits
  • Compatible with LEDVANCE DRIVER LED TUBE DALI EXTERNAL
  • Shatter protection thanks to special PET coating
  • No bending thanks to glass tube
  • Very high resistance to switching loads
  • Five year guarantee

ECHNICAL DATA

ELECTRICAL DATA

Nominal wattage 15 W
Construction wattage 15.00 W
Nominal voltage 42 V
Claimed equiv. conventional lamp power 36 W
Nominal current 350 mA
Type of current DC
Inrush current 4.3 A
Operating frequency 0 Hz
Mains frequency 0 Hz
Total harmonic distortion < 20 %
Power factor λ 0.90

PHOTOMETRICAL DATA

Luminous flux 2400 lm
Luminous efficacy 160 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0,4

LIGHT TECHNICAL DATA

Beam angle 190 °
Warm-up time (60 %) ‹ 2.00 s
Starting time < 1.0 s
Rated beam angle (half peak value) 190.00 °

DIMENSIONS & WEIGHT

Overall length 1200.00 mm
Diameter 27.00 mm
Maximum diameter 27 mm
Product weight 190.00 g

TEMPERATURES & OPERATING CONDITIONS

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point 60 °C

LIFESPAN

Lifespan 50000 h
Number of switching cycles 200000
Lumen maintenance at end of serv 0.70
Rated lamp survival factor at 6,000 ≥ 0.90

ADDITIONAL PRODUCT DATA

Base (standard designation) G13
Mercury content 0.0 mg
Product remark Single sided LED TUBE (one-sided DC input ) complying with safety requirement acc. IEC 62776:2014. Safety protection against electrical shock in misuse (ECG/CCG/Mains operation).

CAPABILITIES

Dimmable Yes

CERTIFICATES & STANDARDS

Energy efficiency class D 1)
Energy consumption 15.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

COUNTRY-SPECIFIC CATEGORIZATIONS

Order reference LEDTUBE T8 EXT

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

ENERGY LABELLING REGULATION DATA ACC EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 1200.00 mm
Height 27.00 mm
Width 27.00 mm
Chromaticity coordinate x 0,381
Chromaticity coordinate y 0,379
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0,90
Displacement factor 0,90
LED light source replaces a fluorescent light source No
EPREL ID 1161823
Model number AC39952

4FT T8 Dali Dimmable LED Tubes Please select Single or Twin Fitting

Product form

SKU: 4.05808E+12
Barcode: 4058075730595

Trade price available - contact us
