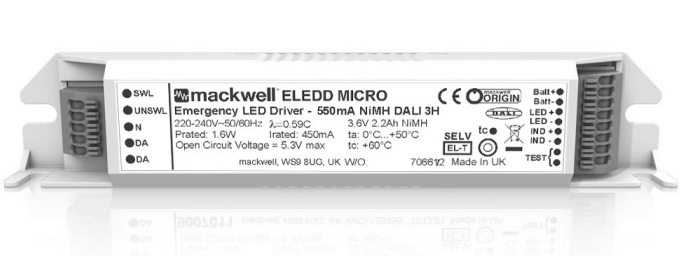

9007026 - ELEDDMICRO550D

Description

The ELEDD MICRO is a range of micro-processor controlled emergency drivers with Mackwell’s unique Origin technology platform at its core. It provides fully compliant DALI AutoTest functionality and enables a variety of emergency solutions including directly driving emergency luminaires and integral conversions.

The Origin technology within the ELEDD MICRO system enables the driver to be pre-configured to suit defined applications. This includes the ability to be given specific charge and discharge properties prior to shipment allowing perfect harmony of the control gear, battery and LED load.

Intelligent battery management is integral to the design, allowing optimum efficiency of batteries and prolonging life in high temperature applications.


Key features:
• Multiple output variants
• Origin technology platform
• Intelligent battery protection
• Diagnostics
• Stabilised output current
• DALI functionality option
• Compact size
• Excellent EMC performance
• Low power consumption
• BSI & Kitemark approved



Driver Specifications
Supply voltage : 220 to 240 V
Supply frequency : 50/60 Hz
Supply current : 10 to 40 mA
Power factor : >0.62
Output voltage (max) : 4 V
Output voltage (min) : 2.8 V
Total circuit power (max) : 5 W
Total circuit power (nominal): 0.9 W
Ambient temperature (ta) : 0 to +50°C
Max case temperature (tc) : +60°C
Conductor size : 0.2 to 0.5mm²
Battery temperature (NiCd) : 0 to +50°C
Battery temperature (NiMH): 0 to +40°C
Battery charge current
NiCd (2Ah) : 95 to 105 mA
NiMH (2.2Ah) : 105 to 110 mA
NiMH (4Ah) : 195 to 200 mA
Battery discharge current : 0.45 to 0.95 A
Battery charge voltage : 3 to 5.25 V
Battery discharge voltage : 3 to 4.65 V
Intermittent charge current
NiMH (2.2Ah) : 0 to 110 mA
NiMH (4Ah) : 0 to 198 mA
Emergency duration : 1 or 3 hours
Recharge period : 24 hours
Weight of control gear : 53 g

9007026 - ELEDDMICRO550D

Product form

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£75.00 Excl. VAT

(inc. 20% VAT): £90.00

    • Contact us to confirm availability
