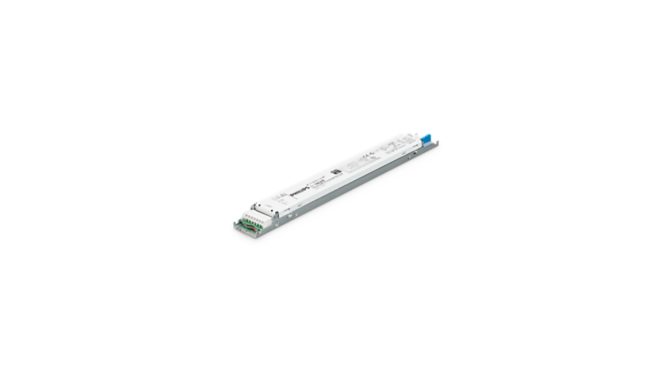

929001681606 XITANIUM60W0.15-0.5A220VTD16

Xitanium non-iso DALI dimmable & programmable (TD16 SimpleSet)
Xitanium 60W 0.15-0.5A 220V TD16 230V
9290 016 81606
Xitanium non-isolated DALI drivers are ideal for High Voltage (HV) linear systems and stand on three pillars: quality of light, reliability and
flexibility.
By using Xitanium LED drivers in your luminaires, you can be sure to offer your customers high quality of light without visual flicker and
stroboscopic effects. The reliability of our drivers is based on in-depth electronics knowledge and extensive testing.
Finally, application-oriented operating windows offer the flexibility required to provide the stable lumen output and light quality levels that
lighting specifiers and architects demand.
Benefits
• Low profile housing (16mm height)
• SimpleSet configuration interface
(NFC)
•High quality of light
•High reliability
• Future-proof flexibility
• Flicker and noise free dimming due to
amplitude modulation dimming (AM)
Features
•Configurable operating windows (AOC) via DALI and
SimpleSet interface or with LEDset
•Adjustable Light Output (ALO)
•Constant Light Output (CLO)
•Corridor Mode (CM)
•Dimming supported during DC operation (DCemDim)
• Touch & Dim (TD)
•OEM Write Protection (OWP)
•Memory Bank 1 Extension / Luminaire Data (DALI part
251)
• Energy Reporting (DALI part 252)
•Diagnostics & Maintenance (DALI part 253)
Application
•Offices
•Healthcare
• Education
• Indoor parking areas
•Retail: supermarkets, shopping malls
• Industry
November 2021
PHASE OUT
Electrical input data
Specification item Value Unit Condition
Rated input voltage range 220...240 Vac Nominal range
Rated input voltage 230 Vac
Rated input frequency range 50...60 Hz Nominal range
Rated input current 0.3 A @ rated output power @ rated input voltage
Rated input power 66 W @ rated output power @ rated input voltage
Power factor 0.9 @ rated output power @ rated input voltage
Total harmonic distortion 20 % @ rated output power @ rated input voltage
Efficiency 91.2 % @ rated output power @ rated input voltage @ max. Uout
Rated input voltage DC range 186...250 Vdc Nominal range
Input voltage AC range 198...264 Vac Operational range
Input frequency AC range 45...66 Hz Operational range
Input voltage DC range 168...275 Vdc Operational range
Standby Power 0.24 W
Isolation input to output No
Electrical output data
Specification item Value Unit Condition
Regulation method Constant Current
Output voltage 50...220 Vdc
Output voltage max. 250 V Maximum output voltage (rms)
Output current 0.15...0.5 A
Output current min programmable 150 mA
Output current min dimming 3 mA
Output current tolerance ± 5 %
Output current ripple LF ≤ 4 % Ripple = peak / average. Up to 2kHz.
Output Pst
LM ≤ 0.34
Output SVM ≤ 0.04
Output power 17...60 W
Electrical data controls input
Specification item Value Unit Condition
Control method Corridor Mode, DALI, Touch & Dim
(TD)
DALI parts: 101, 102, 207, 251, 252, 253. See design-in guide at
www.philips.com/oem for more controllability details.
Dimming range 1...100 % with AOC > 150mA 1% dimming possible; AOC < 150mA min.
physical current = 3mA
Isolation controls input to output Basic acc. IEC61347-1
2 / 8 Xitanium 60W 0.15-0.5A 220V TD16 230V November 2021
PHASE OUT
Wiring and Connections
Specification item Value Unit Type
Input wire cross-section 0.5...1.5 / 20...16 mm2
 / AWG WAGO744, solid wire
Input wire strip length 8...9 mm
Output wire cross-section 0.5...1.5 / 20...16 mm2
 / AWG WAGO744, solid wire
Output wire strip length 8...9 mm
Control wire cross-section 0.5...1.5 / 20...16 mm2
 / AWG WAGO744, solid wire
Control wire strip length 8...9 mm
Maximum cable length 2 m Total length of wiring including LED module, one way. For longer
wiring please double check EMI behavior of luminaire
Insulation
Insulation per IEC61347-1 Input Output+LEDset DALI Housing
Input No Basic Basic
Output+LEDset No Basic Basic
DALI Basic Basic Basic
Housing Basic Basic Basic
3 / 8 Xitanium 60W 0.15-0.5A 220V TD16 230V November 2021
