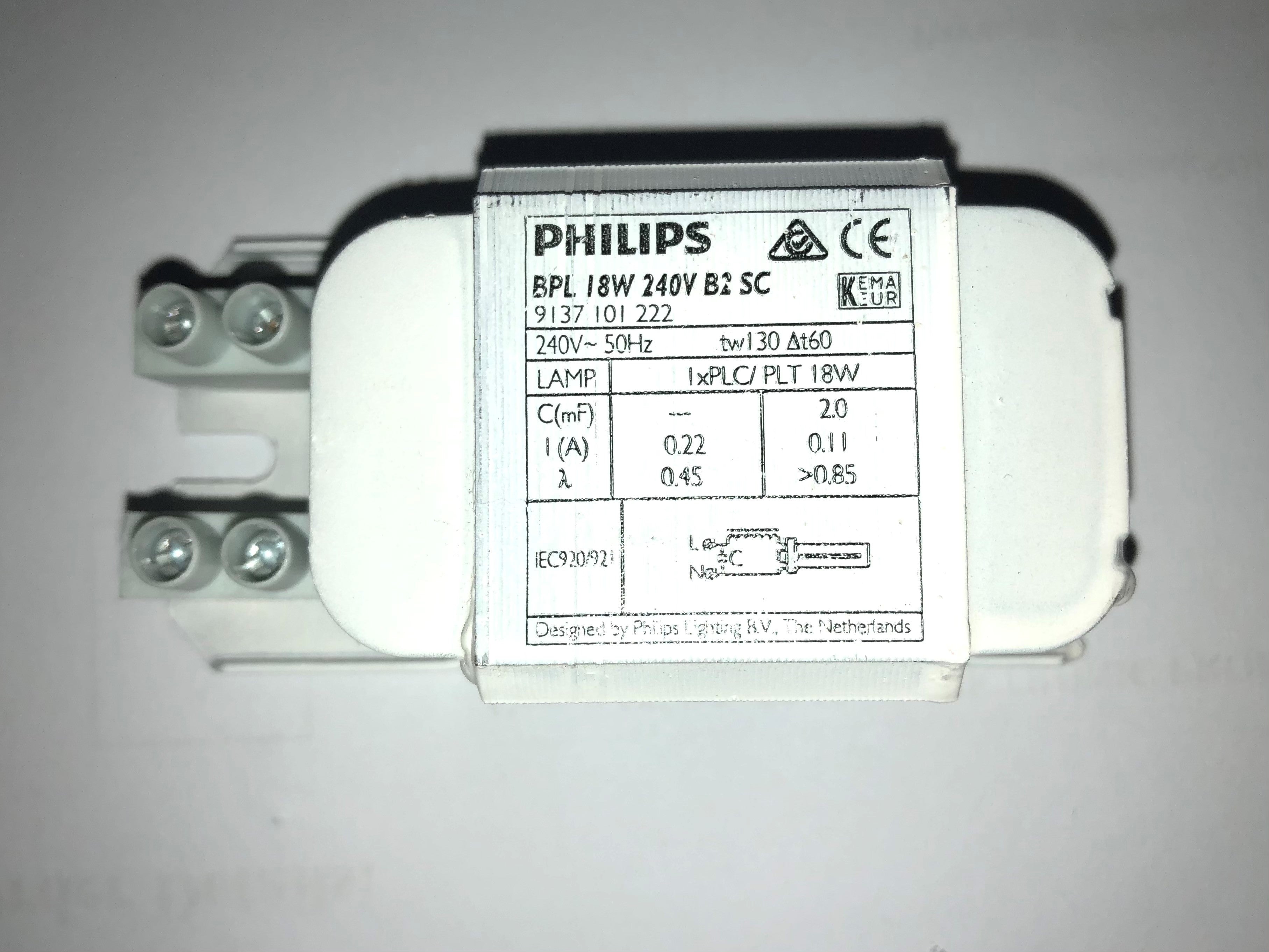

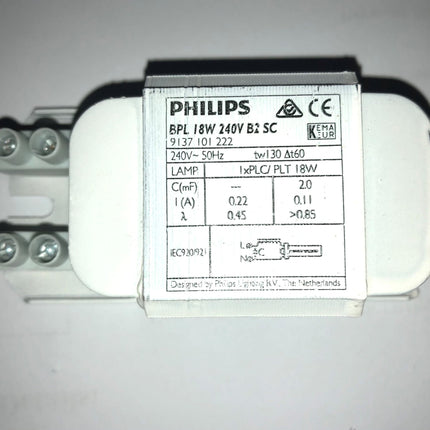

BPL 18W 240V B2 SC

Description

This item is obsolete, the below will be supplied as a viable alternative

https://www.easy-controlgear.com/products/ln18i-319-163763-vossloh-schawbe?_pos=1&_sid=4fef8832a&_ss=r



18W Choke for 2 Pin 18W

PLC/PLT

LYnx D/T

Biax D/T

Dulux D/T

Specifications

General Information
Application Code
18W
Design
B2

Operating and Electrical
Input Voltage
220 V
Input Frequency
50 Hz
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Power Factor with PF Compensation
0.85
Power Factor without PF Compensation (Nom)
0.50
Power Losses (Nom)
5.3 W
Wiring
Wire Striplength
8.0 mm
Ballast Contact Wire Cross Section
0.50-1.00 mm²
Connector Type
Screw
System characteristics
Rated Ballast-Lamp Power
18 W

Temperature
T-Storage (Max)
80 °C
T-Storage (Min)
-40 °C
T-Winding (Max)
130 °C
Delta-T Normal Conditions
60 °C
Mechanical and Housing
Housing
L 85x39x28

Approval and Application
Energy Efficiency Index
B2
Approval Marks

CE marking

CCC certificate

Product Data
Full product code
871016306593930
Order product name
BPL 18W 220V B2 SC
EAN/UPC - Product
8710163150116
Order code
913710121650
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
48
Material Nr. (12NC)
913710121650
Net Weight (Piece)
0.295 kg

BPL 18W 240V B2 SC

Product form

SKU: BPL18W
Barcode: 913710121650

Trade price available - contact us

£13.86 Excl. VAT

(inc. 20% VAT): £16.63

    • Contact us to confirm availability
