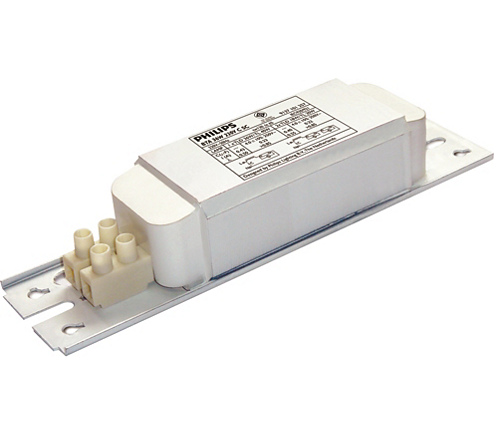

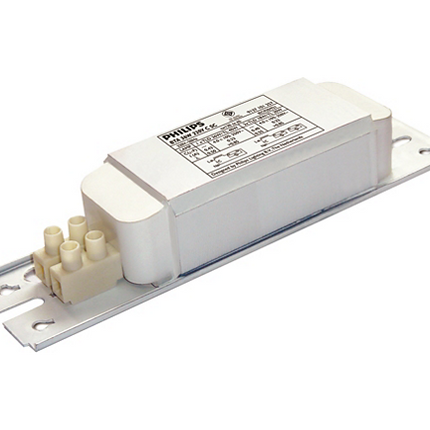

BTA 18W 230V C SC

Description


BTA 18W 230V C SC

Order code: 913710111750

Full Product Code: 871016303364830

Specifications

Similar to   L18A-l EC18A502K LN18.114 LN18I.319

General Information
Application Code
18W
Design
C
Operating and Electrical
Input Voltage
230 V
Input Frequency
50 Hz
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Power Factor with PF Compensation
0.85
Power Factor without PF Compensation (Nom)
0.35
Power Losses (Nom)
9.0 W
Wiring
Wire Striplength
8.0 mm
Ballast Contact Wire Cross Section
0.50-1.00 mm²
Connector Type
Screw
System characteristics
Rated Ballast-Lamp Power
18 W

Temperature
T-Storage (Max)
80 °C
T-Storage (Min)
-40 °C
T-Winding (Max)
130 °C
Delta-T Normal Conditions
65 °C
Mechanical and Housing
Housing
L 155x39x28

Approval and Application
Energy Efficiency Index
C
Approval Marks
CE marking
Product Data
Full product code
871016303364830
Order product name
BTA 18W 230V C SC
EAN/UPC - Product
8710163148632
Order code
913710111750
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
32
Material Nr. (12NC)
913710111750
Net Weight (Piece)
0.500 kg

BTA 18W 230V C SC

Product form

SKU: BTA18-B2-MT
Barcode: 913710111750

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£13.33 Excl. VAT

(inc. 20% VAT): £16.00

    • Contact us to confirm availability
