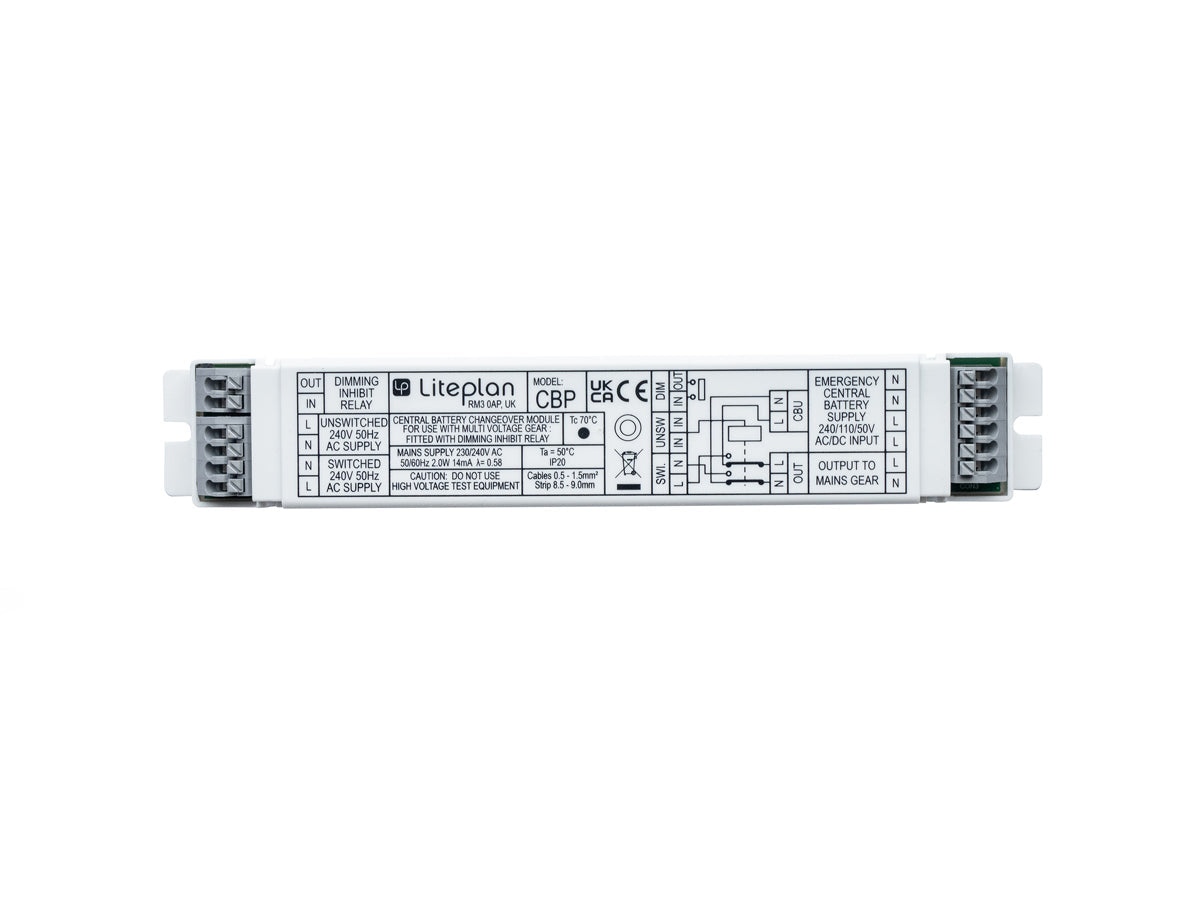

CBP/M Changeover Relay

Description

The CBP is a changeover relay unit configured to allow a luminaire to be operated normally from the switched lighting supply and also when the local 240V un-switched supply fails. The changeover then draws power from the emergency supply. This can be 50V, 100V or 240V DC central battery systems or 240V AC static inverter systems. The associated control gear/lamp must be capable of being powered by both 240V AC and the voltage of the central battery being used. upon (un-switched) main failure, the main changeover relay de-energises, and the unit changes over to an intermediate state approximately 0.5s. after this period the emergency supply hold of relay also de-energises and connects emergency supply to the load. Upon restoration of the un-switched supply, the emergency supply hold off relay energises and breaks the emergency supply to the load. Again, after the 0.5s delay the main changeover. relay energises, and connects the switched lighting supply to load. The unit fitted with a dimming inhibit relay, which can be used with dimming control gear to reset dimming level to 100% during the emergency situation. The module is suitable for use with LED, fluorescent and conventional control gear.



CBP Changeover Relay

Specifications

  • Low Profile Compact Enclosure
  • Dimming Inhibit Relay
  • Suitable for both Fluorescent and LED loads
  • Operates with 50V, 110V and 240V DC Central Battery Systems
  • The Associated Driver must be suitable for Central Battery Voltage
  • Available with Strain Relief Cables for Remote Applications
  • Operates with 240V AC 50/60Hz Static Inverter Systems
CBP
Input Voltage 230-240 Volts AC – 50/60Hz
Power Rating Maintained 2.0W 14mA λ = 0.58
Changeover Relay Rating 3A 240V
Ambient Temperature 5°C to 50°C
Tc Point Top Centre of case
Tc Max Module 70°C
Module Dimensions 178mm x 30mm x 22.5mm
Module Fixing Centres 175mm
Overall Weight 0.11kg

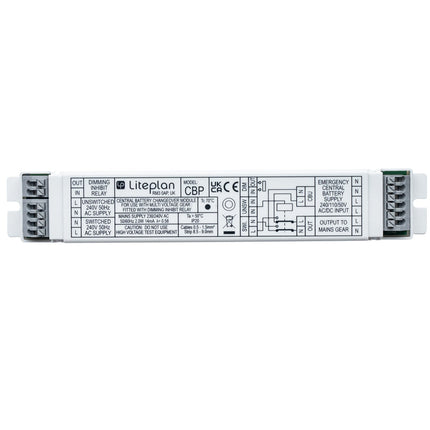

CBP/M Changeover Relay

Product form

SKU: cbp/m

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£42.49 Excl. VAT

(inc. 20% VAT): £50.99

    • Contact us to confirm availability
      Downloads

    The CBP is a changeover relay unit configured to allow a luminaire to be operated normally from the switched lighting... Read more

    Description

    The CBP is a changeover relay unit configured to allow a luminaire to be operated normally from the switched lighting supply and also when the local 240V un-switched supply fails. The changeover then draws power from the emergency supply. This can be 50V, 100V or 240V DC central battery systems or 240V AC static inverter systems. The associated control gear/lamp must be capable of being powered by both 240V AC and the voltage of the central battery being used. upon (un-switched) main failure, the main changeover relay de-energises, and the unit changes over to an intermediate state approximately 0.5s. after this period the emergency supply hold of relay also de-energises and connects emergency supply to the load. Upon restoration of the un-switched supply, the emergency supply hold off relay energises and breaks the emergency supply to the load. Again, after the 0.5s delay the main changeover. relay energises, and connects the switched lighting supply to load. The unit fitted with a dimming inhibit relay, which can be used with dimming control gear to reset dimming level to 100% during the emergency situation. The module is suitable for use with LED, fluorescent and conventional control gear.



    CBP Changeover Relay

    Specifications

    • Low Profile Compact Enclosure
    • Dimming Inhibit Relay
    • Suitable for both Fluorescent and LED loads
    • Operates with 50V, 110V and 240V DC Central Battery Systems
    • The Associated Driver must be suitable for Central Battery Voltage
    • Available with Strain Relief Cables for Remote Applications
    • Operates with 240V AC 50/60Hz Static Inverter Systems
    CBP
    Input Voltage 230-240 Volts AC – 50/60Hz
    Power Rating Maintained 2.0W 14mA λ = 0.58
    Changeover Relay Rating 3A 240V
    Ambient Temperature 5°C to 50°C
    Tc Point Top Centre of case
    Tc Max Module 70°C
    Module Dimensions 178mm x 30mm x 22.5mm
    Module Fixing Centres 175mm
    Overall Weight 0.11kg
