D2N/1 DALI-2 Addressable Conversion

Description

3 hour DALI-2 self-test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits. The D2N/1 and D2N/1S/80 automatically adjust the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The D2N/1 will operate LED loads between 6-55V forward and the D2N/1S/80 will operate LED loads between 6 and 80V forward. Suitable to operate with the LiteMesh wireless system.

net-19-33-17

This product is fully DALI-2 compliant and in keeping with the DALI-2 Standard, if the module is commissioned without a DALI control system present, the unit will revert to standalone self-test, indicating its faults via the charge LED.

The D2N range has been independently certified by TÜV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.

D2N/1 DALI-2 Addressable Conversion

Specifications

  • DiiA Registered DALI-2 Device
  • 2-pole Changeover Relay
  • Additional 3rd Pole Relay for Driver Protection
  • Deep Discharge Protection
  • Intelligent, Low Energy, Charging Circuit
  • Extra Long Life LiFePO4 Cells
  • Slim Module for Integral Mounting
  • D2N/1 – Average Emergency Output of 2.2W
  • D2N/1S – Average Emergency Output of 2.6W
  • Can Operate with the LiteMesh Wireless System
  • TÜV Tested and Certified
  • LiFePO4 Automatic Battery Protection and Recovery
D2N/1D2N/1S/80
LED Voltage Range 6-55V6-80V
I Rated 352mA – 40mA410mA – 33mA
P Rated 2.2W2.6W
LED Voltage Limit 55V80V
Battery Discharge Current 950mA1.1A
Mains Supply 230-240V AC 50/60Hz
Power Rating 1.4W 12mA λ = 0.48
Charge Current 225mA nominal
Recharge Period 24-hours
Battery Pack 3.2V 3.8Ah LiFePO43.2V 4.8Ah LiFePO4
Battery Cut Off 2.5V
Ambient Temperature (Ta) Module and Battery 5-35°C
Case Temperature (Tc) Battery 5-55°C, Module 5-70°C
Integral Kit Size Module – 178mm x 30mm x 22.5mm FC=172mm /1 Battery – 90mm 28mm Ø /1S Battery – 230mm x 24mm x 21mm

Order Codes


Order Code

 Description

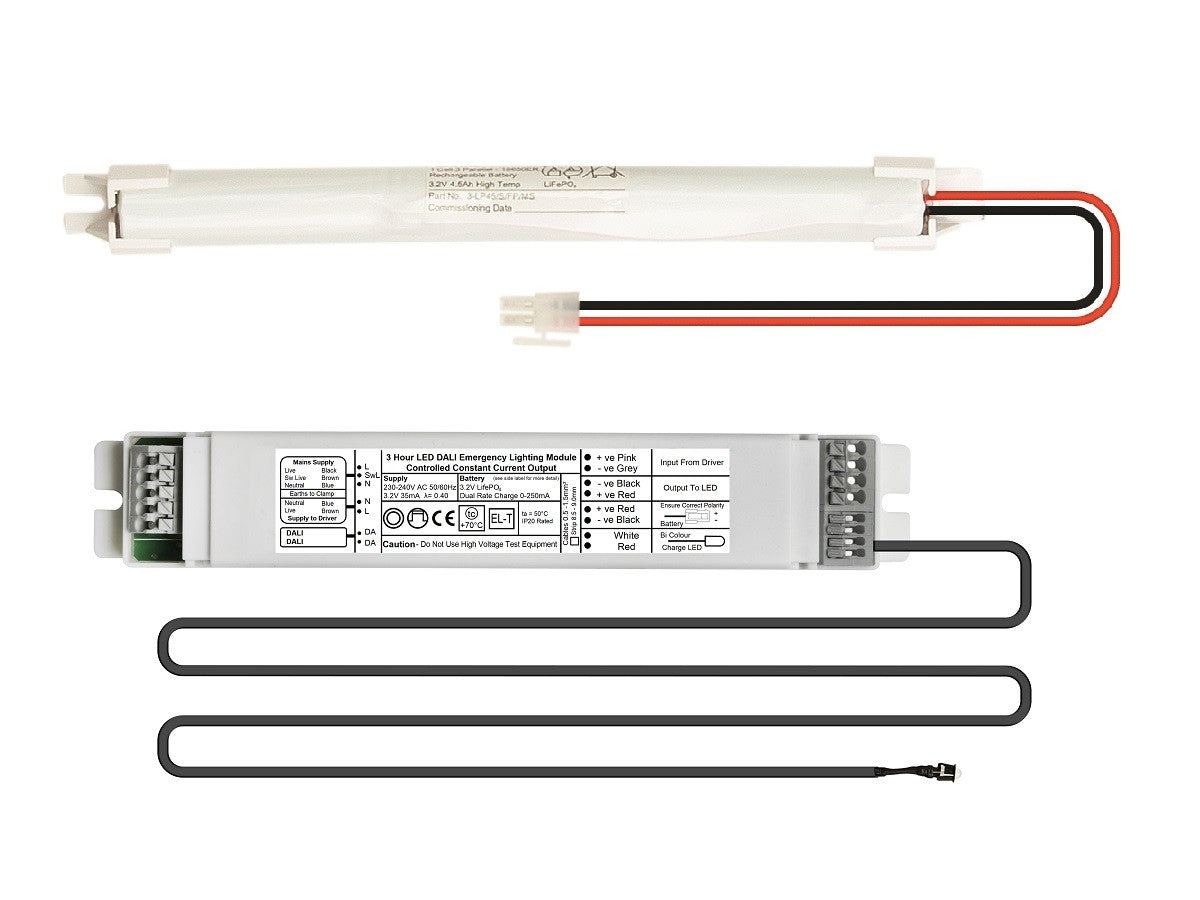

D2N/1-K Module, single cell battery and charge LED indicator for LED loads from 6-55Vf
D2N/1S/80-K Module, three cell battery and charge LED indicator for LED loads from 6-80Vf

D2N/1 DALI-2 Addressable Conversion

Product form

SKU: D2N/1-K

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£50.00 Excl. VAT

(inc. 20% VAT): £60.00

    • Contact us to confirm availability
      Downloads

    3 hour DALI-2 self-test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits. The... Read more

    Description

    3 hour DALI-2 self-test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits. The D2N/1 and D2N/1S/80 automatically adjust the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The D2N/1 will operate LED loads between 6-55V forward and the D2N/1S/80 will operate LED loads between 6 and 80V forward. Suitable to operate with the LiteMesh wireless system.

    net-19-33-17

    This product is fully DALI-2 compliant and in keeping with the DALI-2 Standard, if the module is commissioned without a DALI control system present, the unit will revert to standalone self-test, indicating its faults via the charge LED.

    The D2N range has been independently certified by TÜV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.

    D2N/1 DALI-2 Addressable Conversion

    Specifications

    • DiiA Registered DALI-2 Device
    • 2-pole Changeover Relay
    • Additional 3rd Pole Relay for Driver Protection
    • Deep Discharge Protection
    • Intelligent, Low Energy, Charging Circuit
    • Extra Long Life LiFePO4 Cells
    • Slim Module for Integral Mounting
    • D2N/1 – Average Emergency Output of 2.2W
    • D2N/1S – Average Emergency Output of 2.6W
    • Can Operate with the LiteMesh Wireless System
    • TÜV Tested and Certified
    • LiFePO4 Automatic Battery Protection and Recovery
    D2N/1D2N/1S/80
    LED Voltage Range 6-55V6-80V
    I Rated 352mA – 40mA410mA – 33mA
    P Rated 2.2W2.6W
    LED Voltage Limit 55V80V
    Battery Discharge Current 950mA1.1A
    Mains Supply 230-240V AC 50/60Hz
    Power Rating 1.4W 12mA λ = 0.48
    Charge Current 225mA nominal
    Recharge Period 24-hours
    Battery Pack 3.2V 3.8Ah LiFePO43.2V 4.8Ah LiFePO4
    Battery Cut Off 2.5V
    Ambient Temperature (Ta) Module and Battery 5-35°C
    Case Temperature (Tc) Battery 5-55°C, Module 5-70°C
    Integral Kit Size Module – 178mm x 30mm x 22.5mm FC=172mm /1 Battery – 90mm 28mm Ø /1S Battery – 230mm x 24mm x 21mm

    Order Codes


    Order Code

    		 Description

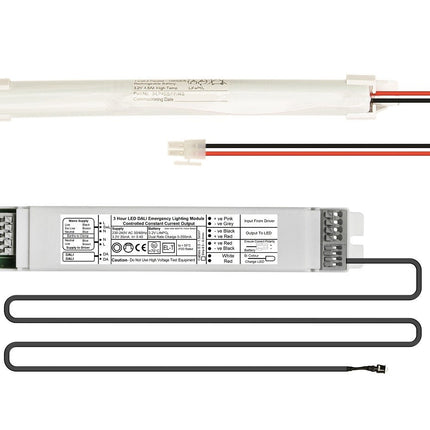

    D2N/1-K Module, single cell battery and charge LED indicator for LED loads from 6-55Vf
    D2N/1S/80-K Module, three cell battery and charge LED indicator for LED loads from 6-80Vf
