D2N/1/TP40

Description

DALI Alliance DALI-2 Registered Device.

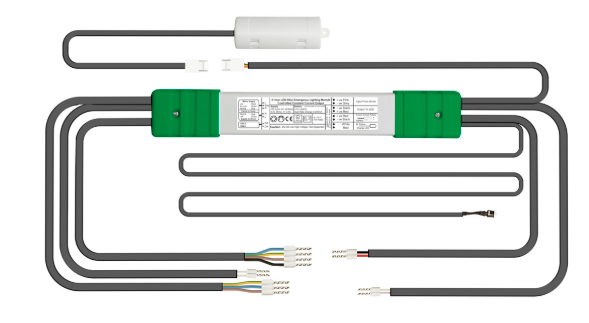

A 3-hour DALI-2 self-test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits. The D2N/1/TP40/R and D2N/1S/80/TP40/R automatically adjust the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The D2N/1/TP40/R and D2N/1S/80/TP40/R will operate LED loads between 6-60V forward and the D2N/1/TP40/R and the D2N/1S/80/TP40/R will operate LED loads between 6 and 80V forward. This product is fully DALI-2 compliant and in keeping with the DALI-2 Standard, if the module is commissioned without a DALI control system present, the unit will revert to standalone self-test, indicating its faults via the charge LED. This unit is designed to be mounted adjacent to the fitting in the ceiling void where there is insufficient room inside the luminaire to house the control gear. The packs will pass through a 40mm aperture. All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month. The D2N range has been independently certified by TÜV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.

D2N/1/TP40

Product form

SKU: D2N/1/TP40
Barcode: D2N/1/TP40

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£70.00 Excl. VAT

(inc. 20% VAT): £84.00

    • Contact us to confirm availability
      Downloads

    DALI Alliance DALI-2 Registered Device. A 3-hour DALI-2 self-test emergency lighting conversion kit, designed to suit an extremely wide range... Read more

    Description

    DALI Alliance DALI-2 Registered Device.

    A 3-hour DALI-2 self-test emergency lighting conversion kit, designed to suit an extremely wide range of LED types and circuits. The D2N/1/TP40/R and D2N/1S/80/TP40/R automatically adjust the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The D2N/1/TP40/R and D2N/1S/80/TP40/R will operate LED loads between 6-60V forward and the D2N/1/TP40/R and the D2N/1S/80/TP40/R will operate LED loads between 6 and 80V forward. This product is fully DALI-2 compliant and in keeping with the DALI-2 Standard, if the module is commissioned without a DALI control system present, the unit will revert to standalone self-test, indicating its faults via the charge LED. This unit is designed to be mounted adjacent to the fitting in the ceiling void where there is insufficient room inside the luminaire to house the control gear. The packs will pass through a 40mm aperture. All our batteries feature temperature monitoring. In keeping with the latest update to BS EN 61347-2-7 Their associated modules will stop charging the cells if their case temperature falls below 0°C or rises above 55°C. The emergency packs will continue to operate where required, providing their is enough capacity remaining in the battery. Our lithium iron phosphate cells feature a low self-discharge of 5% per month. The D2N range has been independently certified by TÜV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.
