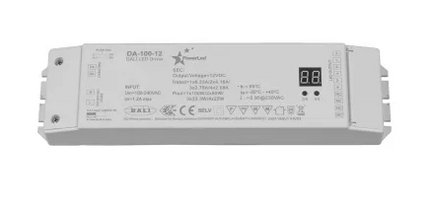

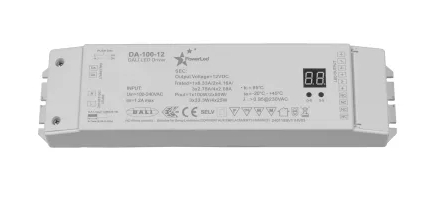

DA-100-12

DA-50 SPECIFICATION
Key Features:
• DALI2 compatible LED driver
• Dimmable with DALI signal
• Dimming range 0 ~ 100%
• Compact design
• Protection: Short circuit, overload and over temperature
• Class II power unit
RATED
IP20
50W Constant Voltage DALI dimming driver
Part Code DA-50-12 DA-50-24
Input Voltage 200~240VAC 200~240VAC
Frequency 50~60Hz 50~60Hz
Power Factor 0.95 0.95
Output Voltage 12VDC 24VDC
Output Current 0~4.16A 0~2.08A
Rated Power 50W 50W
Efficiency     >88%     >88%
No Load Power <0.5W <0.5W
Output Channels 2x2.08A 2x1.04A
Overload Protection Automatically recovers after fault condition is removed
Short Circuit Constant current limiting, automatically recovers after fault condition is removed
Over Temperature Automatically recovers when temperature is reduced
Dimming Control DALI & DALI2 input signal
Temperature Range -20°C ~ +45°C
Storage Temperature -40°C ~ +80°C
Safety Standard Designed to meet EN61347-1:2001, EN61347-2-13:2001
