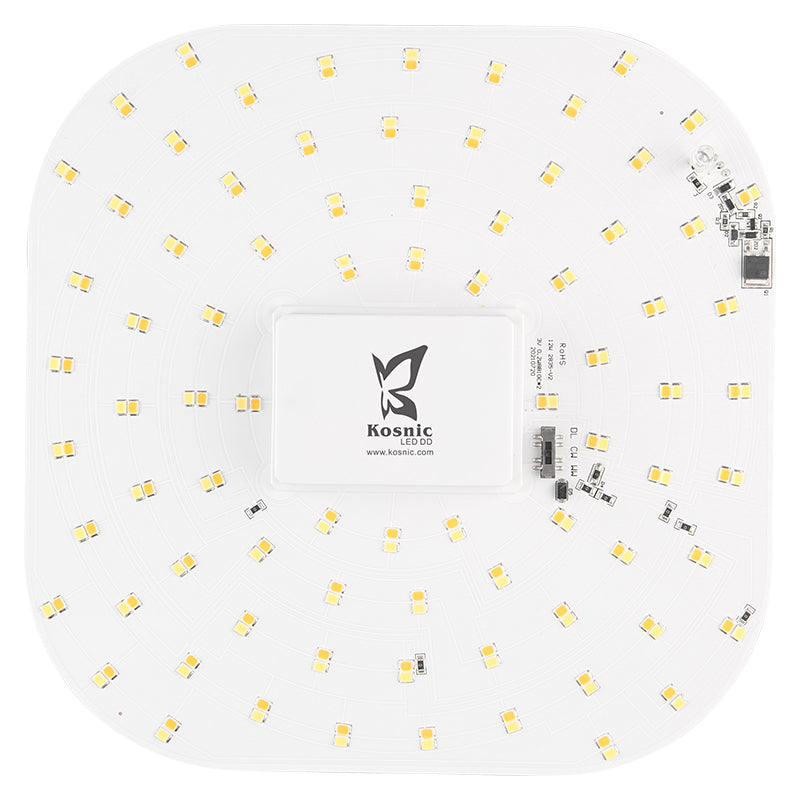

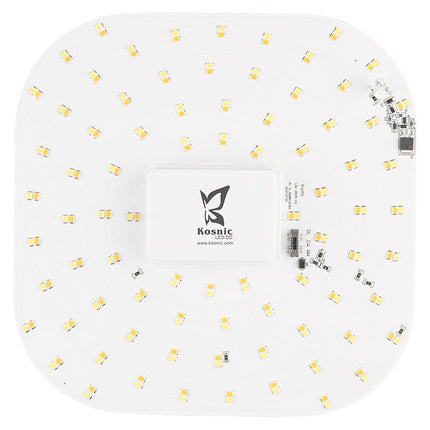

DD Standard II 18W LED DD Lamp, 4pin, 30000hrs, Switchable CCT

Description

Kosnic’s range of LED DD lamps takes a fresh approach to functional lighting with a design philosophy offering plug-in emergency packs and optional microwave sensor versions so that there are no barriers to retrofitting LEDs in commercial fittings. The products bring the energy saving capabilities of LED technology to the commercial environment and the lamps can quickly replace fluorescent DD lamps with little or no rewiring.

Datasheet
View in Catalogue

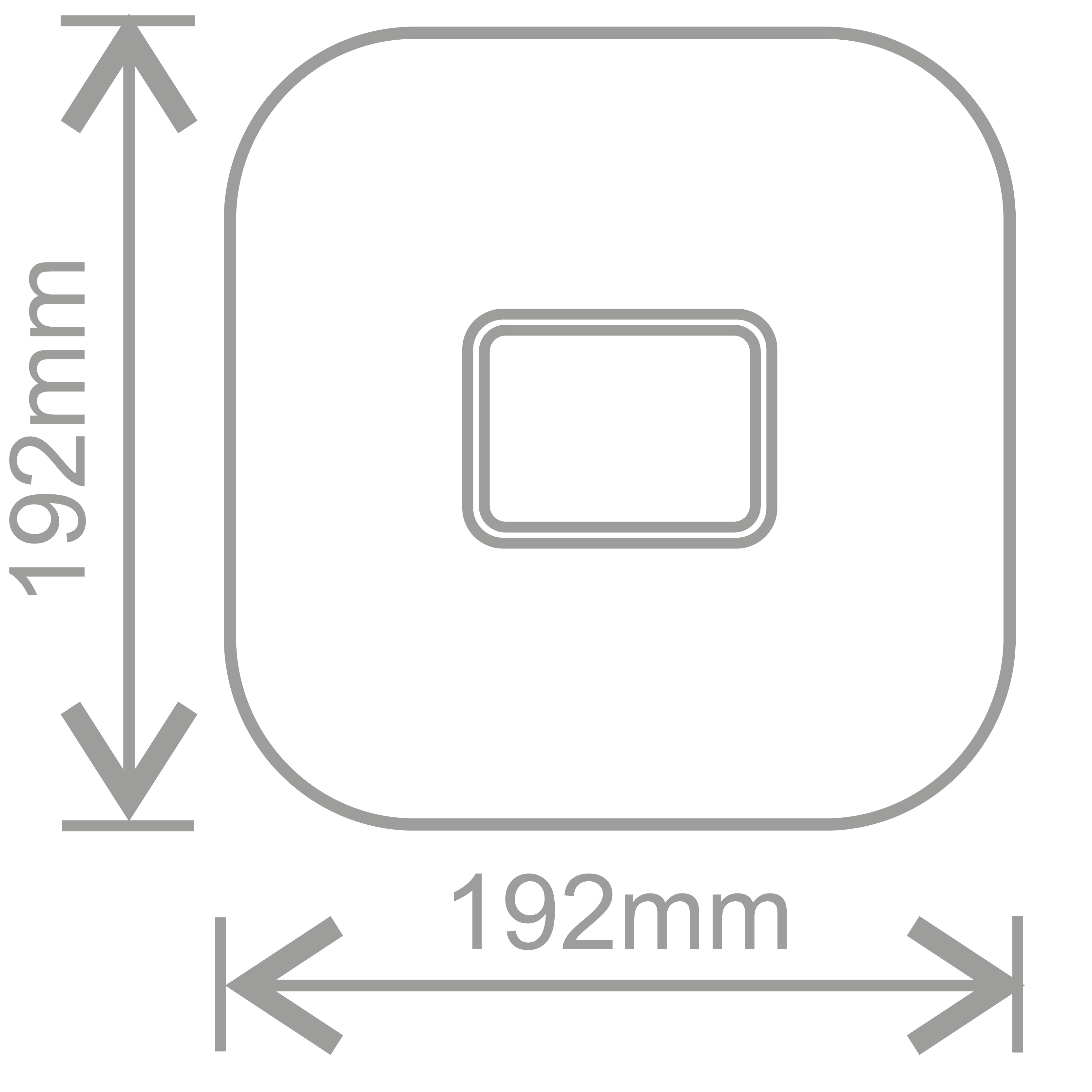

Technical Drawing

Additional information

CCT

4000 (2700, 6500)
Rated Power (W)

18
Current (mA)

83
CCT Words

Cool White (Warm White / Day Light)
CCT (K)

4000 (2700, 6500)
Total Luminous Flux (lm)

2400 (2100, 2100)
Nominal Lifetime (h)

30000
L70B50 Lifetime (h)

54000
L80B10 Lifetime (h)

54000
L90 Lifetime (h)

42000
Blue Light Hazard

RG1
Power Factor

0.94
Dimensions L x W x D (mm)

33*φ192mm
Weight (kg)

0.15
Lighting Technology Used

LED
Mains / Non-Mains (MLS/NMLS)

MLS
Connected Light source (Y/N)

N
Anti-Glare Shield (Y/N)

N
Useful Luminous Flux (lm)

2400 (2210, 2210)
On-Mode Power (Pon) (W)

18
Standby Power (Psb) (W)

0
CRI

82
CRI (min)

80
CRI (max)

84
Height (mm)

33
Width (mm)

192
Depth (mm)

192
Equivalent Power (W)

N/A
Beam Angle (DLS)

N/A
Beam Angle (min)(DLS)

N/A
Beam Angle (max) (DLS)

N/A
R9 CRI (LED/OLED)

32 (9, 11)
Survival Factor (x.xx)

0.9
Displacement Factor

0.94
Energy Efficiency Class

E
Voltage

220-240Vac 50/60Hz
Product Range

LED Commerical Lamp
Product Name

DD Standard
Product Warranty

5 Years
On-Site Warranty

3 Years



Description

• Compatible with Kosnic LED DD lamps for maintained or non-maintained emergency lighting
• Automatic Self-Test (AST) technology conforming to EN 62034
• Conforms to EN 61347-1, EN 61347-2-7 and EN 61347-2-13
• Voltage change-over threshold according to EN 60598-2-22
• 3 hours rated duration
• LiFePO4 battery – improved battery lifespan allowing frequent partial discharge without capacity reduction
• Over-charge, over-current, short-circuit and deep discharge protection for battery
• Constant current output
• Charging status LED built into DD lamp
• For built-in use
• Supplied with internal battery and all necessary leads and connectors

Additional information

Product Range

Emergency
Product Name

DD EME
UEM/EME Input Voltage

220-240 Vac 50-60 Hz
UEM/EME Output Wattage (W)

2
UEM/EME Output Voltage (Vdc)

24-54
UEM/EME Output Current (mA)

25-54
UEM/EME Protection

IP20, For built-in installation
UEM/EME Battery

Li-Ion KBAT2600LI1
UEM/EME Charging Time (h)

24
UEM/EME Battery Life (Years)

4
UEM/EME Test Function

Automatic and Manual
UEM/EME Weight (g)

132
Product Warranty

4 Years
On-Site Warranty

2 Years
Battery Warranty

4 Years

DD Standard II 18W LED DD Lamp, 4pin, 30000hrs, Switchable CCT

Product form

SKU: DD18/4P-SCT

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£21.86 Excl. VAT

(inc. 20% VAT): £26.23

    • Contact us to confirm availability
      Downloads

    Kosnic’s range of LED DD lamps takes a fresh approach to functional lighting with a design philosophy offering plug-in emergency... Read more

    Description

    Kosnic’s range of LED DD lamps takes a fresh approach to functional lighting with a design philosophy offering plug-in emergency packs and optional microwave sensor versions so that there are no barriers to retrofitting LEDs in commercial fittings. The products bring the energy saving capabilities of LED technology to the commercial environment and the lamps can quickly replace fluorescent DD lamps with little or no rewiring.

    Datasheet
    View in Catalogue
    Technical Drawing

    Additional information

    CCT

    4000 (2700, 6500)
    Rated Power (W)

    18
    Current (mA)

    83
    CCT Words

    Cool White (Warm White / Day Light)
    CCT (K)

    4000 (2700, 6500)
    Total Luminous Flux (lm)

    2400 (2100, 2100)
    Nominal Lifetime (h)

    30000
    L70B50 Lifetime (h)

    54000
    L80B10 Lifetime (h)

    54000
    L90 Lifetime (h)

    42000
    Blue Light Hazard

    RG1
    Power Factor

    0.94
    Dimensions L x W x D (mm)

    33*φ192mm
    Weight (kg)

    0.15
    Lighting Technology Used

    LED
    Mains / Non-Mains (MLS/NMLS)

    MLS
    Connected Light source (Y/N)

    N
    Anti-Glare Shield (Y/N)

    N
    Useful Luminous Flux (lm)

    2400 (2210, 2210)
    On-Mode Power (Pon) (W)

    18
    Standby Power (Psb) (W)

    0
    CRI

    82
    CRI (min)

    80
    CRI (max)

    84
    Height (mm)

    33
    Width (mm)

    192
    Depth (mm)

    192
    Equivalent Power (W)

    N/A
    Beam Angle (DLS)

    N/A
    Beam Angle (min)(DLS)

    N/A
    Beam Angle (max) (DLS)

    N/A
    R9 CRI (LED/OLED)

    32 (9, 11)
    Survival Factor (x.xx)

    0.9
    Displacement Factor

    0.94
    Energy Efficiency Class

    E
    Voltage

    220-240Vac 50/60Hz
    Product Range

    LED Commerical Lamp
    Product Name

    DD Standard
    Product Warranty

    5 Years
    On-Site Warranty

    3 Years



    Description

    • Compatible with Kosnic LED DD lamps for maintained or non-maintained emergency lighting
    • Automatic Self-Test (AST) technology conforming to EN 62034
    • Conforms to EN 61347-1, EN 61347-2-7 and EN 61347-2-13
    • Voltage change-over threshold according to EN 60598-2-22
    • 3 hours rated duration
    • LiFePO4 battery – improved battery lifespan allowing frequent partial discharge without capacity reduction
    • Over-charge, over-current, short-circuit and deep discharge protection for battery
    • Constant current output
    • Charging status LED built into DD lamp
    • For built-in use
    • Supplied with internal battery and all necessary leads and connectors

    Additional information

    Product Range

    Emergency
    Product Name

    DD EME
    UEM/EME Input Voltage

    220-240 Vac 50-60 Hz
    UEM/EME Output Wattage (W)

    2
    UEM/EME Output Voltage (Vdc)

    24-54
    UEM/EME Output Current (mA)

    25-54
    UEM/EME Protection

    IP20, For built-in installation
    UEM/EME Battery

    Li-Ion KBAT2600LI1
    UEM/EME Charging Time (h)

    24
    UEM/EME Battery Life (Years)

    4
    UEM/EME Test Function

    Automatic and Manual
    UEM/EME Weight (g)

    132
    Product Warranty

    4 Years
    On-Site Warranty

    2 Years
    Battery Warranty

    4 Years
