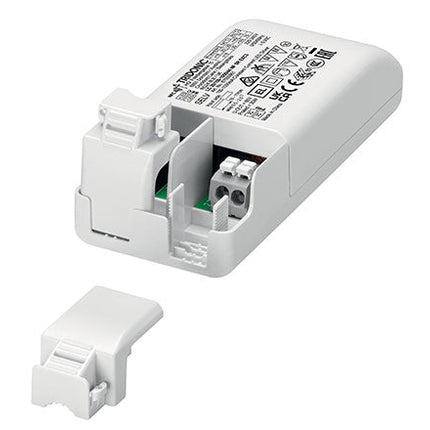

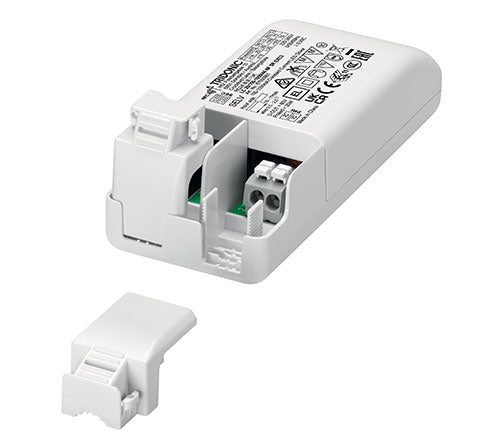

Driver LC 20W 100-1050mA 44V NF SR EXC3 excite series 87500961

Description

Product description

  • Independent constant current LED driver
  • Output current adjustable between 100 – 1,050 mA with NFC
  • Max. output power 20 W
  • Up to 81 % efficiency
  • Nominal lifetime up to 100,000 h
  • 5 years guarantee

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20
  • Toolless mounting of strain relief

Interfaces

  • Near field communication (NFC)

Functions

  • Adjustable output current in 1-mA-steps (NFC)
  • Protective features (overtemperature, short-circuit, overload, no-load)
  • Surge protection voltage 1 kV (L – N)
  • Suitable for emergency escape lighting systems acc. to EN 50172
  • For cable cross-sections up to 2.5 mm²

Benefits

  • Flexible configuration via companionSUITE (NFC)
  • Application-oriented operating window for maximum compatibility
  • New strain relief concept – fast mounting and pre-assembled connection of the LED load possible

Typical applications

  • For applications in downlight and decorative luminaires

Driver LC 20W 100-1050mA 44V NF SR EXC3 excite series 87500961

Product form

SKU: LC20/100/1050-TR
Barcode: 87500961

Trade price available - contact us

£25.52 Excl. VAT

(inc. 20% VAT): £30.62

    • Contact us to confirm availability
      Downloads

    Product description Independent constant current LED driver Output current adjustable between 100 – 1,050 mA with NFC Max. output power... Read more

    Description

    Product description

    • Independent constant current LED driver
    • Output current adjustable between 100 – 1,050 mA with NFC
    • Max. output power 20 W
    • Up to 81 % efficiency
    • Nominal lifetime up to 100,000 h
    • 5 years guarantee

    Housing properties

    • Casing: polycarbonate, white
    • Type of protection IP20
    • Toolless mounting of strain relief

    Interfaces

    • Near field communication (NFC)

    Functions

    • Adjustable output current in 1-mA-steps (NFC)
    • Protective features (overtemperature, short-circuit, overload, no-load)
    • Surge protection voltage 1 kV (L – N)
    • Suitable for emergency escape lighting systems acc. to EN 50172
    • For cable cross-sections up to 2.5 mm²

    Benefits

    • Flexible configuration via companionSUITE (NFC)
    • Application-oriented operating window for maximum compatibility
    • New strain relief concept – fast mounting and pre-assembled connection of the LED load possible

    Typical applications

    • For applications in downlight and decorative luminaires
