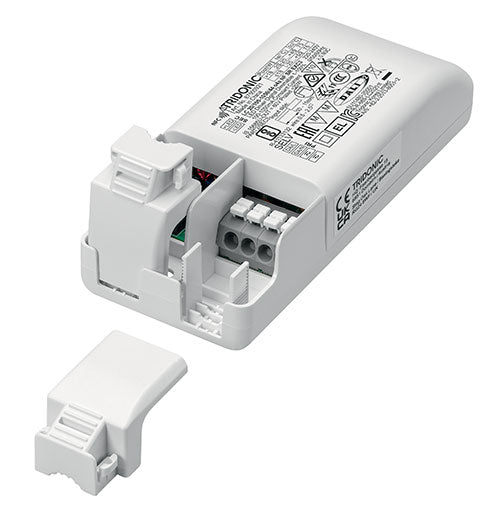

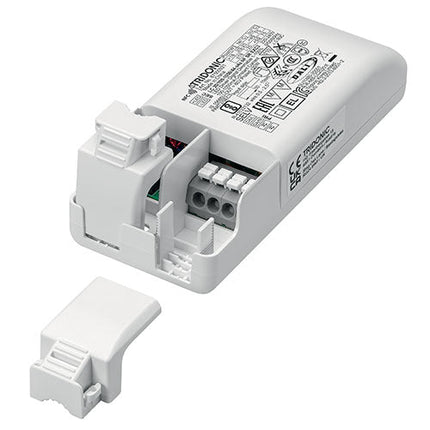

Driver LC 20W 100-1050mA 44V o4a NF SR EXC3 87500921

Description

Driver LC 20W 100-1050mA 44V o4a NF SR EXC3

excite series

Product description

  • Independent constant current LED driver
  • Dimmable via DALI-2
  • Dimming range 1 to 100 % (min. 5 mA)
  • Output current adjustable between 100 – 1,050 mA with DALI or NFC
  • Max. output power 20 W
  • Up to 85 % efficiency
  • Power input on stand-by < 0.4 W
  • Nominal lifetime up to 100,000 h
  • 5 years guarantee

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20
  • Toolless mounting of strain relief

Interfaces

  • Near field communication (NFC)
  • one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION V2)

Functions

  • Adjustable output current in 1-mA-steps (NFC, DALI-2)
  • Constant light output function (CLO)
  • Protective features (overtemperature, short-circuit, overload, no-load)
  • Surge protection voltage 1 kV (L – N)
  • Suitable for emergency escape lighting systems acc. to EN 50172
  • For cable cross-sections up to 2.5 mm²

Benefits

  • Flexible configuration via companionSUITE (NFC, DALI-2)
  • Application-oriented operating window for maximum compatibility
  • New strain relief concept – fast mounting and pre-assembled connection of the LED load possible

Typical applications

  • For applications in downlight and decorative luminaires

Driver LC 20W 100-1050mA 44V o4a NF SR EXC3 87500921

Product form

SKU: LC201050OFA-TR
Barcode: 87500921

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£24.93 Excl. VAT

(inc. 20% VAT): £29.92

    • Contact us to confirm availability
      Downloads

    Driver LC 20W 100-1050mA 44V o4a NF SR EXC3 excite series Product description Independent constant current LED driver Dimmable via... Read more
