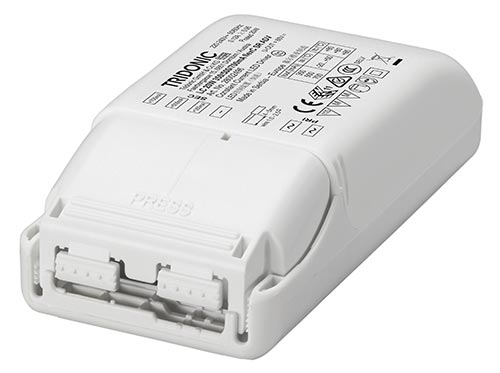

Driver LC 20W 350/500/700mA flexC SR ADV 28002496

Description

Product description

  • Independent fixed output LED Driver
  • For luminaires of protection class I and protection class II
  • For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
  • Temperature protection as per EN 61347-2-13 C5e
  • Selectable output current between 350, 500 and 700 mA
  • Max. output power 20 W
  • Up to 85 % efficiency
  • Nominal lifetime up to 50,000 h
  • 5 years guarantee

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20

Interfaces

  • Terminal blocks: 0° screw terminals

Functions

  • Overload protection
  • Short-circuit protection
  • No-load protection
  • Overtemperature protection
  • Burst protection voltage 1 kV
  • Burst protection voltage 1 kV (L to N)
  • Surge protection voltage 2 kV (L/N to earth)

Typical applications

  • For spot light and downlight in retail and hospitality applications
  • For panel light and area light in office and education application

Driver LC 20W 350/500/700mA flexC SR ADV 28002496

Product form

SKU: LC20350/500/700Flex
Barcode: 28002496

Trade price available - contact us

£18.70 Excl. VAT

(inc. 20% VAT): £22.44

    • Contact us to confirm availability
      Downloads

    Product description Independent fixed output LED Driver For luminaires of protection class I and protection class II For luminaires with... Read more

    Description

    Product description

    • Independent fixed output LED Driver
    • For luminaires of protection class I and protection class II
    • For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
    • Temperature protection as per EN 61347-2-13 C5e
    • Selectable output current between 350, 500 and 700 mA
    • Max. output power 20 W
    • Up to 85 % efficiency
    • Nominal lifetime up to 50,000 h
    • 5 years guarantee

    Housing properties

    • Casing: polycarbonate, white
    • Type of protection IP20

    Interfaces

    • Terminal blocks: 0° screw terminals

    Functions

    • Overload protection
    • Short-circuit protection
    • No-load protection
    • Overtemperature protection
    • Burst protection voltage 1 kV
    • Burst protection voltage 1 kV (L to N)
    • Surge protection voltage 2 kV (L/N to earth)

    Typical applications

    • For spot light and downlight in retail and hospitality applications
    • For panel light and area light in office and education application
