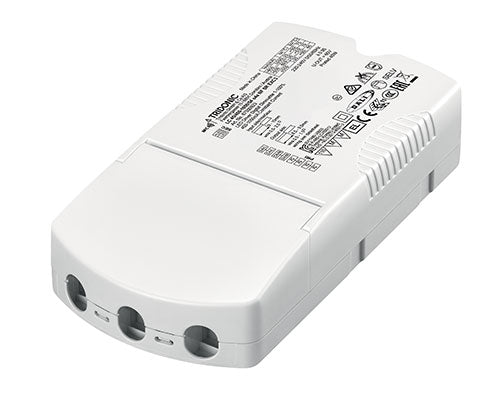

87500923 LC 45/450-1050/54 o4a NF SR EXC3

Description

Product description

  • Independent constant current LED driver
  • Dimmable via DALI-2
  • Dimming range 1 to 100 % (min. 5 mA)
  • Output current adjustable between 450 – 1,050 mA with DALI or NFC
  • Max. output power 45 W
  • Up to 88 % efficiency
  • Power input on stand-by < 0.5 W
  • Nominal lifetime up to 100,000 h
  • 5 years guarantee

Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20
  • Strain relief with loop through function

Interfaces

  • Near field communication (NFC)
  • one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION V2)

Functions

  • Adjustable output current in 1-mA-steps (NFC, DALI-2)
  • Constant light output function (CLO)
  • Protective features (overtemperature, short-circuit, overload, no-load)
  • Surge protection voltage 1 kV (L – N)
  • Suitable for emergency escape lighting systems acc. to EN 50172
  • For cable cross-sections up to 2.5 mm²

Benefits

  • Flexible configuration via companionSUITE (NFC, DALI-2)
  • Application-oriented operating window for maximum compatibility

Typical applications

  • For applications in downlight and decorative luminaires

87500923 LC 45/450-1050/54 o4a NF SR EXC3

Product form

SKU: LC45105054OFA-TR
Barcode: 87500923

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£26.31 Excl. VAT

(inc. 20% VAT): £31.57

    • Contact us to confirm availability
      Downloads

    Product description Independent constant current LED driver Dimmable via DALI-2 Dimming range 1 to 100 % (min. 5 mA) Output... Read more

    Description

    Product description

    • Independent constant current LED driver
    • Dimmable via DALI-2
    • Dimming range 1 to 100 % (min. 5 mA)
    • Output current adjustable between 450 – 1,050 mA with DALI or NFC
    • Max. output power 45 W
    • Up to 88 % efficiency
    • Power input on stand-by < 0.5 W
    • Nominal lifetime up to 100,000 h
    • 5 years guarantee

    Housing properties

    • Casing: polycarbonate, white
    • Type of protection IP20
    • Strain relief with loop through function

    Interfaces

    • Near field communication (NFC)
    • one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION V2)

    Functions

    • Adjustable output current in 1-mA-steps (NFC, DALI-2)
    • Constant light output function (CLO)
    • Protective features (overtemperature, short-circuit, overload, no-load)
    • Surge protection voltage 1 kV (L – N)
    • Suitable for emergency escape lighting systems acc. to EN 50172
    • For cable cross-sections up to 2.5 mm²

    Benefits

    • Flexible configuration via companionSUITE (NFC, DALI-2)
    • Application-oriented operating window for maximum compatibility

    Typical applications

    • For applications in downlight and decorative luminaires
