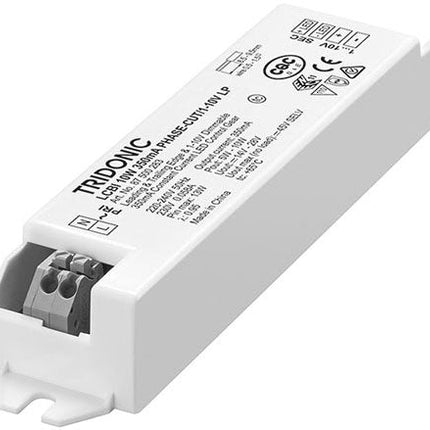

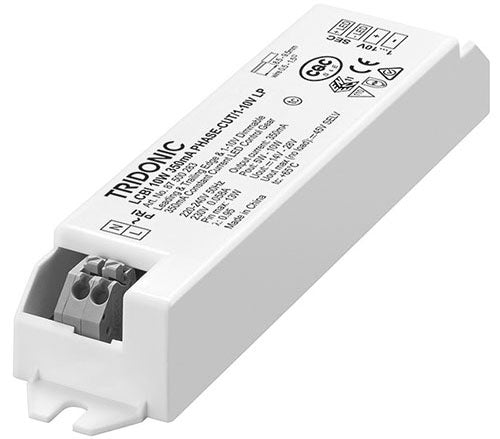

Driver LCBI 10W 180/350/500mA PHASE-CUT/1–10V lp

advanced series

Product description

• Dimmable built-in constant current LED driver
• Constant current LED driver
• Dimmable via leading edge and trailing edge phase dimmers
• Dimmable via 1 ... 10 V
• Output dimmed analogue (current amplitude)
• Dimming range typ. 10 to 100 % (depending on dimmer)
• For luminaires of protection class I and protection class II
• Temperature protection as per EN 61347-2-13 C5e
• SELV
• Output current 180, 350 or 500 mA
• Output power 10 W
• Nominal lifetime up to 50,000 h
• 5 years guarantee

Housing properties

• Casing: polycarbonate, white
• Type of protection IP20
• Push-in terminals

Functions

• Overload protection
• Short-circuit protection
• No-load protection
• No output current overshoot at mains on/off
