Description

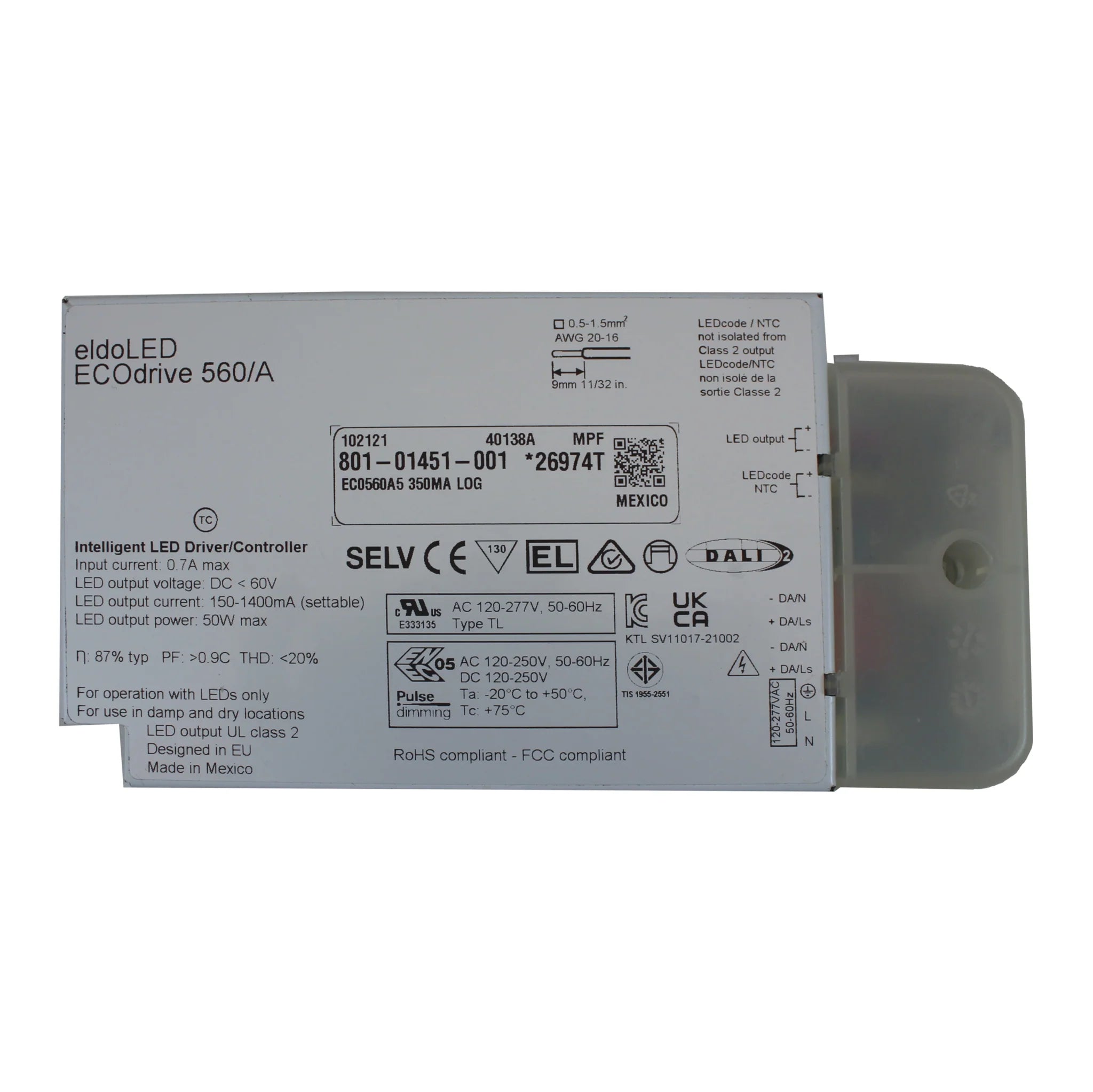

ECODRIVE 560A/700 SET TO 700MAH
As standard the ECOdrive product will be sent out pre-configured for 350mA current. The current is settable at any interval between 150mA and 1400mA, however to carry out this adjustment you will require the TOOLbox pro accessory as well as a suitable computer.
If you would prefer, we can pre-configure the drivers to your requirements for an additional £1.50+vat per driver. Please click here for this service.
Programmable digital ECOdrive LED driver providing standard LED fixtures with the smoothest flicker-free dimming to 1% light output, delivering value to any application. The LED driver is compatible with the DALI-2 lighting control protocol, and works seamlessly together with LED modules, controls and intelligent luminaire elements.
Features & Benefits
Natural dimming - Dim to 1%, smooth brightness changes, excellent flicker performance, adaptable dimming curves, configurable minimum dimming level
LEDcode - LEDcode2 connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices
Programmable - Fine-tune your driver for any application
Performance - Universal input voltage range, low inrush current and total harmonic distortion (THD), high power factor and efficiency
Camera compatibility - Hybrid HydraDrive technology is proven to work in TV studios and security camera environments
Pulse dimming - Different switching and dimming functions are initiated by pressing and holding the standard mains voltage switch for varying lengths of time
Input Characteristics
Nominal input voltage range AC: 120 - 250V (ENEC), 120 - 277V (UL)
Nominal input voltage range DC: 120 - 250V
Maximum input current: 0.65A @ 120V / 0.36A @ 230V / 0.3A @ 277V
Input frequency range: 50 - 60Hz
Output Characteristics
Maximum LED output power: 50W
Number of LED outputs: 1 (UL Class 2)
Programmable LED output current range: 150 - 1400mA
LED output type: Programmable in 1mA increments within specified current range
LED output current tolerance: +/- 5% at programmed LED output current
LED output voltage range: 2 - 55V
