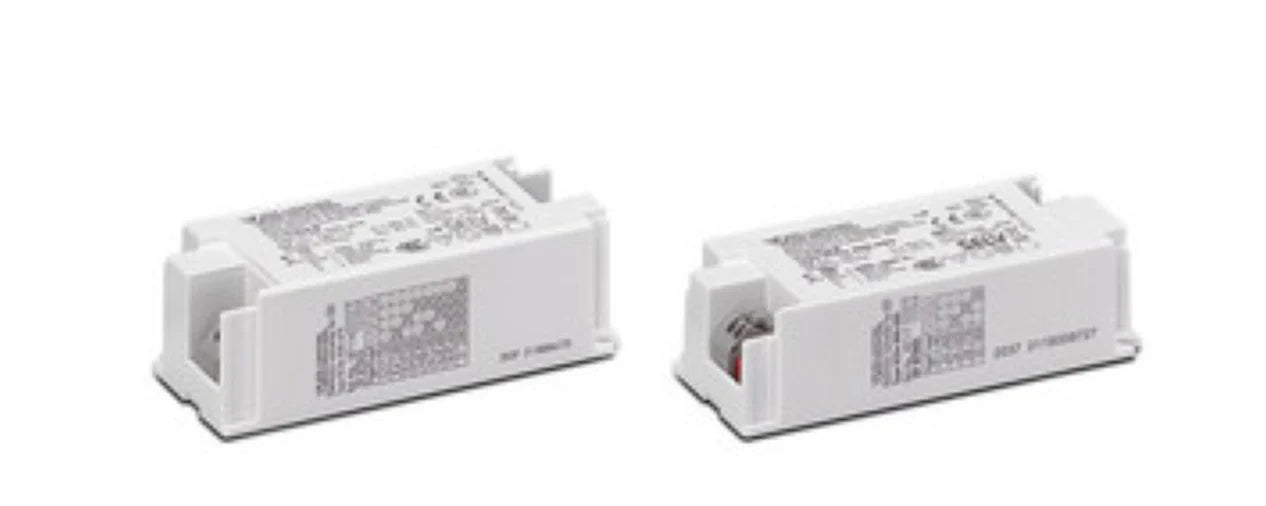

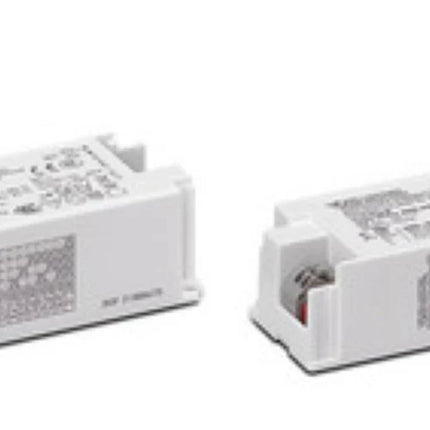

ECXE500.479 187116 Vossloh Schwabe constant current non dimmable LED driver

Description

Product features

  • Compact casing shape

Functions

  • Selectable current output by dip-switch

Electrical features

  • Mains voltage: 220–240 V ±10%
  • Mains frequency: 50–60 Hz
  • Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm²
  • Power factor at full load: > 0.95
  • Open circuit voltage (Umax.): 60 V
  • Secondary side switching of LED modules is not allowed

Safety features

  • Protection against transient main peaks up to 1 kV (between L and N)
  • Electronic short-circuit protection
  • Overload protection
  • Degree of protection: IP20
  • Protection class II
  • SELV

Dimensions

  • Length: 97 mm • Width: 43 mm • Height: 30 mm

Product guarantee

  • 5 years for operation at recommended operation temperature

ECXE500.479 187116 Vossloh Schwabe constant current non dimmable LED driver

Product form

Trade price available - contact us

£16.50 Excl. VAT

(inc. 20% VAT): £19.80

    • Contact us to confirm availability
      Downloads

    Product features Compact casing shape Functions Selectable current output by dip-switch Electrical features Mains voltage: 220–240 V ±10% Mains frequency:... Read more

    Description

    Product features

    • Compact casing shape

    Functions

    • Selectable current output by dip-switch

    Electrical features

    • Mains voltage: 220–240 V ±10%
    • Mains frequency: 50–60 Hz
    • Push-in terminals: rigid 0.5–1.5 mm² strand 0.75–1.5 mm²
    • Power factor at full load: > 0.95
    • Open circuit voltage (Umax.): 60 V
    • Secondary side switching of LED modules is not allowed

    Safety features

    • Protection against transient main peaks up to 1 kV (between L and N)
    • Electronic short-circuit protection
    • Overload protection
    • Degree of protection: IP20
    • Protection class II
    • SELV

    Dimensions

    • Length: 97 mm • Width: 43 mm • Height: 30 mm

    Product guarantee

    • 5 years for operation at recommended operation temperature
