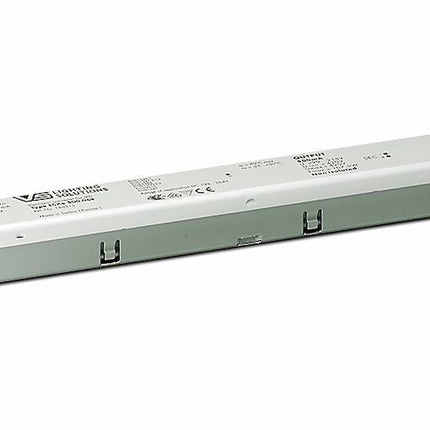

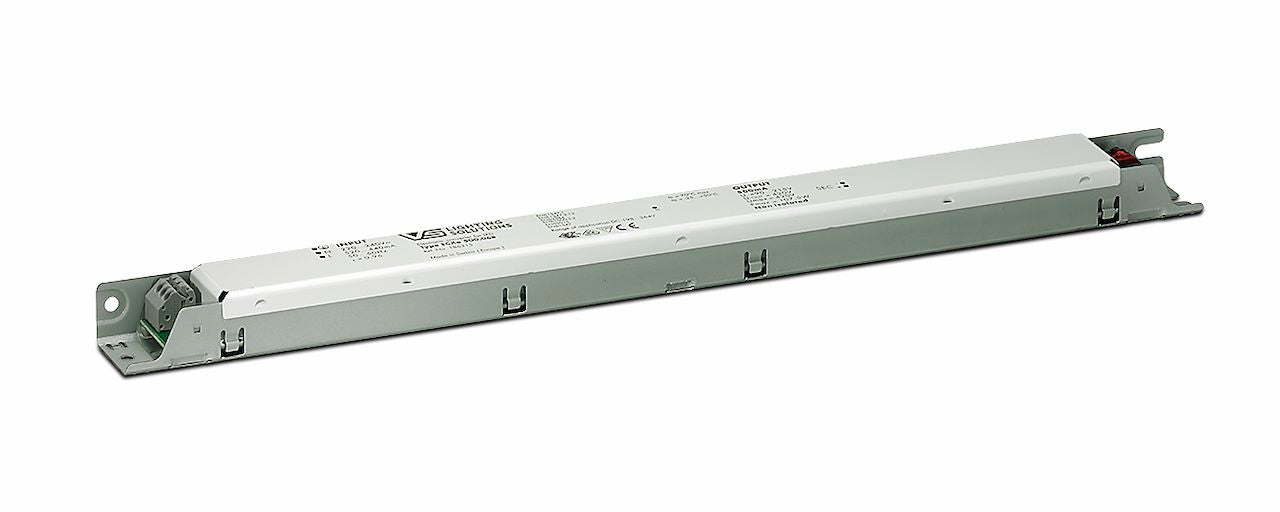

ECXe700.147 186443 Vossloh Schawbe LED 350-500-700mA Switch Selectable Driver LED 85W

Description

ComfortLine Terminal L-R1 Product features • Linear casing shape Functions • The required current output can be chosen by selecting the respective pin at the output terminal. Electrical features • Mains voltage: 220–240 V ±10% • Mains frequency: 50–60 Hz • Push-in terminals: 0.2–1.5 mm² • Power factor at full load: > 0.97 • Max. working voltage (UOUT): 250 V • Secondary side switching of LED modules is not allowed. Safety features • Protection against transient main peaks up to 1 kV (between L and N) and up to 2 kV (between L/N and PE) • Electronic short-circuit protection • Overtemperature protection • Protection against "no load" operation • Degree of protection: IP20 • Protection class I

Dimensions Casing: M10 Length: 359 mm Width: 30 mm Height: 21 mm

ECXe700.147 186443 Vossloh Schawbe LED 350-500-700mA Switch Selectable Driver LED 85W

Product form

SKU: ECXE700.147
Barcode: 186443

Trade price available - contact us

£23.49 Excl. VAT

(inc. 20% VAT): £28.19

    • Contact us to confirm availability
      Downloads

    ComfortLine Terminal L-R1 Product features • Linear casing shape Functions • The required current output can be chosen by selecting... Read more

    Description

    ComfortLine Terminal L-R1 Product features • Linear casing shape Functions • The required current output can be chosen by selecting the respective pin at the output terminal. Electrical features • Mains voltage: 220–240 V ±10% • Mains frequency: 50–60 Hz • Push-in terminals: 0.2–1.5 mm² • Power factor at full load: > 0.97 • Max. working voltage (UOUT): 250 V • Secondary side switching of LED modules is not allowed. Safety features • Protection against transient main peaks up to 1 kV (between L and N) and up to 2 kV (between L/N and PE) • Electronic short-circuit protection • Overtemperature protection • Protection against "no load" operation • Degree of protection: IP20 • Protection class I

    Dimensions Casing: M10 Length: 359 mm Width: 30 mm Height: 21 mm
