EIP009C0200LSD1L - Eaglerise Constant Current Triac Dimmable LED Driver 200mA 9W Please read description

Description

OBSOLETE, THE BELOW WILL BE SENT

Or

Alternative alternative

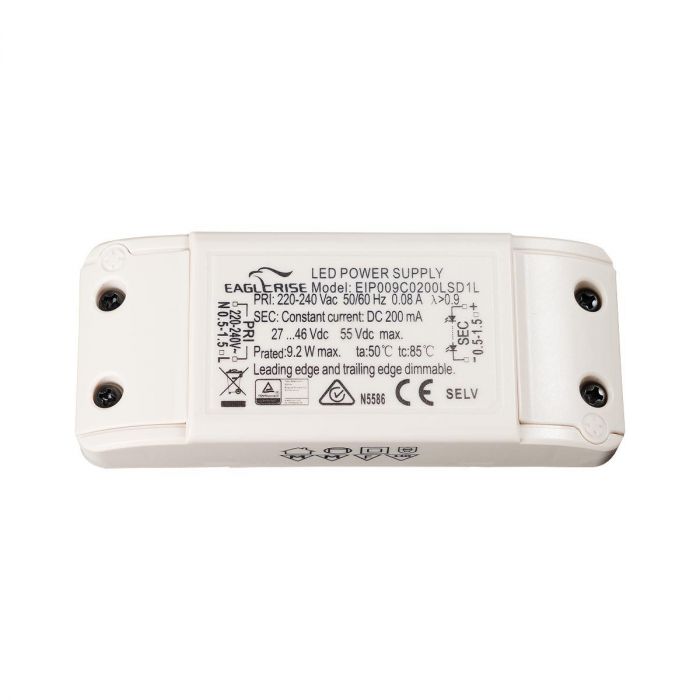

Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 200mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year Warranty
More Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 200mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf

EIP009C0200LSD1L - Eaglerise Constant Current Triac Dimmable LED Driver 200mA 9W Please read description

Product form

SKU: EIP009C0200LSD1L

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£16.00 Excl. VAT

(inc. 20% VAT): £19.20

    • Contact us to confirm availability
      Downloads

    OBSOLETE, THE BELOW WILL BE SENT Or  Alternative alternative    Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 200mA... Read more

    Description

    OBSOLETE, THE BELOW WILL BE SENT

    Or

    Alternative alternative



    Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 200mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year Warranty
    More Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 200mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf
