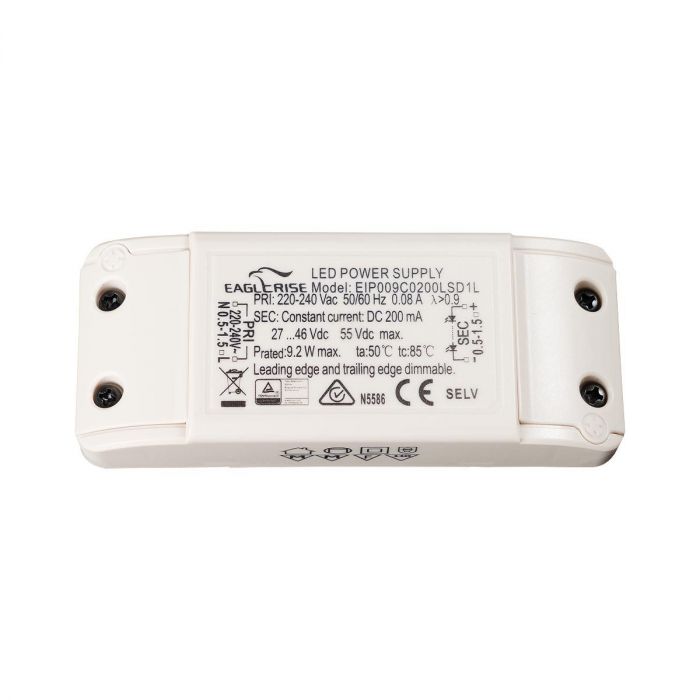

EIP009C0700LSD1L - Eaglerise Constant Current Triac Dimmable LED Driver 9W-700mA

Description

Obsolete please order  the below as an alternative and select  700Ma .

https://www.easy-controlgear.com/products/eled-20p-c250-700t-constant-current-led-drivers-10-5-20-3w?_pos=1&_sid=2e417cc1e&_ss=r



Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 700mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year Warranty
More Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 700mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf

EIP009C0700LSD1L - Eaglerise Constant Current Triac Dimmable LED Driver 9W-700mA

Product form

SKU: EIP009C0700LSD1L

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£26.62 Excl. VAT

(inc. 20% VAT): £31.94

    • Contact us to confirm availability
      Downloads

    Obsolete please order  the below as an alternative and select  700Ma .  https://www.easy-controlgear.com/products/eled-20p-c250-700t-constant-current-led-drivers-10-5-20-3w?_pos=1&_sid=2e417cc1e&_ss=r   Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED... Read more

    Description

    Obsolete please order  the below as an alternative and select  700Ma .

    https://www.easy-controlgear.com/products/eled-20p-c250-700t-constant-current-led-drivers-10-5-20-3w?_pos=1&_sid=2e417cc1e&_ss=r



    Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 700mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year Warranty
    More Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 700mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf
