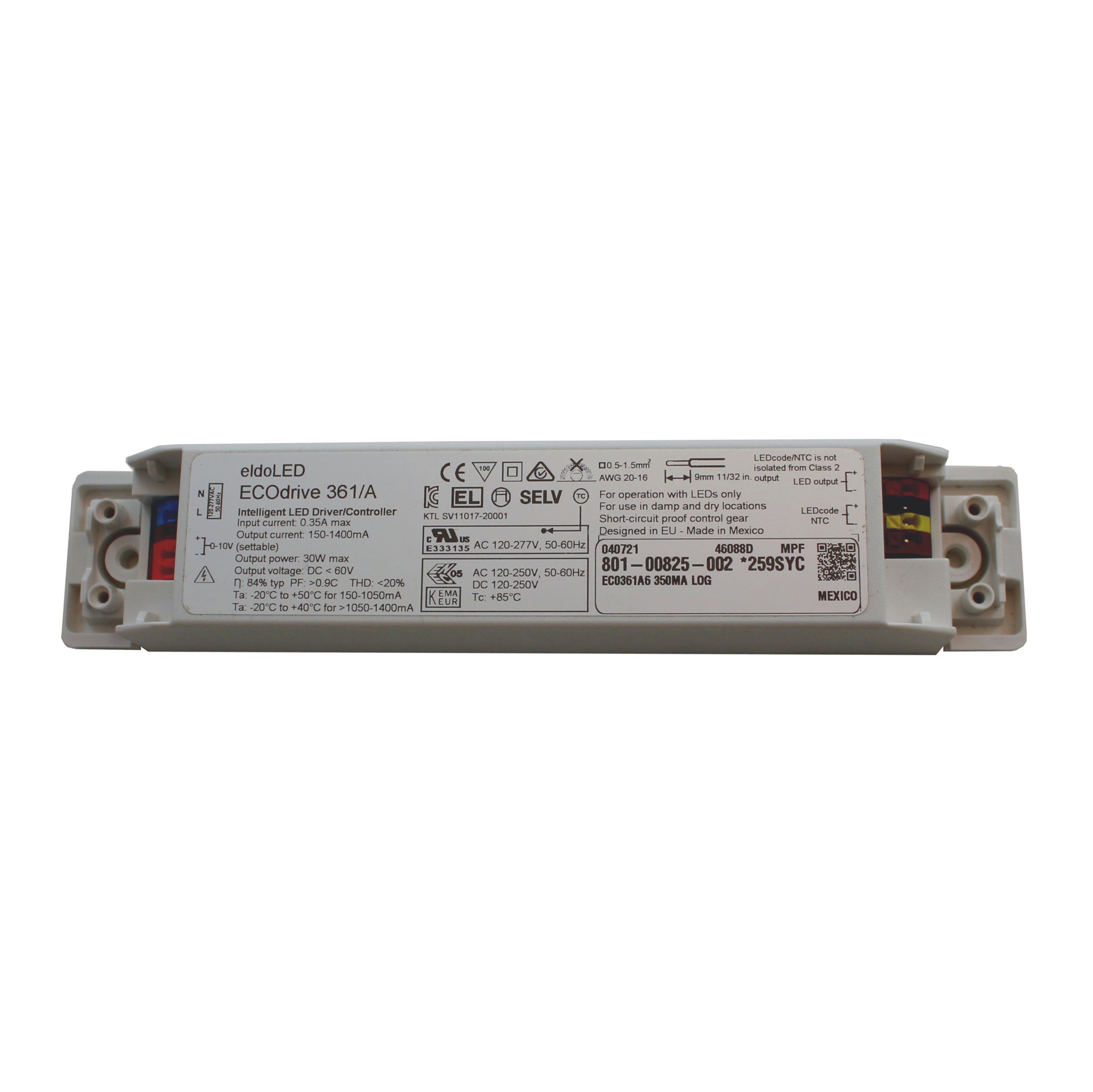

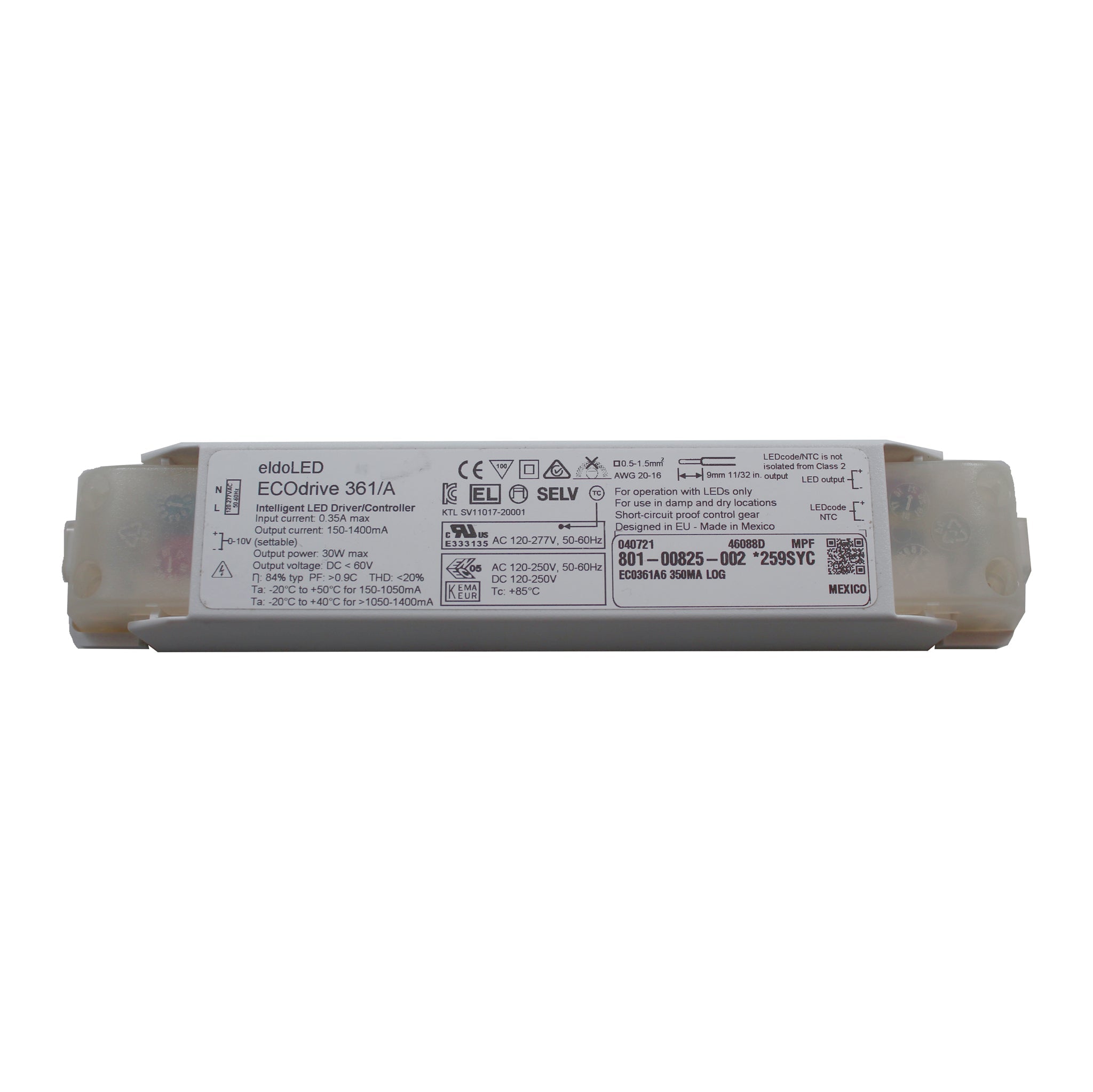

eldoLED ECOdrive 361/A6 - 30w 0-10V dimmable constant current LED driver with configuration

Description

This ECOdrive product will be configured to your required current at any interval between 150mA and 1400mA.  Please let us know your required current.
If you do not require this extra service & wish to purchase this product at the pre-configured current of 350mA.

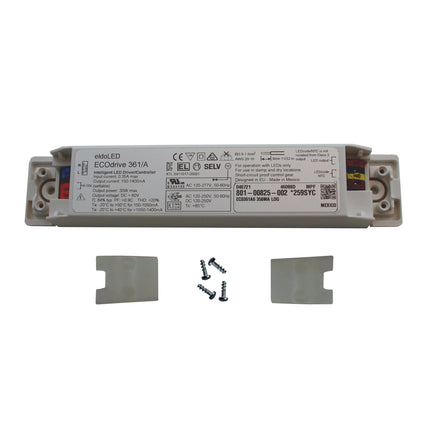

ECOdrive 361/A6 delivers 30W and is 0-10V compatible. The end caps function as wire restraints and make the driver perfectly suited for independent installations. As all ECOdrives, the 361/A6 smoothly dims down to 1%.

Features

  • Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to 1% for every fixture
  • LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
  • NTC interface for robust thermal management

Benefits

  • Increase performance and capability of any LED fixture
  • Reduce inventory and decrease lead times with configurable drivers
  • Short lead times, designed to meet the most aggressive timelines
  • Trusted brand with proven track record of performance and reliability

Input Characteristics

Nominal input voltage range AC: 120 - 250V (ENEC), 120 - 277V (UL)
Nominal input voltage range DC: 120 - 250V
Maximum input current: 0.35A @ 120V / 60Hz
Input frequency range: 50 - 60Hz

Output Characteristics

Maximum LED output power: 30W
Number of LED outputs: 1 (UL Class 2)
Programmable LED output current range: 150 - 1400mA
LED output type: Programmable in 1mA increments within specified current range
LED output current tolerance: +/- 5% at programmed LED output current
LED output voltage range: 2 - 55V

Downloads

Datasheet EC0361A6
Specification submittal sheet EC0361A6
Datasheet EC0361A5-PSE

eldoLED ECOdrive 361/A6 - 30w 0-10V dimmable constant current LED driver with configuration

Product form

SKU: EC0361A6-config

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£46.50 Excl. VAT

(inc. 20% VAT): £55.80

    • Contact us to confirm availability
      Downloads

    This ECOdrive product will be configured to your required current at any interval between 150mA and 1400mA.  Please let us... Read more

    Description

    This ECOdrive product will be configured to your required current at any interval between 150mA and 1400mA.  Please let us know your required current.
    If you do not require this extra service & wish to purchase this product at the pre-configured current of 350mA.

    ECOdrive 361/A6 delivers 30W and is 0-10V compatible. The end caps function as wire restraints and make the driver perfectly suited for independent installations. As all ECOdrives, the 361/A6 smoothly dims down to 1%.

    Features

    • Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to 1% for every fixture
    • LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
    • NTC interface for robust thermal management

    Benefits

    • Increase performance and capability of any LED fixture
    • Reduce inventory and decrease lead times with configurable drivers
    • Short lead times, designed to meet the most aggressive timelines
    • Trusted brand with proven track record of performance and reliability

    Input Characteristics

    Nominal input voltage range AC: 120 - 250V (ENEC), 120 - 277V (UL)
    Nominal input voltage range DC: 120 - 250V
    Maximum input current: 0.35A @ 120V / 60Hz
    Input frequency range: 50 - 60Hz

    Output Characteristics

    Maximum LED output power: 30W
    Number of LED outputs: 1 (UL Class 2)
    Programmable LED output current range: 150 - 1400mA
    LED output type: Programmable in 1mA increments within specified current range
    LED output current tolerance: +/- 5% at programmed LED output current
    LED output voltage range: 2 - 55V

    Downloads

    Datasheet EC0361A6
    Specification submittal sheet EC0361A6
    Datasheet EC0361A5-PSE
