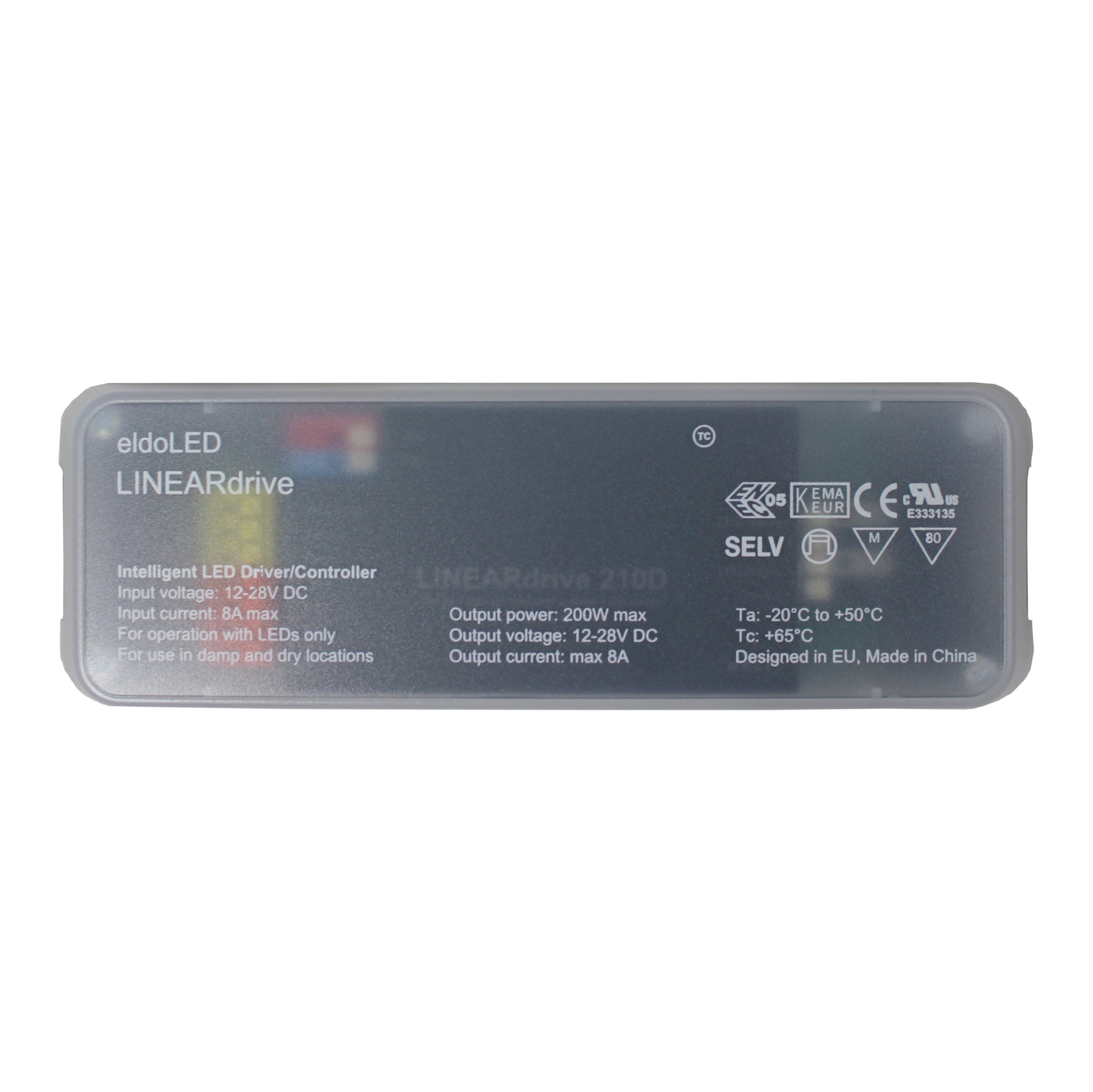

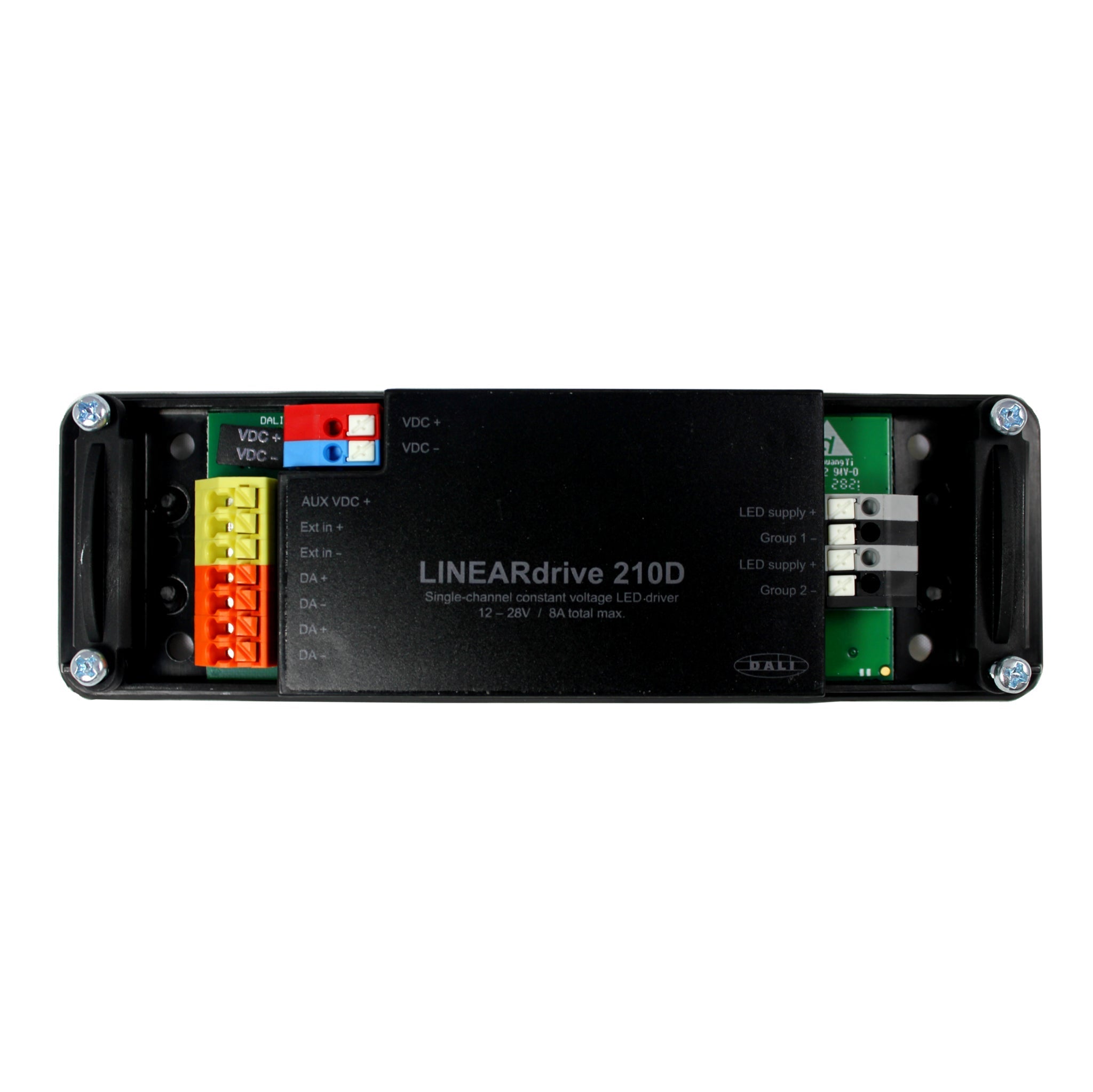

eldoLED LINEARdrive 210D – 8A (12/24v) DALI dimmable constant voltage LED driver

Description

LINEARdrive 210D is a constant voltage LED driver. It features two LED outputs that are controlled via DALI. Both LED outputs are controlled over the same ballast, giving them the exact same behaviour.

The driver features wire restraints which make it perfectly suited for independent installations.

Features

  • HydraDrive: provides the smoothest colour fades and dimming to dark
  • Auxiliary power output

Benefits

  • Exceptionally smooth colour fades

Input Characteristics



Nominal input voltage DC: 12 - 28V
Maximum input current: 8A, irrespective of PSU voltage

Output Characteristics



LED output load: 8A maximum, irrespective of whether using one or both LED outputs
Maximum LED output power: 200W
Number of LED outputs: 2
LED output voltage: 12 - 28V
Auxiliary output voltage: equal to input voltage
Auxiliary output current: 180mA @ 12V, 90mA @ 24V
Maximum auxiliary output power: 2W

eldoLED LINEARdrive 210D – 8A (12/24v) DALI dimmable constant voltage LED driver

Product form

SKU: LIN210D1

Trade price available - contact us

£110.00 Excl. VAT

(inc. 20% VAT): £132.00

    • Contact us to confirm availability
      Downloads

    LINEARdrive 210D is a constant voltage LED driver. It features two LED outputs that are controlled via DALI. Both LED... Read more

    Description

    LINEARdrive 210D is a constant voltage LED driver. It features two LED outputs that are controlled via DALI. Both LED outputs are controlled over the same ballast, giving them the exact same behaviour.

    The driver features wire restraints which make it perfectly suited for independent installations.

    Features

    • HydraDrive: provides the smoothest colour fades and dimming to dark
    • Auxiliary power output

    Benefits

    • Exceptionally smooth colour fades

    Input Characteristics



    Nominal input voltage DC: 12 - 28V
    Maximum input current: 8A, irrespective of PSU voltage

    Output Characteristics



    LED output load: 8A maximum, irrespective of whether using one or both LED outputs
    Maximum LED output power: 200W
    Number of LED outputs: 2
    LED output voltage: 12 - 28V
    Auxiliary output voltage: equal to input voltage
    Auxiliary output current: 180mA @ 12V, 90mA @ 24V
    Maximum auxiliary output power: 2W
