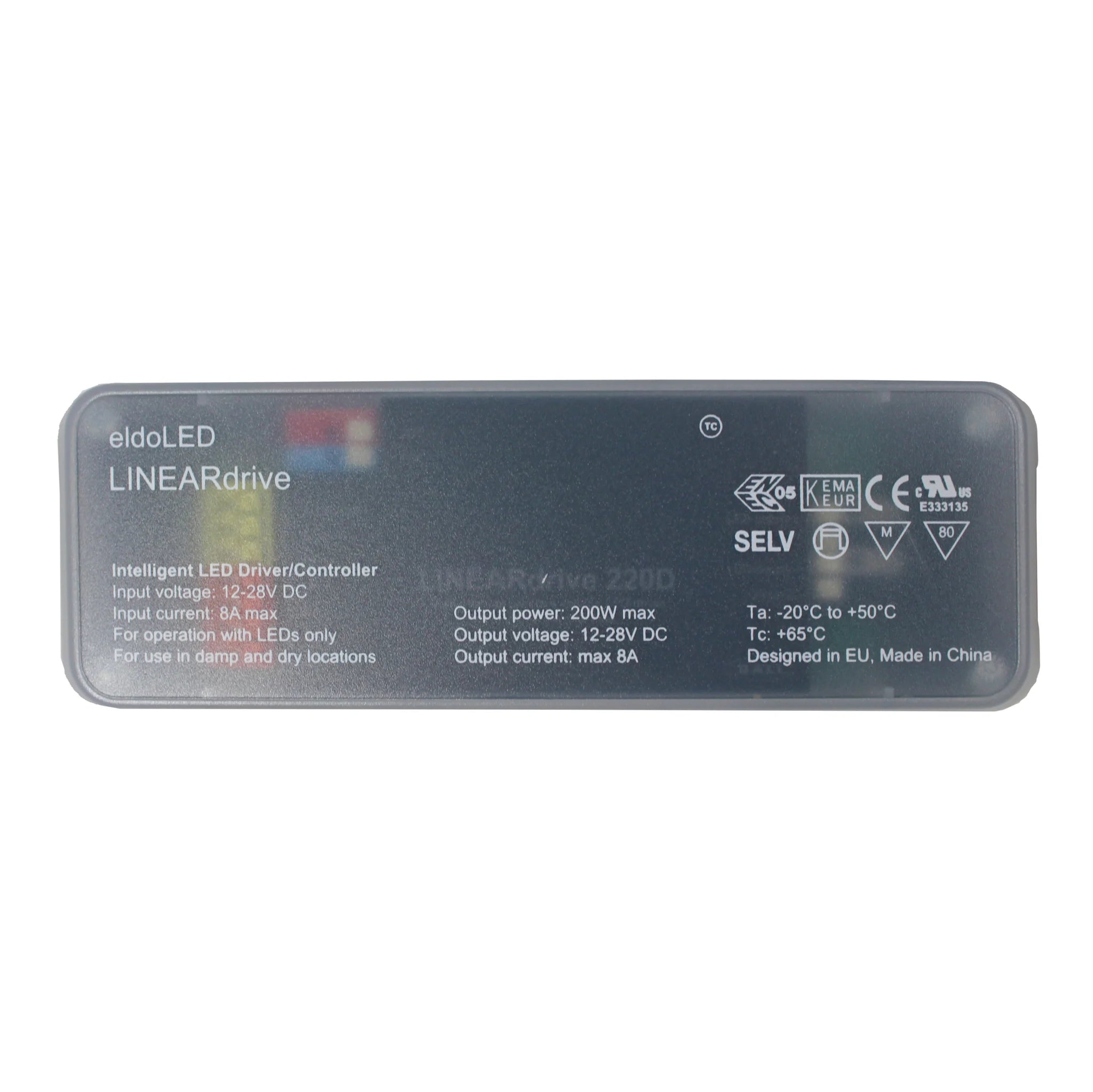

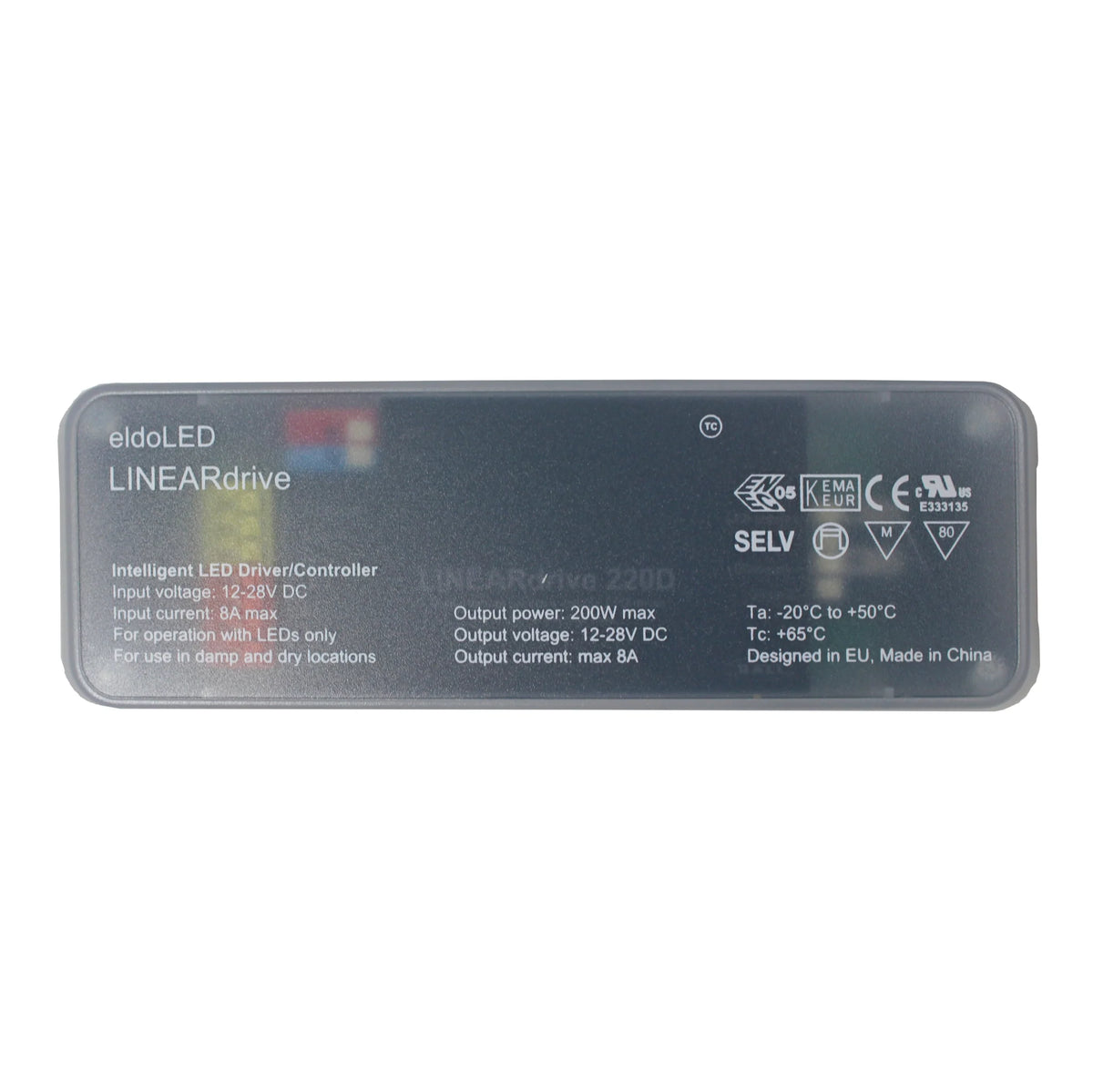

eldoLED LINEARdrive 220D – 8A (12/24v) DALI dimmable Const LED driverant voltage

Description



eldoLED LINEARdrive 220D – 8A (12/24v) DALI dimmable Const LED driverant voltage

LINEARdrive 220D is a constant voltage LED driver. It features two LED outputs that can be controlled separately via DALI.

The driver features wire restraints which make it perfectly suited for independent installations.

Features

  • HydraDrive: provides the smoothest colour fades and dimming to dark
  • Auxiliary power output
  • Input Characteristics

    Nominal input voltage DC: 12 - 28V
    Maximum input current: 8A, irrespective of PSU voltage

    Output Characteristics

    LED output load: 8A maximum, irrespective of whether using one or both LED outputs
    Maximum LED output power: 200W
    Number of LED outputs: 2
    LED output voltage: 12 - 28V
    Auxiliary output voltage: equal to input voltage
    Auxiliary output current: 180mA @ 12V, 90mA @ 24V
    Maximum auxiliary output power: 2W

    Downloads

    Datasheet LIN220D1

eldoLED LINEARdrive 220D – 8A (12/24v) DALI dimmable Const LED driverant voltage

Product form

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£85.00 Excl. VAT

(inc. 20% VAT): £102.00

    • Contact us to confirm availability
      Downloads

      eldoLED LINEARdrive 220D – 8A (12/24v) DALI dimmable Const LED driverant voltage LINEARdrive 220D is a constant voltage LED... Read more

    Description



    eldoLED LINEARdrive 220D – 8A (12/24v) DALI dimmable Const LED driverant voltage

    LINEARdrive 220D is a constant voltage LED driver. It features two LED outputs that can be controlled separately via DALI.

    The driver features wire restraints which make it perfectly suited for independent installations.

    Features

    • HydraDrive: provides the smoothest colour fades and dimming to dark
    • Auxiliary power output
    • Input Characteristics

      Nominal input voltage DC: 12 - 28V
      Maximum input current: 8A, irrespective of PSU voltage

      Output Characteristics

      LED output load: 8A maximum, irrespective of whether using one or both LED outputs
      Maximum LED output power: 200W
      Number of LED outputs: 2
      LED output voltage: 12 - 28V
      Auxiliary output voltage: equal to input voltage
      Auxiliary output current: 180mA @ 12V, 90mA @ 24V
      Maximum auxiliary output power: 2W

      Downloads

      Datasheet LIN220D1
