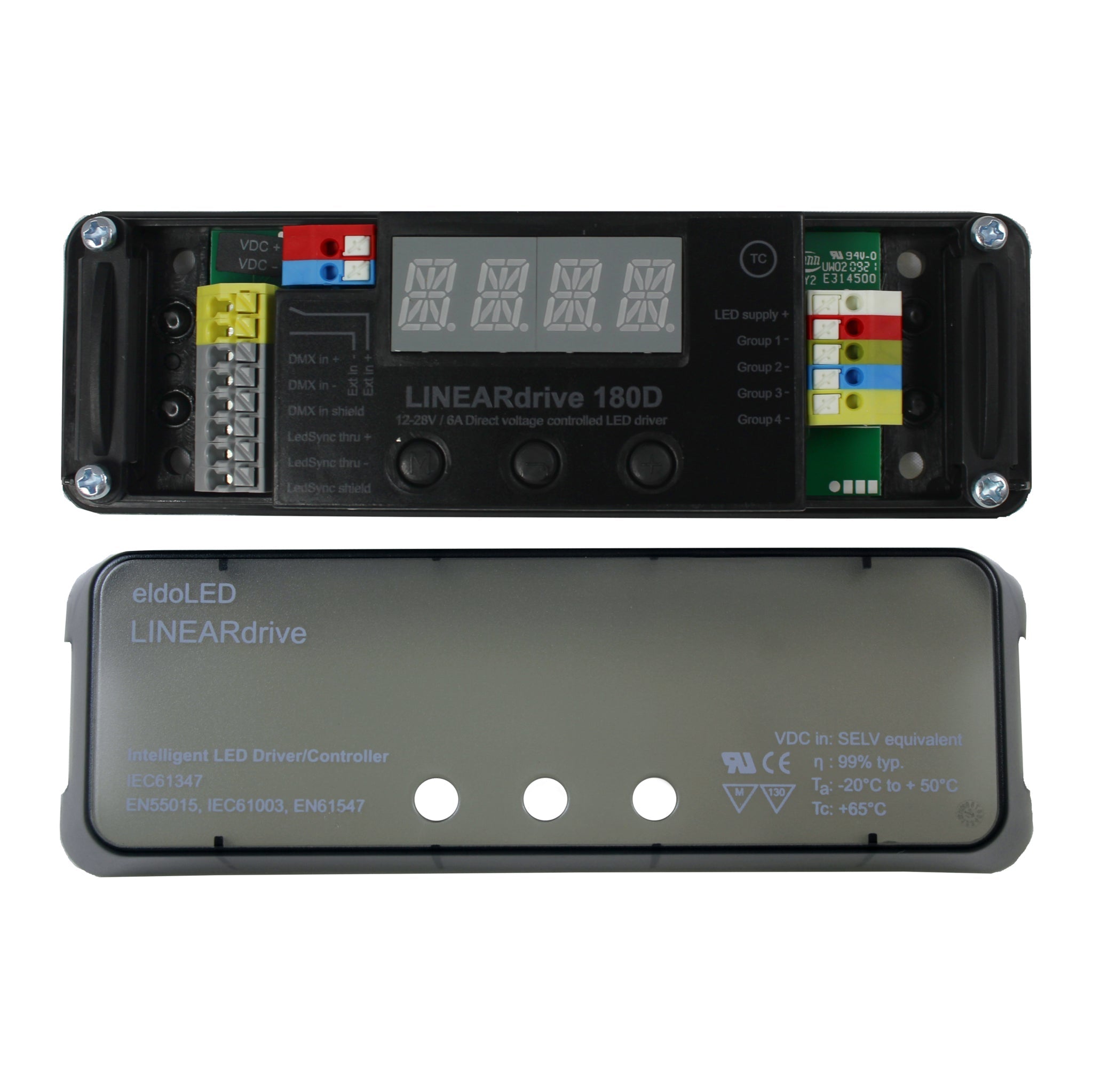

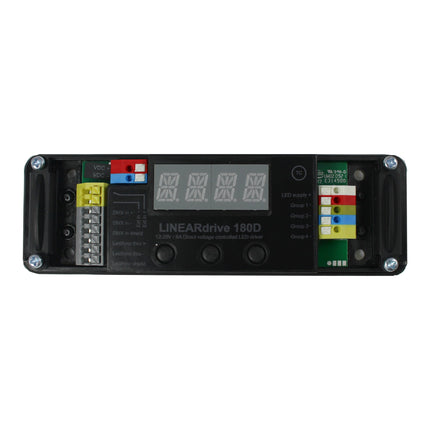

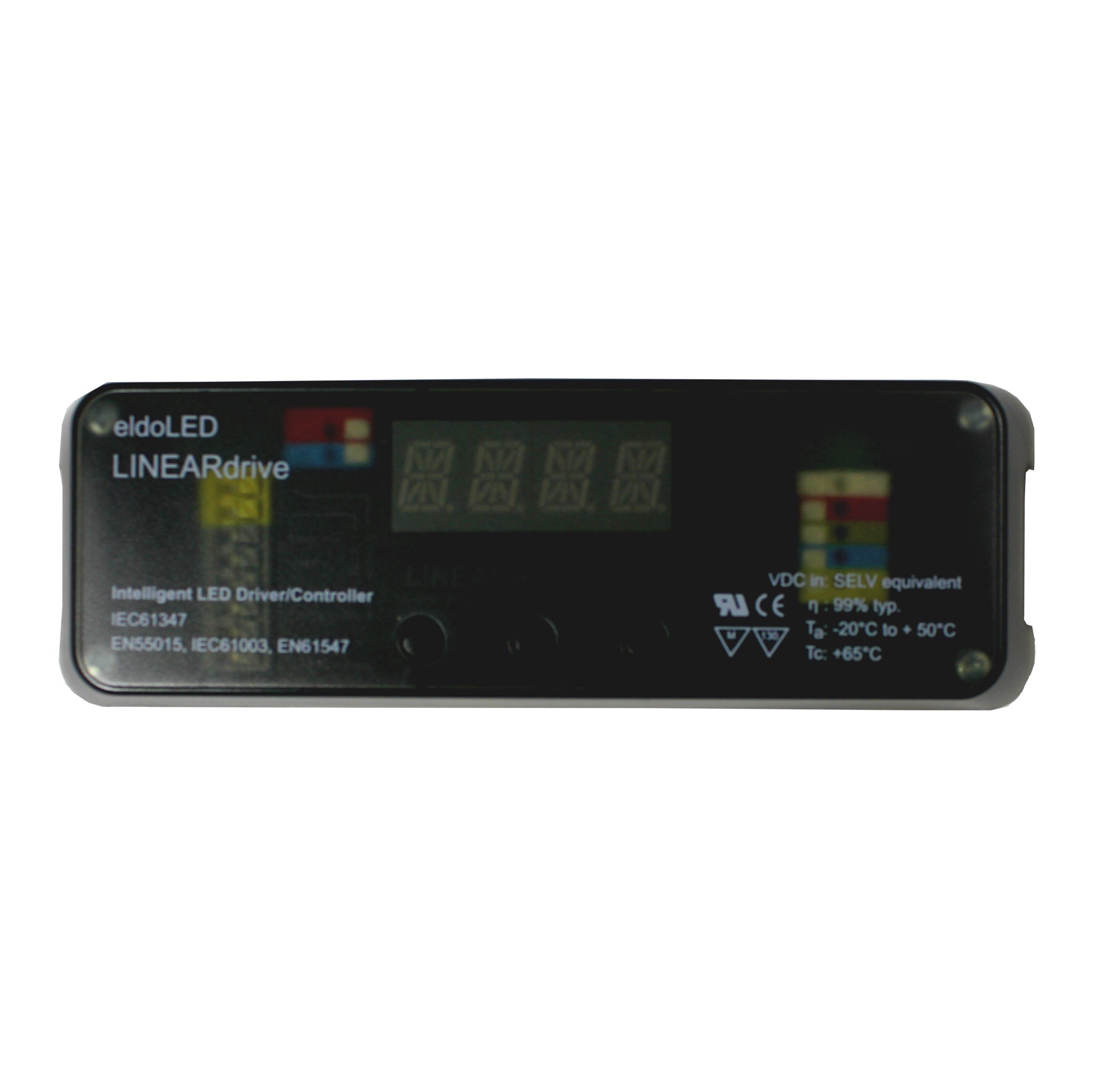

eldoLED LINEARdrive 180D – 6A (12/24v) DMX/RDM dimmable constant voltage LED driver

Description

LINEARdrive 180D is a constant voltage LED driver. It features four LED outputs that can be controlled individually via DMX.

You can configure the driver over its intuitive, 3-button user interface with display: it lets you configure the number of channels, DMX settings for networked mode and show, colour and dim values for standalone operation.

The driver features wire restraints which make it perfectly suited for independent installations.

Features

  • HydraDrive: provides the smoothest colour fades and dimming to dark
  • User interface for driver configuration

Benefits

  • Dynamic response can be tuned to fit any content - from exceptionally smooth fades in architecture to fast-paced video in entertainment
  • Configurable on-the-fly

Input Characteristics

Nominal input voltage DC: 12 - 28V
Maximum input current: 6A, irrespective of PSU voltage

Output Characteristics

LED output load: RGBW @ 12V: 1.5A RGB @ 12V: 2A RGBW @ 24V: 1.5A RGB @ 24V: 2A
Maximum LED output power: 180W
Number of LED outputs: 4 (UL Class 2)
LED output voltage: 12 - 24V

Downloads

Datasheet LIN180D3
Specification submittal sheet
Wiring diagram
Quick Start Guide

eldoLED LINEARdrive 180D – 6A (12/24v) DMX/RDM dimmable constant voltage LED driver

Product form

SKU: LIN180D3

Trade price available - contact us

£76.26 Excl. VAT

(inc. 20% VAT): £91.51

    • Contact us to confirm availability
      Downloads

    LINEARdrive 180D is a constant voltage LED driver. It features four LED outputs that can be controlled individually via DMX.... Read more

    Description

    LINEARdrive 180D is a constant voltage LED driver. It features four LED outputs that can be controlled individually via DMX.

    You can configure the driver over its intuitive, 3-button user interface with display: it lets you configure the number of channels, DMX settings for networked mode and show, colour and dim values for standalone operation.

    The driver features wire restraints which make it perfectly suited for independent installations.

    Features

    • HydraDrive: provides the smoothest colour fades and dimming to dark
    • User interface for driver configuration

    Benefits

    • Dynamic response can be tuned to fit any content - from exceptionally smooth fades in architecture to fast-paced video in entertainment
    • Configurable on-the-fly

    Input Characteristics

    Nominal input voltage DC: 12 - 28V
    Maximum input current: 6A, irrespective of PSU voltage

    Output Characteristics

    LED output load: RGBW @ 12V: 1.5A RGB @ 12V: 2A RGBW @ 24V: 1.5A RGB @ 24V: 2A
    Maximum LED output power: 180W
    Number of LED outputs: 4 (UL Class 2)
    LED output voltage: 12 - 24V

    Downloads

    Datasheet LIN180D3
    Specification submittal sheet
    Wiring diagram
    Quick Start Guide
