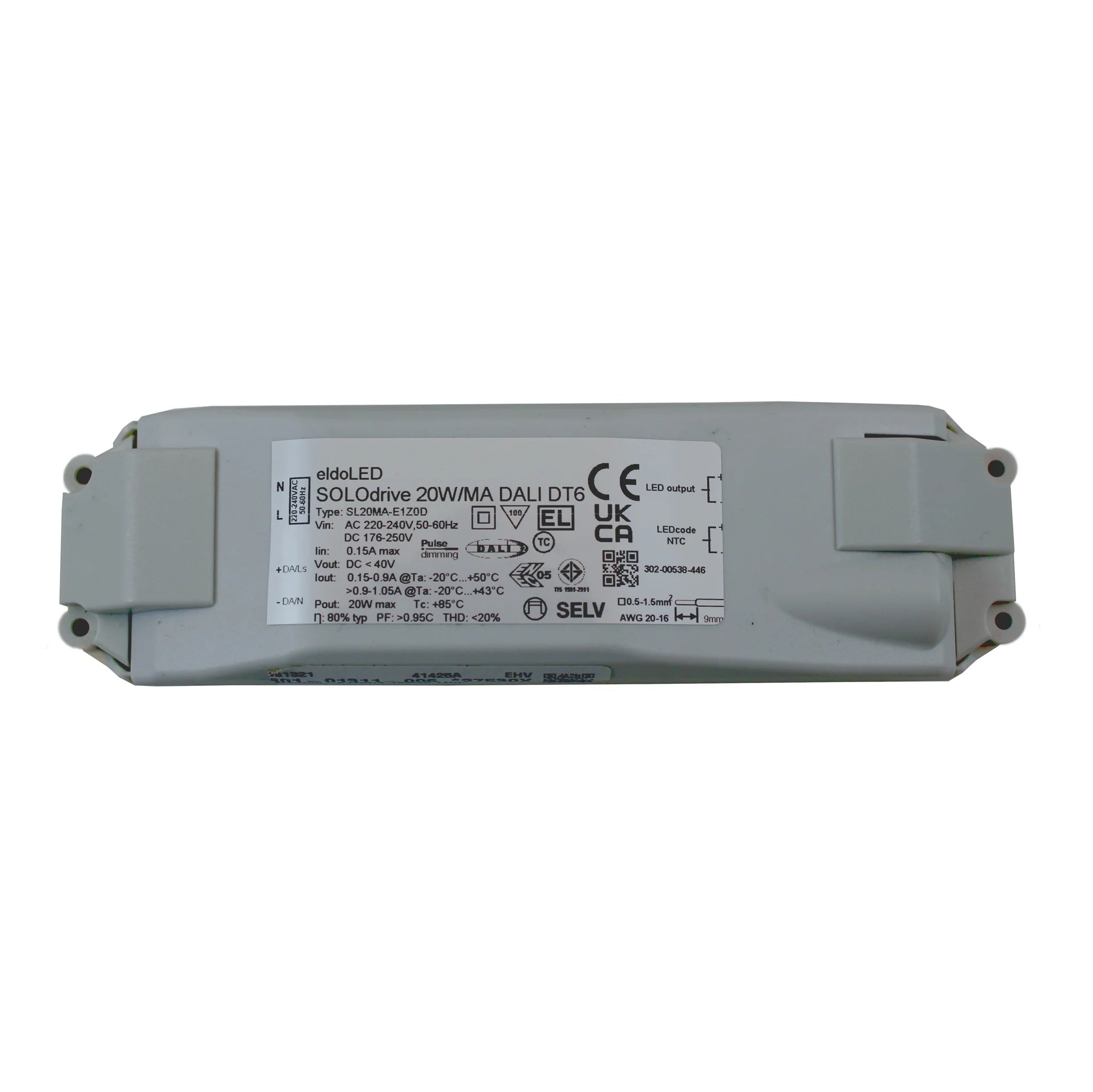

eldoLED SOLOdrive 20MA-E1Z0D2 - 20w DALI dimmable constant current

Description

eldoLED SOLOdrive 20MA-E1Z0D2 - 20w DALI dimmable constant current



SOLOdrive 20MA-E1Z0D2 delivers 20W and is DALI-2 certified. As all SOLOdrives, the 20MA-E1Z0D2 smoothly dims all the way down to dark.

The 20W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 50mm diameter hole in the ceiling into a plenum with a 110mm height between functional and decorative ceiling.

Features

  • Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to zero for every fixture
  • LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices
  • NTC interface for robust thermal management

Benefits

  • Increase performance and capability of any LED fixture
  • Reduce inventory and decrease lead times with configurable drivers
  • Short lead times, designed to meet the most aggressive timelines
  • Trusted brand with proven track record of performance and reliability

Input Characteristics



Nominal input voltage range AC: 220 - 240V (ENEC)
Absolute input voltage range AC: 198 - 264V
Nominal input voltage range DC: 176 - 250V
Maximum input current: 0.15A @ 230V
Input frequency range: 50 - 60Hz

Output Characteristics



Maximum LED output power: 20W
Number of LED outputs: 1
Programmable LED output current range: 150 - 1050mA
LED output type: Programmable in 1mA increments within specified current range
LED output current tolerance: +/- 5% at programmed LED output current
LED output voltage range: 2 - 40V

    Downloads



    Datasheet 20MA-E1Z0D
    Specification submittal sheet

    eldoLED SOLOdrive 20MA-E1Z0D2 - 20w DALI dimmable constant current

    Product form

    SKU: SL20MA-E1Z0D

    Stock Level: Ordered in - Delivery 2-3 Days

    Trade price available - contact us

    £45.00 Excl. VAT

    (inc. 20% VAT): £54.00

      • Contact us to confirm availability
        Downloads

      eldoLED SOLOdrive 20MA-E1Z0D2 - 20w DALI dimmable constant current   SOLOdrive 20MA-E1Z0D2 delivers 20W and is DALI-2 certified. As all... Read more

      Description

      eldoLED SOLOdrive 20MA-E1Z0D2 - 20w DALI dimmable constant current



      SOLOdrive 20MA-E1Z0D2 delivers 20W and is DALI-2 certified. As all SOLOdrives, the 20MA-E1Z0D2 smoothly dims all the way down to dark.

      The 20W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 50mm diameter hole in the ceiling into a plenum with a 110mm height between functional and decorative ceiling.

      Features

      • Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to zero for every fixture
      • LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LEDcode peripheral devices
      • NTC interface for robust thermal management

      Benefits

      • Increase performance and capability of any LED fixture
      • Reduce inventory and decrease lead times with configurable drivers
      • Short lead times, designed to meet the most aggressive timelines
      • Trusted brand with proven track record of performance and reliability

      Input Characteristics



      Nominal input voltage range AC: 220 - 240V (ENEC)
      Absolute input voltage range AC: 198 - 264V
      Nominal input voltage range DC: 176 - 250V
      Maximum input current: 0.15A @ 230V
      Input frequency range: 50 - 60Hz

      Output Characteristics



      Maximum LED output power: 20W
      Number of LED outputs: 1
      Programmable LED output current range: 150 - 1050mA
      LED output type: Programmable in 1mA increments within specified current range
      LED output current tolerance: +/- 5% at programmed LED output current
      LED output voltage range: 2 - 40V

        Downloads



        Datasheet 20MA-E1Z0D
        Specification submittal sheet
