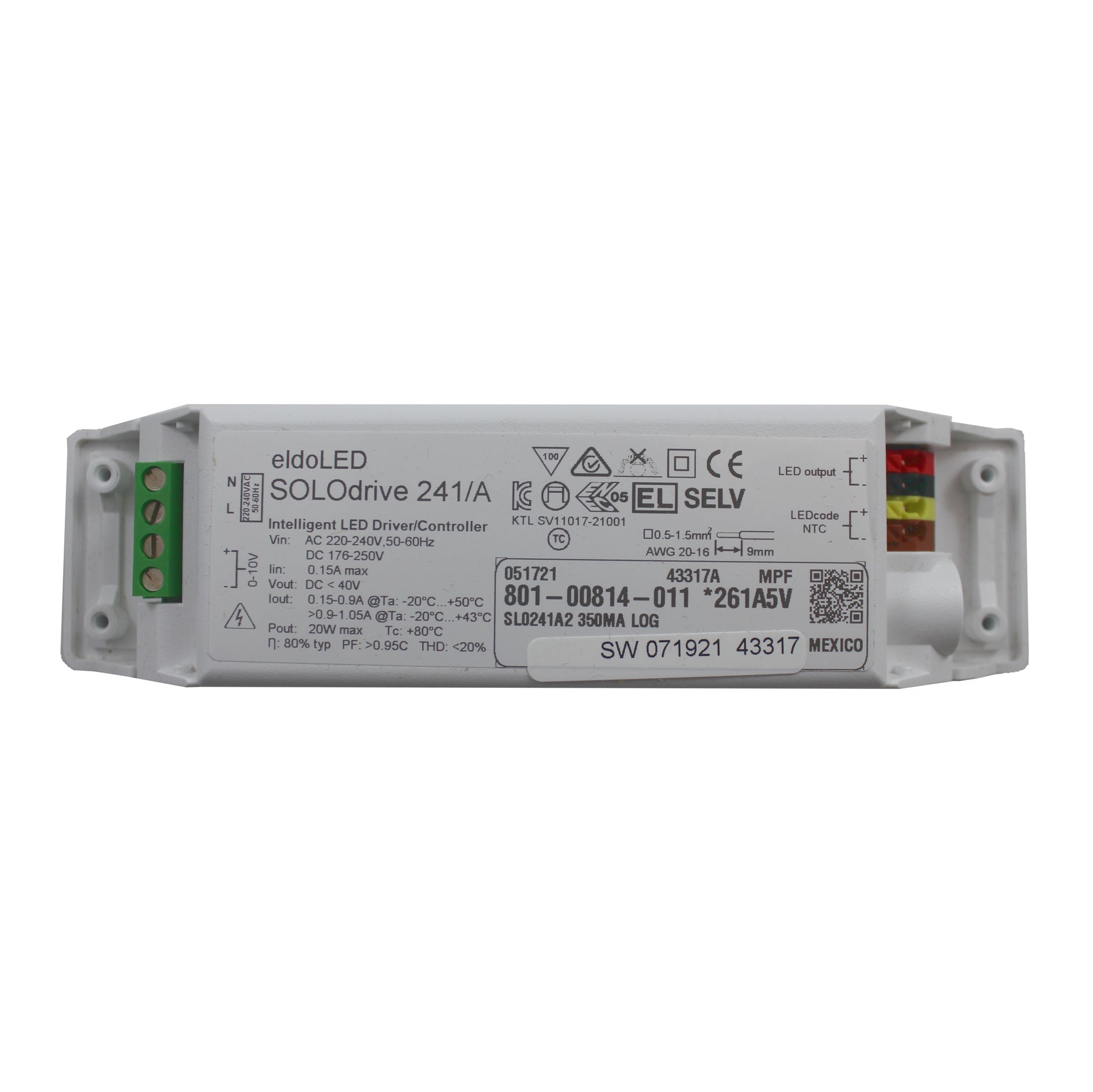

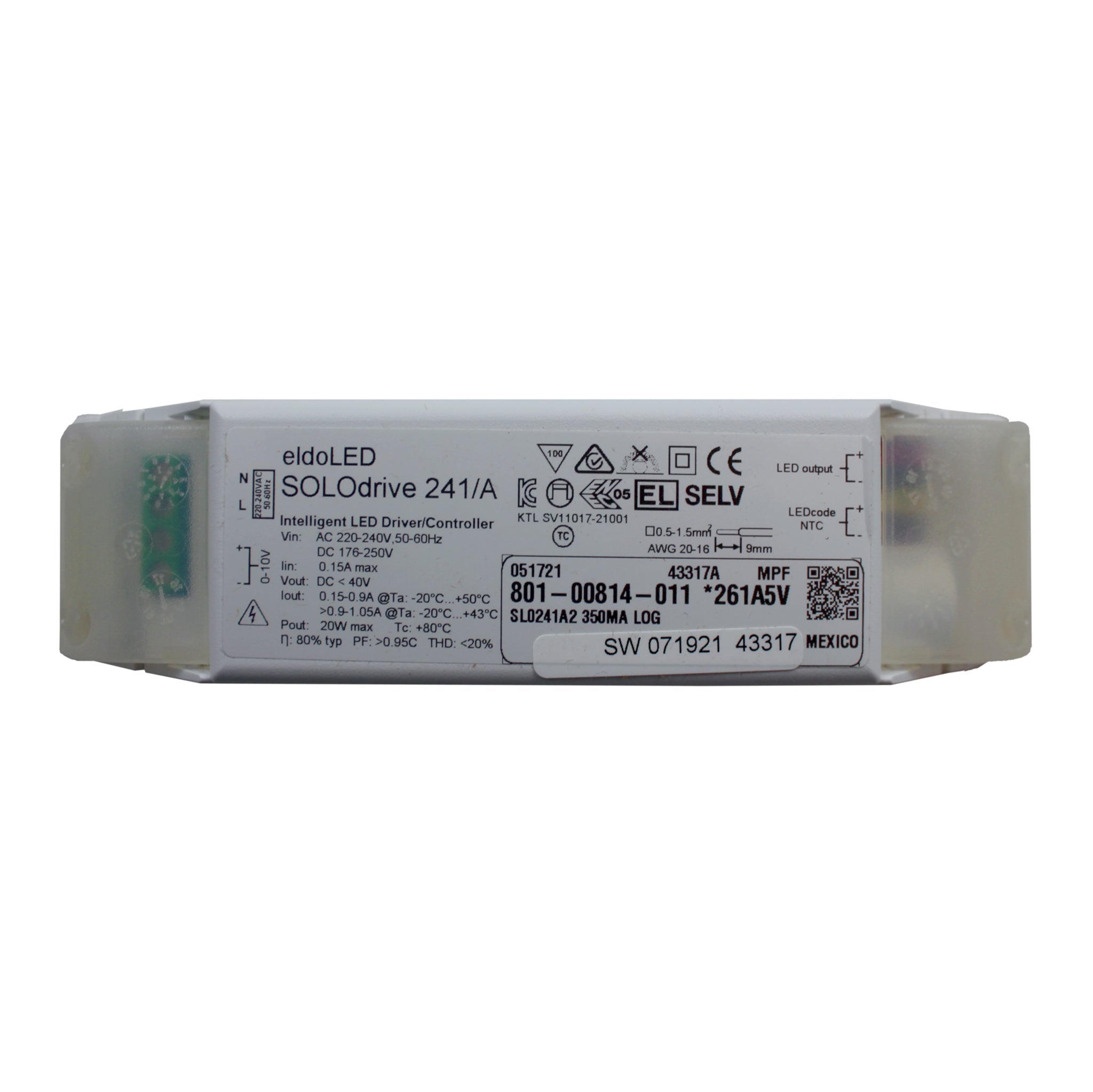

eldoLED SOLOdrive 241/A2 – 20w 0-10V dimmable constant current LED driver with configuration

Description



This SOLOdrive product will be configured to your required current at any interval between 150mA and 1050mA.  Please state your required current in the box above.
If you do not require this extra service & wish to purchase this product at the pre-configured current of 350mA



SOLOdrive 241/A2 delivers 20W and is 0-10V compatible. As all SOLOdrives, the 241/A2 smoothly dims all the way down to dark.

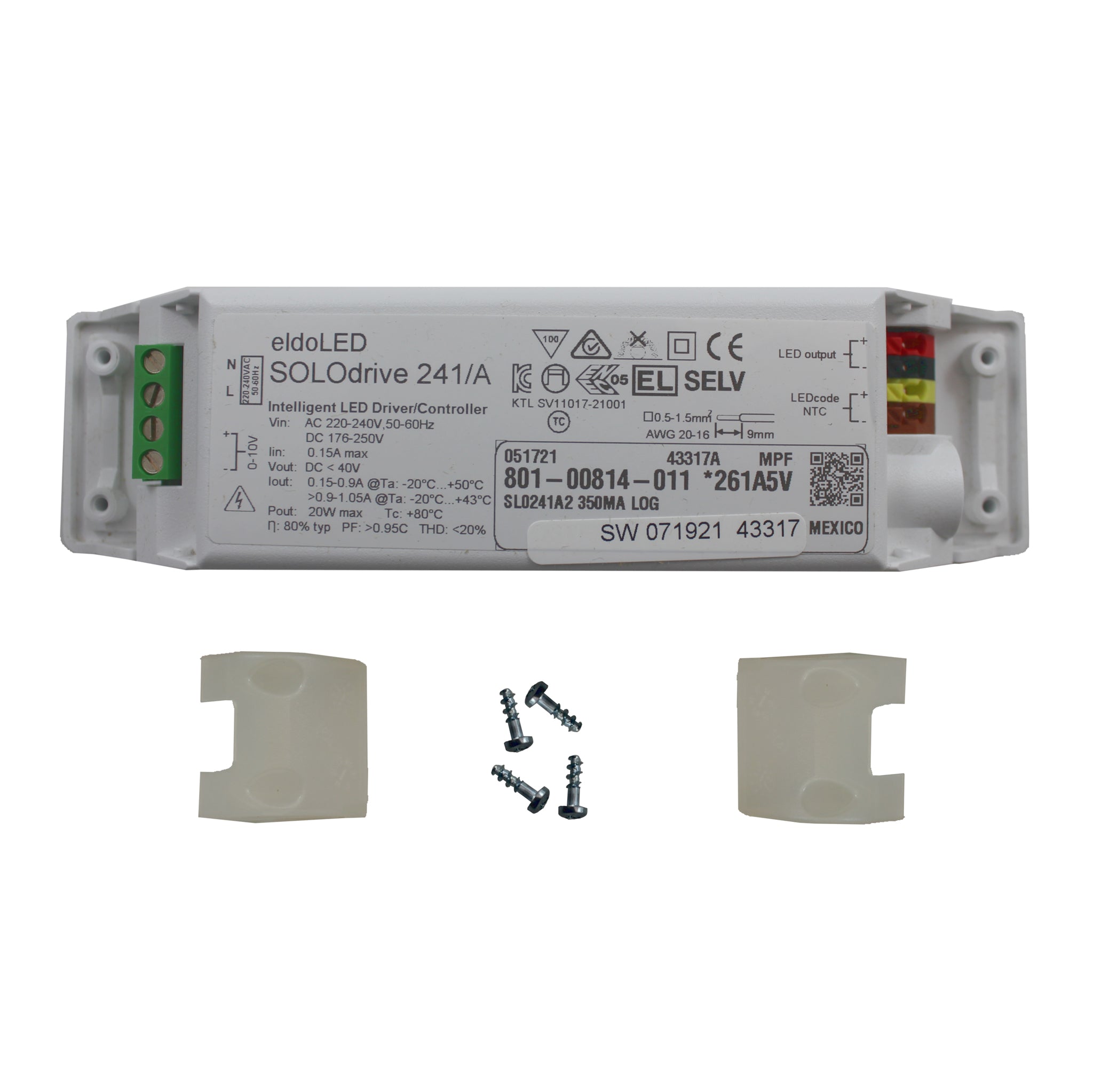

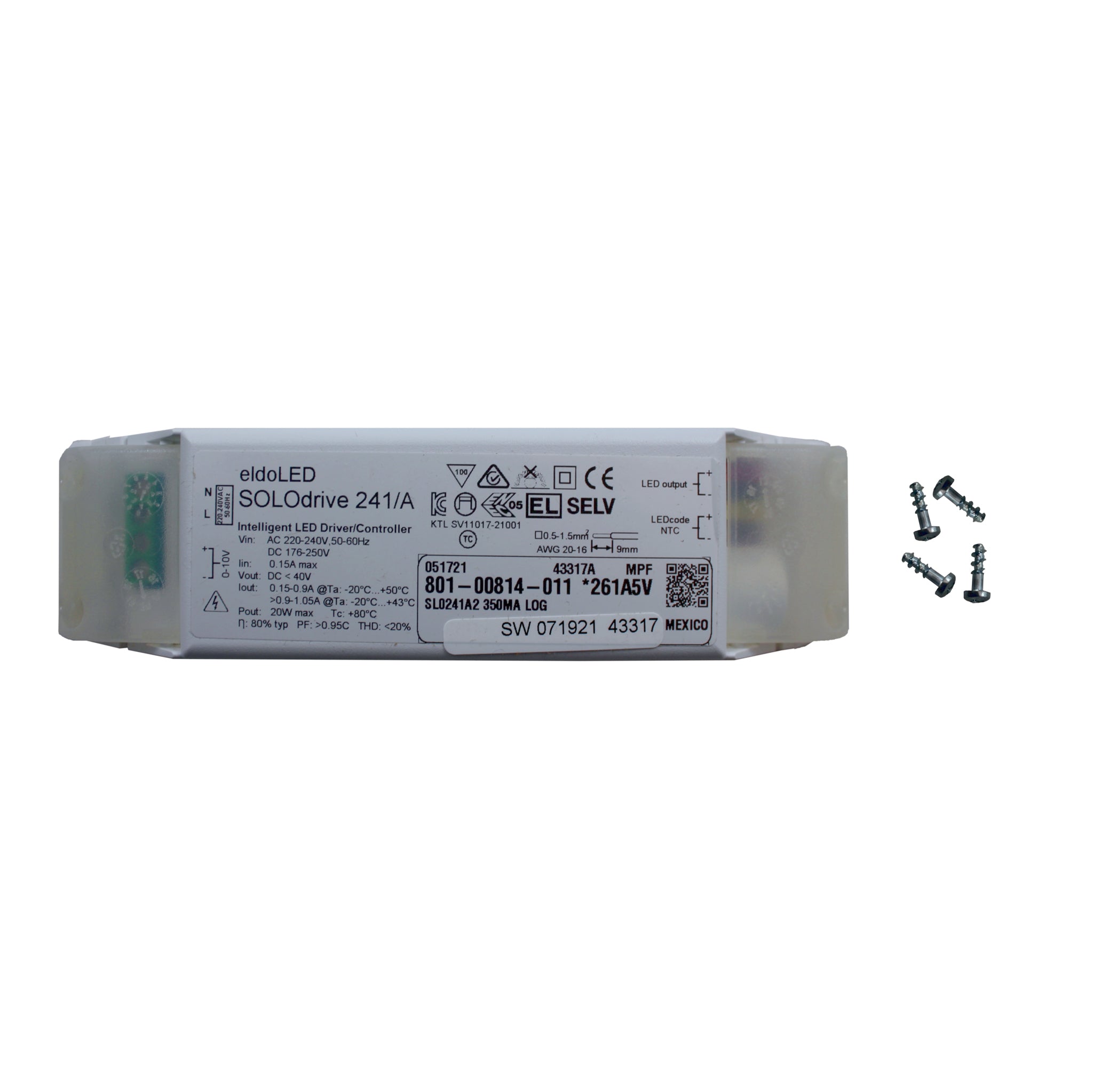

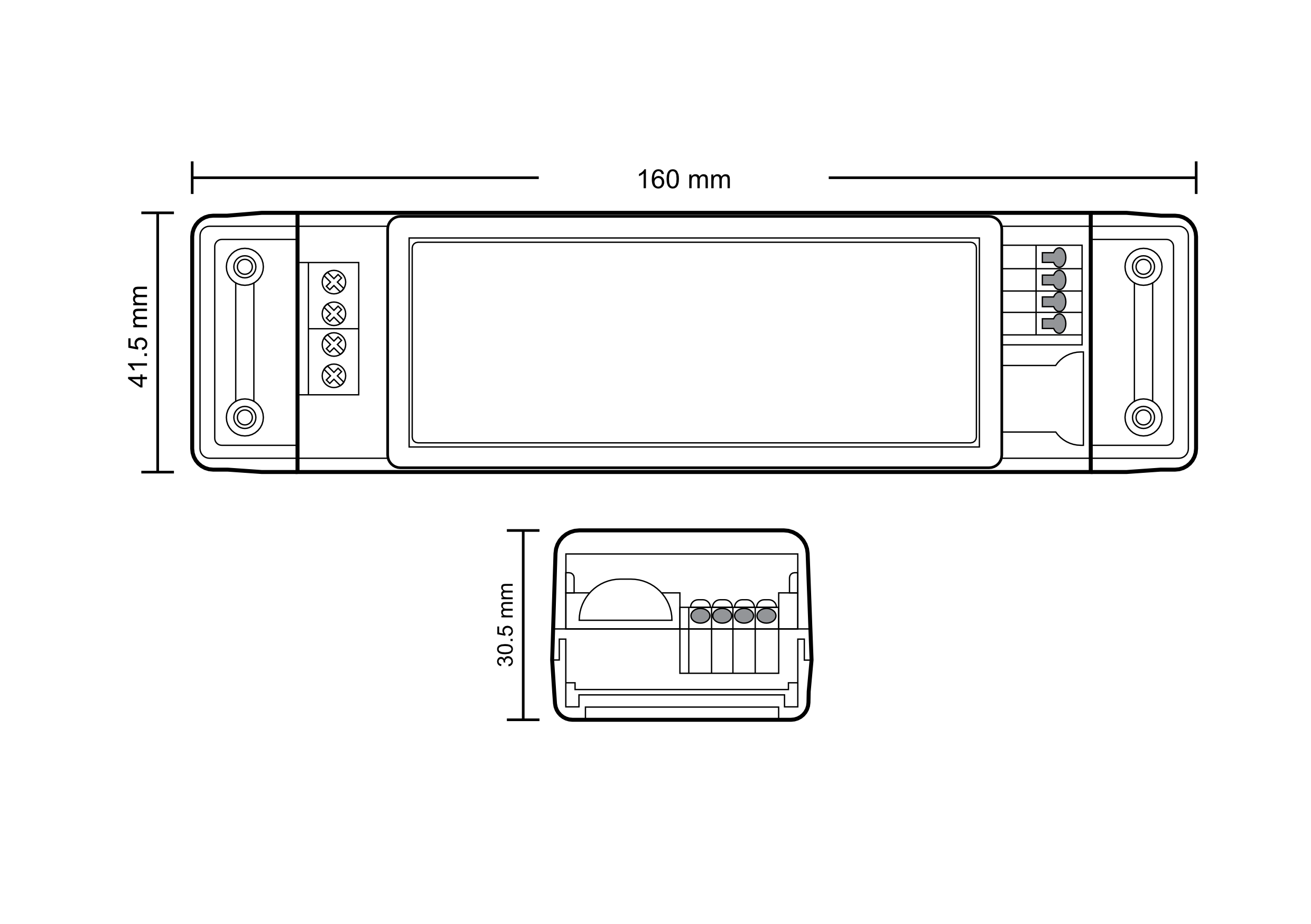

The 20W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 50mm diameter hole in the ceiling into a plenum with a 110mm height between functional and decorative ceiling.

Features

  • Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to zero for every fixture
  • LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
  • NTC interface for robust thermal management

Benefits

  • Increase performance and capability of any LED fixture
  • Reduce inventory and decrease lead times with configurable drivers
  • Short lead times, designed to meet the most aggressive timelines
  • Trusted brand with proven track record of performance and reliability

Input Characteristics

Nominal input voltage range AC: 220 - 240V (ENEC)
Absolute input voltage range AC: 198 - 264V
Nominal input voltage range DC: 176 - 250V
Maximum input current: 0.15A @ 230V / 50Hz
Input frequency range: 50 - 60Hz

Output Characteristics

Maximum LED output power: 20W
Number of LED outputs: 1
Programmable LED output current range: 150 - 1050mA
LED output type: Programmable in 1mA increments within specified current range
LED output current tolerance: +/- 5% at programmed LED output current
LED output voltage range: 2 - 40V

      Downloads

      Datasheet SL0241A2
      Specification submittal sheet



      eldoLED SOLOdrive 241/A2 – 20w 0-10V dimmable constant current LED driver with configuration

      Product form

      SKU: SL0241A2-config

      Trade price available - contact us

      £48.50 Excl. VAT

      (inc. 20% VAT): £58.20

        • Contact us to confirm availability
          Downloads

          This SOLOdrive product will be configured to your required current at any interval between 150mA and 1050mA.  Please state... Read more

        Description



        This SOLOdrive product will be configured to your required current at any interval between 150mA and 1050mA.  Please state your required current in the box above.
        If you do not require this extra service & wish to purchase this product at the pre-configured current of 350mA



        SOLOdrive 241/A2 delivers 20W and is 0-10V compatible. As all SOLOdrives, the 241/A2 smoothly dims all the way down to dark.

        The 20W /A independent LED driver with cable retention is perfect for downlight applications in Europe where the LED driver needs to fit through a 50mm diameter hole in the ceiling into a plenum with a 110mm height between functional and decorative ceiling.

        Features

        • Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to zero for every fixture
        • LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
        • NTC interface for robust thermal management

        Benefits

        • Increase performance and capability of any LED fixture
        • Reduce inventory and decrease lead times with configurable drivers
        • Short lead times, designed to meet the most aggressive timelines
        • Trusted brand with proven track record of performance and reliability

        Input Characteristics

        Nominal input voltage range AC: 220 - 240V (ENEC)
        Absolute input voltage range AC: 198 - 264V
        Nominal input voltage range DC: 176 - 250V
        Maximum input current: 0.15A @ 230V / 50Hz
        Input frequency range: 50 - 60Hz

        Output Characteristics

        Maximum LED output power: 20W
        Number of LED outputs: 1
        Programmable LED output current range: 150 - 1050mA
        LED output type: Programmable in 1mA increments within specified current range
        LED output current tolerance: +/- 5% at programmed LED output current
        LED output voltage range: 2 - 40V

            Downloads

            Datasheet SL0241A2
            Specification submittal sheet
