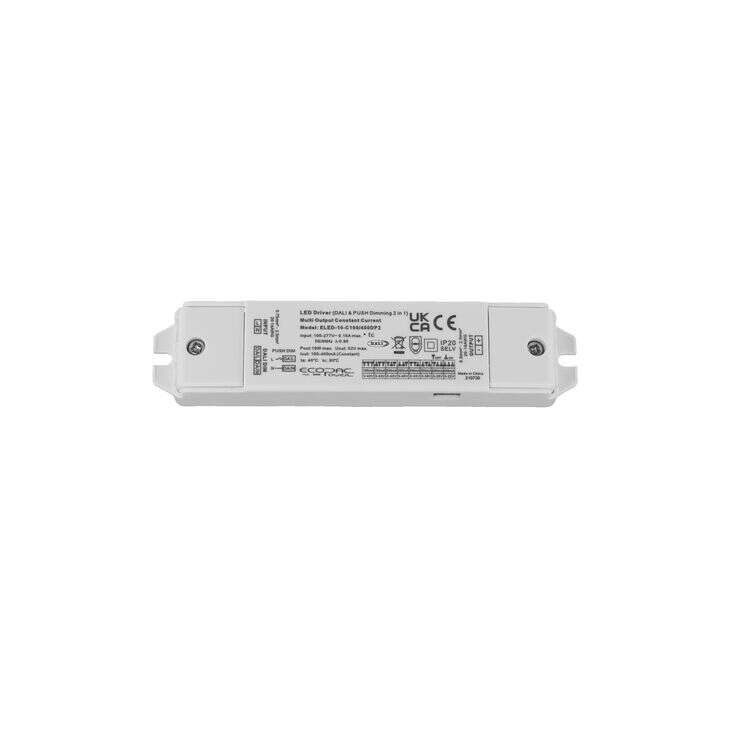

ELED-10-C100/450DP2 Dali

Description



ELED-10-C100/450DP2 Features:

10W DALI2 and Push Dimming Multiple-Stage Output Current LED Drive

Features:

• Constant Current mode output with multiple levels selectable by dip switch
• DALI 2 dimming function (IEC62386)
• AC input: 100-277VAC
• Built-in active PFC function
• Efficiency up to 79%
• Protections: Short circuit/ Over load/Over temperature
• Cooling by free air convection
• Suitable for intelligent LED lighting



Wattage 10 10 10 10 10 8.4 6.3 4.2
Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC
Output Current 450mA 400mA 350mA 300mA 250mA 200mA 150mA 100mA
Output Voltage 3~22 3~25 3~29 3~33 3~40 3~42 3~42 3~42
Dimensions 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm
Working Temperature -40~60°C
Safety Standards EN61347-1, EN61347-2-13, UL8750
EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B

ELED-10-C100/450DP2 Dali

Product form

SKU: ELED-10-C100/450

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£21.38 Excl. VAT

(inc. 20% VAT): £25.66

    • Contact us to confirm availability
      Downloads

      ELED-10-C100/450DP2 Features: 10W DALI2 and Push Dimming Multiple-Stage Output Current LED DriveFeatures: • Constant Current mode output with multiple... Read more

    Description



    ELED-10-C100/450DP2 Features:

    10W DALI2 and Push Dimming Multiple-Stage Output Current LED Drive

    Features:

    • Constant Current mode output with multiple levels selectable by dip switch
    • DALI 2 dimming function (IEC62386)
    • AC input: 100-277VAC
    • Built-in active PFC function
    • Efficiency up to 79%
    • Protections: Short circuit/ Over load/Over temperature
    • Cooling by free air convection
    • Suitable for intelligent LED lighting



    Wattage 10 10 10 10 10 8.4 6.3 4.2
    Input Voltage 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC 100~277VAC
    Output Current 450mA 400mA 350mA 300mA 250mA 200mA 150mA 100mA
    Output Voltage 3~22 3~25 3~29 3~33 3~40 3~42 3~42 3~42
    Dimensions 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm 135 x 30x 20 mm
    Working Temperature -40~60°C
    Safety Standards EN61347-1, EN61347-2-13, UL8750
    EMC Standards Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B
