ELP BAN2/LDE3F/C/D/WH LDE3F and Banana Pack EM downlight dali with corridor Lens 290 lumens

Description



ELP  BAN2/LDE3F/C/D/WH LDE3F and Banana Pack  EM downlight dali with corridor Lens 290 lumens

Where projects require the advantages of low energy/long life
LEDs packaged in standard downlight products for plasterboard
ceilings and ceiling tiles the LDE3F range is the ideal choice.

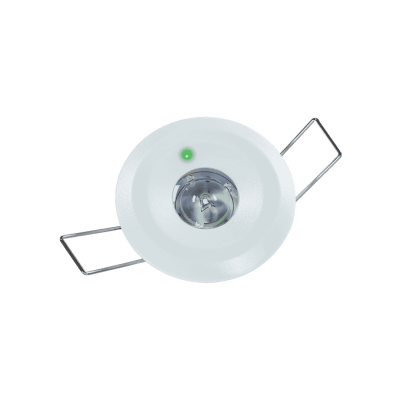

The LDE3F downlights (white or black thermally conductive
plastic) are installed using spring clips into a 45mm diameter
cut-out.
The LDE3F range can be supplied with the Banana Pack
in-line DALI emergency driver kit which can pass through the
cut-out into the ceiling void (minimum void depth 100mm).
LDE3F/W (WIDE BEAM)
The LDE3F/W downlight offers a Wide beam (160 degree)
lens configuration ideal for illumination of open areas with
mounting heights of typically 2 to 5m.
LDE3F/C (‘CORRIDOR’ BEAM)
The LDE3F/C downlight offers a dissymmetric lens providing a
narrow beam across the width of a corridor and extremely wide
(batwing) distribution along the length of the corridor.
LDE3F/HL (HIGH LEVEL / MEDIUM BEAM)
The LDE3F/HL downlight offers a medium beam ideal for higher
mounting heights of typically 6 to12m or lighting high risk tasks.
NB: it is often an advantage to use higher operating currents for
this lens — See Power Supplies in LDE3F and LDI3/18 Data
Sheet.
The ideal DALI emergency driver pack is the Banana Pack.
This comprises a one piece housing for the emergency driver
and either a 1 or 2 cell high temperature LiFePO₄ battery and
easily passes through the cut out required to mount the
LDE3F. When the normal mains supply fails the Banana Pack
powers the LDE3F downlight for 3 hours.
The Banana Pack has Class II insulation, an extra low
voltage output and features double insulated wires to the
downlight to provide additional mechanical protection.



ELP BAN2/LDE3F/C/D/WH LDE3F and Banana Pack EM downlight dali with corridor Lens 290 lumens

Product form

SKU: BAN2/LDE3F/C/D/WH

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£100.00 Excl. VAT

(inc. 20% VAT): £120.00

    • Contact us to confirm availability
