ELP MXL/ESA11/DA/LFP

Description

ELP  MXL/ESA11/DA/LFP

MexLITE

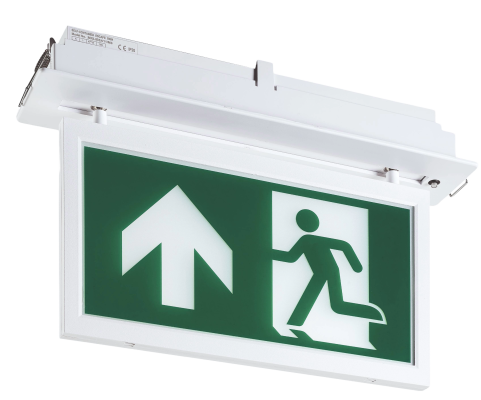

Fixed and Wire-Suspended LED Exit Sign

The MexLITE range of high quality LED exit sign luminaires is perfectly suited to modern architectural environments and available in two sizes for 25m and 30m viewing distances. Offering ease of installation, these luminaires feature a first fix plate. The attractive slim body and legend plate then clips into position.

The safety sign legends can be fitted/changed on site by simply clipping the appropriate sign into the frame. (NB: a complete set of EC & ISO legends are supplied with each luminaire).

The framed panel has a specially screen printed finish to ensure uniform illumination of the safety sign legend. Due to their slim design and different mounting options, MexLITE luminaires are ideal for integrating into new and existing installations.

The MexLITE ESA09 and ESA11 can have the legend panel suspended at different levels by just slipping the wires through the locking clutch bushes. The SELV supply to the LEDs is fed through the suspension wires.

DALI-2/Self-Test Options:
MexLITE luminaires can be specified with integral DALI-2/Self-Test gear providing automatic Self-Test in accordance with BS:EN 62034 or fully interoperable DALI-2 operation when connected to a DALI control system. Self-Test is available for all versions but DALI-2 operation is only available for the larger sizes – ESA10 & ESA11).

ELP MXL/ESA11/DA/LFP

Product form

SKU: MXL/ESA11/DA/LFP

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£150.00 Excl. VAT

(inc. 20% VAT): £180.00

    • Contact us to confirm availability
      Downloads

    ELP  MXL/ESA11/DA/LFP MexLITE Fixed and Wire-Suspended LED Exit Sign The MexLITE range of high quality LED exit sign luminaires is perfectly suited... Read more

    Description

    ELP  MXL/ESA11/DA/LFP

    MexLITE

    Fixed and Wire-Suspended LED Exit Sign

    The MexLITE range of high quality LED exit sign luminaires is perfectly suited to modern architectural environments and available in two sizes for 25m and 30m viewing distances. Offering ease of installation, these luminaires feature a first fix plate. The attractive slim body and legend plate then clips into position.

    The safety sign legends can be fitted/changed on site by simply clipping the appropriate sign into the frame. (NB: a complete set of EC & ISO legends are supplied with each luminaire).

    The framed panel has a specially screen printed finish to ensure uniform illumination of the safety sign legend. Due to their slim design and different mounting options, MexLITE luminaires are ideal for integrating into new and existing installations.

    The MexLITE ESA09 and ESA11 can have the legend panel suspended at different levels by just slipping the wires through the locking clutch bushes. The SELV supply to the LEDs is fed through the suspension wires.

    DALI-2/Self-Test Options:
    MexLITE luminaires can be specified with integral DALI-2/Self-Test gear providing automatic Self-Test in accordance with BS:EN 62034 or fully interoperable DALI-2 operation when connected to a DALI control system. Self-Test is available for all versions but DALI-2 operation is only available for the larger sizes – ESA10 & ESA11).
