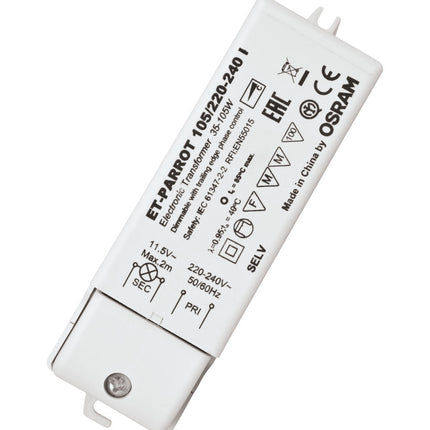

ET-PARROT 105/220…240 I

Description

Product family benefits
  • Very low power loss thanks to high efficacy
  • Protective operation throughout the entire partial-load range for long lamp life
Areas of application
  • Effect and accent lighting
  • Living rooms
  • Object lighting
  • Conference rooms
  • Restaurants
  • Recessed and surface-mounted furniture luminaires
  • Shop lighting
  • Event rooms

  • Technical Data

    Electrical data

    Lamp wattage

    35…105 W

    Maximum output power

    105 W

    Line current

    0.45 A


    Nominal voltage

    220…240 V

    Power factor λ

    0.95


    Operating frequency

    40 kHz


    Nominal output voltage

    11.9 / 12.0 V


    Input voltage AC

    198…264 V

    Mains frequency

    50…60 Hz

    System wattage

    111.00 W

    Efficiency in full-load

    94 %

    Input voltage range

    220…240 V

    Max. ECG no. on circuit breaker 10 A (B)

    23

    Max. ECG no. on circuit breaker 16 A (B)

    38

    Galvanic isolation primary/secondary

    4.00 kV


    Inrush current

    0.5 A

    Dimensions & weight

    Length

    128.0 mm

    Width

    38.0 mm

    Height

    31.0 mm

    Mounting hole spacing, length

    119.0 mm

    Cable cross-section, input side

    0.75 mm²

    Cable cross-section, output side

    0.75 mm²

    Wire preparation length, input side

    12 / 6.0 mm


    Wire preparation length, output side

    12 / 6.0 mm


    Product weight

    130.00 g

    Temperatures & operating conditions

    Ambient temperature range

    0…+40 °C

    Maximum temperature at tc test point

    85 °C

    Additional product data

    Design / version

    Compact

    Capabilities

    Dimming method

    Trailing- or leading-edge phase control for inductive load dimmers

    Overload protection

    Automatic reversible

    Overheating protection

    Automatic reversible

    Short-circuit protection

    Automatic reversible

    Max. cable length to lamp/LED module

    2.0 m

    Cable/wire types, input side

    H03VV-F 2x0.75 mm²

    Cable/wire types, output side

    H03VV-F 2x0.75 mm²

    Dimmable

    Yes

    Dimming range

    0…100 %

    No-load proof

    Yes

    Suitable for fixtures with prot. class

    II

    Intended for no-load operation

    No

    Certificates & standards

    Approval marks – approval

    VDE / EAC

    Standards

    Acc. to EN 61347/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547

    Type of protection

    IP20

    Logistical data

    Commodity code

    850440909000

    Environmental information


    Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

    Date of Declaration

    14-04-2022

    Primary Article Identifier

    4008321111579

    Candidate List Substance 1

    Lead

    CAS No. of substance 1

    7439-92-1

    Safe Use Instruction

    The identification of the Candidate List substance is sufficient to allow safe use of the article.

    Declaration No. in SCIP database

    ad5fb676-828d-4743-bdca-2693e619714e

    Packaging information

    EAN

    Unit

    Piece

    Dimension l x w x h

    Weight

    Volume
    4008321111579 UNV

    		1 128mm x 38mm x 31mm 130.00g 0.15dm³
    4008321111586 VS

    		50 290mm x 206mm x 220mm 697

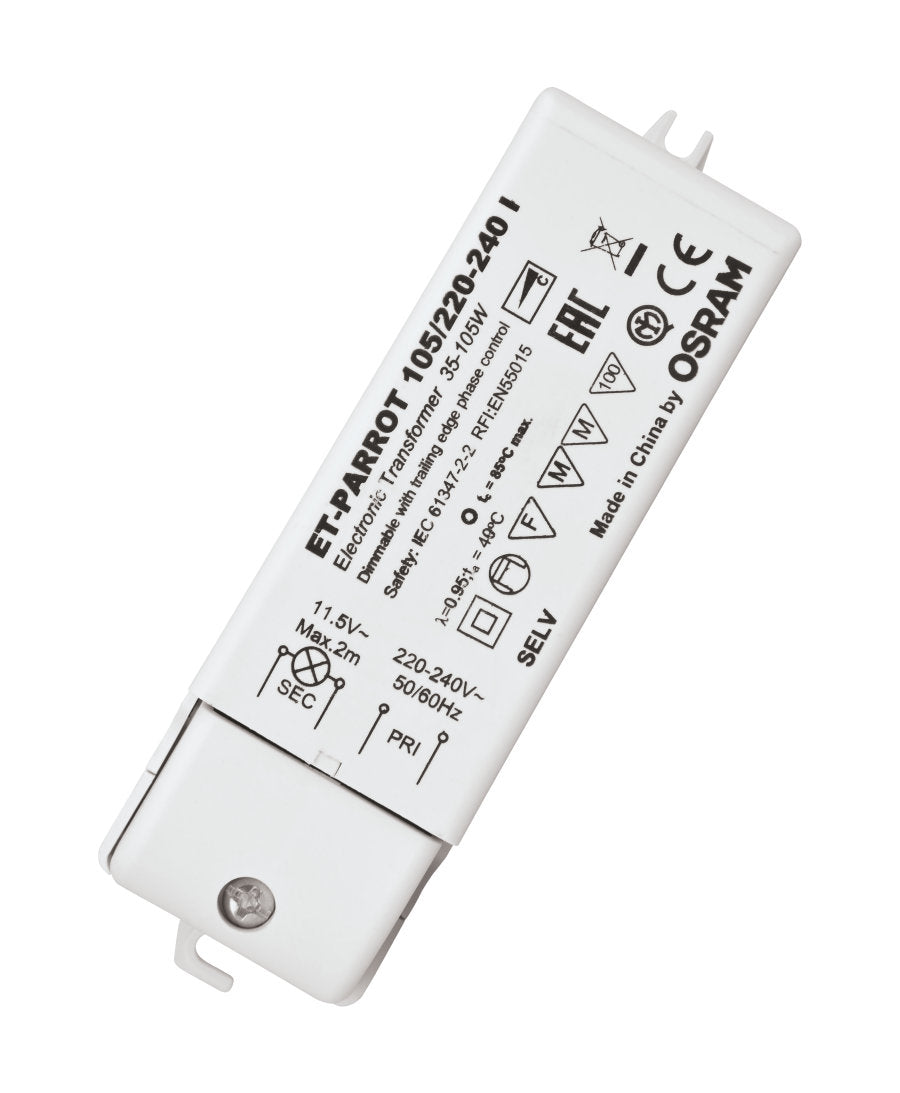

ET-PARROT 105/220…240 I

Product form

SKU: ETPARROT105-OS
Barcode: 4008321111579

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£14.93 Excl. VAT

(inc. 20% VAT): £17.92

    • Contact us to confirm availability
      Downloads

    Product family benefits Very low power loss thanks to high efficacy Protective operation throughout the entire partial-load range for long... Read more

    Description

    Product family benefits
    • Very low power loss thanks to high efficacy
    • Protective operation throughout the entire partial-load range for long lamp life
    Areas of application
    • Effect and accent lighting
    • Living rooms
    • Object lighting
    • Conference rooms
    • Restaurants
    • Recessed and surface-mounted furniture luminaires
    • Shop lighting
    • Event rooms

    • Technical Data

      Electrical data

      Lamp wattage

      35…105 W

      Maximum output power

      105 W

      Line current

      0.45 A


      Nominal voltage

      220…240 V

      Power factor λ

      0.95


      Operating frequency

      40 kHz


      Nominal output voltage

      11.9 / 12.0 V


      Input voltage AC

      198…264 V

      Mains frequency

      50…60 Hz

      System wattage

      111.00 W

      Efficiency in full-load

      94 %

      Input voltage range

      220…240 V

      Max. ECG no. on circuit breaker 10 A (B)

      23

      Max. ECG no. on circuit breaker 16 A (B)

      38

      Galvanic isolation primary/secondary

      4.00 kV


      Inrush current

      0.5 A

      Dimensions & weight

      Length

      128.0 mm

      Width

      38.0 mm

      Height

      31.0 mm

      Mounting hole spacing, length

      119.0 mm

      Cable cross-section, input side

      0.75 mm²

      Cable cross-section, output side

      0.75 mm²

      Wire preparation length, input side

      12 / 6.0 mm


      Wire preparation length, output side

      12 / 6.0 mm


      Product weight

      130.00 g

      Temperatures & operating conditions

      Ambient temperature range

      0…+40 °C

      Maximum temperature at tc test point

      85 °C

      Additional product data

      Design / version

      Compact

      Capabilities

      Dimming method

      Trailing- or leading-edge phase control for inductive load dimmers

      Overload protection

      Automatic reversible

      Overheating protection

      Automatic reversible

      Short-circuit protection

      Automatic reversible

      Max. cable length to lamp/LED module

      2.0 m

      Cable/wire types, input side

      H03VV-F 2x0.75 mm²

      Cable/wire types, output side

      H03VV-F 2x0.75 mm²

      Dimmable

      Yes

      Dimming range

      0…100 %

      No-load proof

      Yes

      Suitable for fixtures with prot. class

      II

      Intended for no-load operation

      No

      Certificates & standards

      Approval marks – approval

      VDE / EAC

      Standards

      Acc. to EN 61347/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547

      Type of protection

      IP20

      Logistical data

      Commodity code

      850440909000

      Environmental information


      Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

      Date of Declaration

      14-04-2022

      Primary Article Identifier

      4008321111579

      Candidate List Substance 1

      Lead

      CAS No. of substance 1

      7439-92-1

      Safe Use Instruction

      The identification of the Candidate List substance is sufficient to allow safe use of the article.

      Declaration No. in SCIP database

      ad5fb676-828d-4743-bdca-2693e619714e

      Packaging information

      EAN

      Unit

      Piece

      Dimension l x w x h

      Weight

      Volume
      4008321111579 UNV

      		1 128mm x 38mm x 31mm 130.00g 0.15dm³
      4008321111586 VS

      		50 290mm x 206mm x 220mm 697
