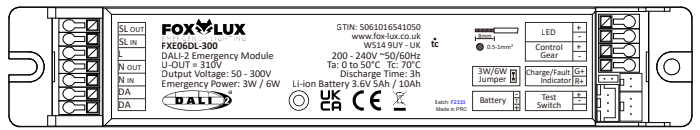

FXE06DL-300

Description

Conversion Module - DALI-2 - 300V - 3/6W

Model Variant FXE06DL‐300
Rated Supply Voltage 220‐240V AC
Mains Frequency 50 / 60 Hz
Max. Power Consumption 5W
Standby Power < 0.9W
Emergency Output Power 3W nominal or 6W nominal (selectable)
LED Forward Voltage Range 50 to 300V DC
Max. Output Voltage 310V DC
Rated Emergency Duration 3 hours
Battery Charge Time < 20 hours at 3W / < 40 hours at 6W
Operating Temperature 0 to 50°C
Insulation Class Reinforced
Module Tc. Max. 70°C
Dimensions (L x W x H) 185 x 32 x 24 mm
Battery Compatibility 2 x 18650 Li‐ion 3.6V 5.0Ah / 4 x 18650 Li‐ion 3.6V 10.0Ah
Battery Code FXC3.6‐5000‐D300 / FXC3.6‐10000‐D300

FXE06DL-300

Product form

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£62.00 Excl. VAT

(inc. 20% VAT): £74.40

    • Contact us to confirm availability
      Downloads

    Conversion Module - DALI-2 - 300V - 3/6W Model Variant FXE06DL‐300Rated Supply Voltage 220‐240V ACMains Frequency 50 / 60 HzMax.... Read more

    Description

    Conversion Module - DALI-2 - 300V - 3/6W

    Model Variant FXE06DL‐300
    Rated Supply Voltage 220‐240V AC
    Mains Frequency 50 / 60 Hz
    Max. Power Consumption 5W
    Standby Power < 0.9W
    Emergency Output Power 3W nominal or 6W nominal (selectable)
    LED Forward Voltage Range 50 to 300V DC
    Max. Output Voltage 310V DC
    Rated Emergency Duration 3 hours
    Battery Charge Time < 20 hours at 3W / < 40 hours at 6W
    Operating Temperature 0 to 50°C
    Insulation Class Reinforced
    Module Tc. Max. 70°C
    Dimensions (L x W x H) 185 x 32 x 24 mm
    Battery Compatibility 2 x 18650 Li‐ion 3.6V 5.0Ah / 4 x 18650 Li‐ion 3.6V 10.0Ah
    Battery Code FXC3.6‐5000‐D300 / FXC3.6‐10000‐D300
