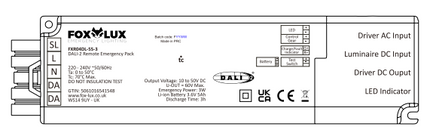

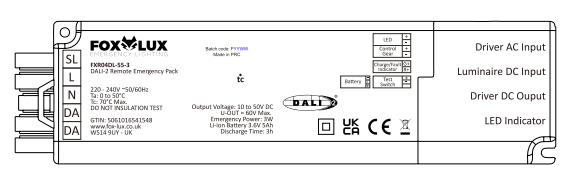

FXR04DL-55-3

Technical Data
Model Variant FXR04DL‐55‐3
Rated Supply Voltage 220‐240V AC
Mains Frequency 50 / 60 Hz
Max. Power Consumption 5W
Standby Power < 0.9W
Emergency Output Power 3W nominal
LED Forward Voltage Range 10 to 50V DC
Max. Output Voltage 60V DC
Rated Emergency Duration 3 hours
Battery Charge Time < 20 hours
Operating Temperature 0 to 45°C
Insulation Class Class II
Module Tc. Max. 70°C
Dimensions (L x W x H) 223 x 65 x 25 mm
Battery Compatibility 2 x 18650 Li‐ion 3.6V 5.0Ah
Battery Code FXC3.6‐5000‐E75

GREEN LED RED LED STATUS
On Off Standby
Slow Flash Off Duration test in progress
Fast Flash Off Function test in progress
Off On Fault with connected load / out of temperature range
Off Slow Flash Battery disconnected / test failure
Off Fast Flash Battery low voltage
Off Off Emergency function in operation
DALI-2 identifying code
NOTE: “Slow Flash” = 1 flash every 2 seconds. “Fast Flash” = 2 Flashes per second
