Harvard/Venture CL700D2-240-C 33W 700Ma Dali Dimmable

Description

this product is not currently available , we would suggest an alternative please see below



https://www.easy-controlgear.com/products/mackwell-led-driver-dali-dimmable-33w-700ma-48v?_pos=2&_sid=78b811065&_ss=r

Product Details

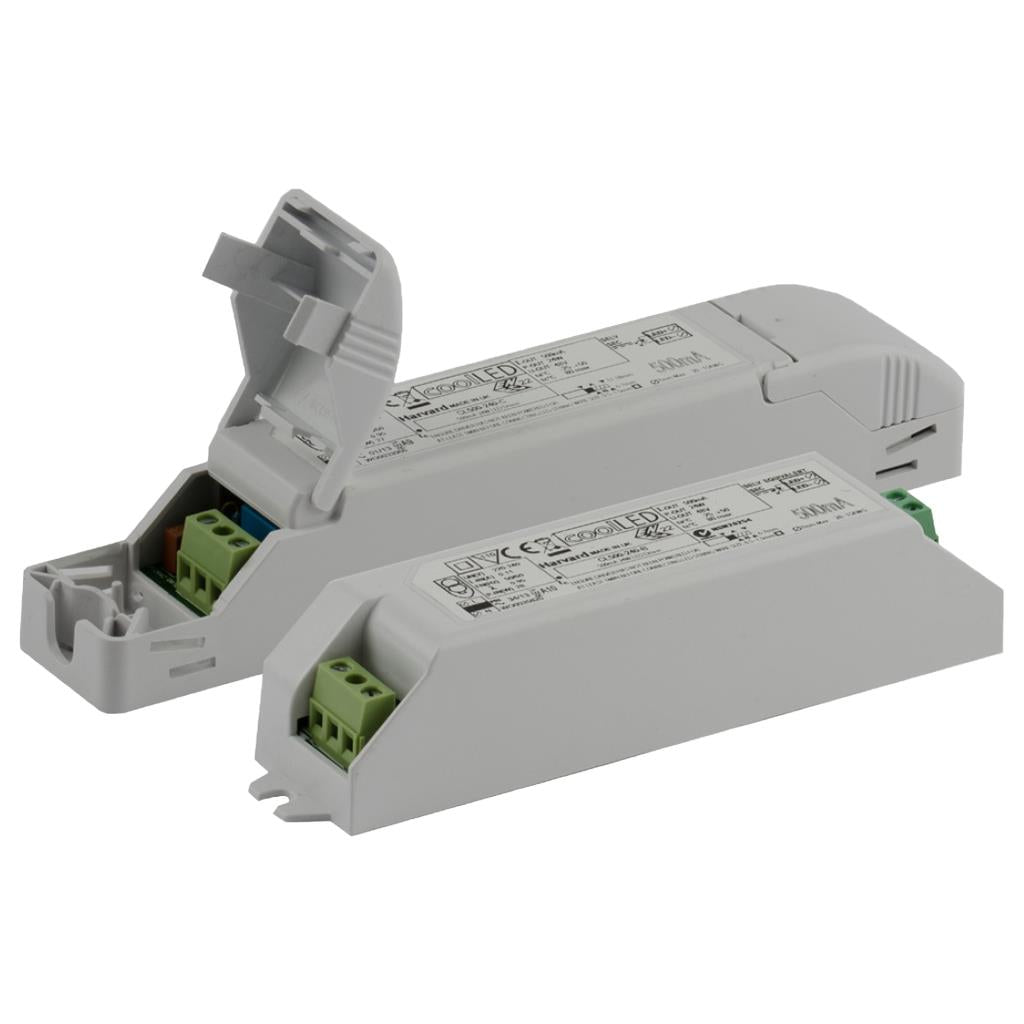

Harvard CoolLED LED Driver provide a high-performance solution for powering high-brightness LEDs from a mains supply. It has an ability to control individual LED luminaries and simultaneous control of all or specified groups. High Efficiency and Long-Life design ensure cool operation and long life with extra benefit of a very low off power. Isolated DALI interface. Constant current output. Self-resetting thermal trip. Double insulated, electrical efficiency class II. Up to 88% efficiency. LED string fault reporting. Isolated DALI interface. Lamp fault reporting checks on LED string volts.

  • · Isolated DALI interface
  • · Constant current output
  • · Self resetting thermal trip
  • · LED string fault reporting
  • · Lamp fault reporting checks on LED string volts

Specifications

Technical data Information
Brand
Harvard Power Systems
Commodity
8504409090
Item number
CL700D2-240-C
Warranty pack
60 Months Bring-In
Series
CL
RoHS
Compliant
Description
AC-DC 33W LED driver Constant Current mode (CC); Max. output 48Vdc at 0.7A; IP20; Dimming with DALI; Remote control
Packing Quantity
40
Application
LED EN 61347
Net weight (gram)
130
Technology
AC/DC
Constant Current C.C.
Format
Box Type - Enclosed
Output Power (W)
33
Output Voltage (V)
48
Output Current (A)
0.7
Input Voltage (V)
220 - 240
IP Rating
IP20
Width (mm)
32
Height (mm)
32
Depth (mm)
180
Control Signals
Remote Sense
Dimming Technology
DALI

Harvard/Venture CL700D2-240-C 33W 700Ma Dali Dimmable

Product form

SKU: CL700D2-240-C-HV

Trade price available - contact us

£49.17 Excl. VAT

(inc. 20% VAT): £59.00

    • Contact us to confirm availability
