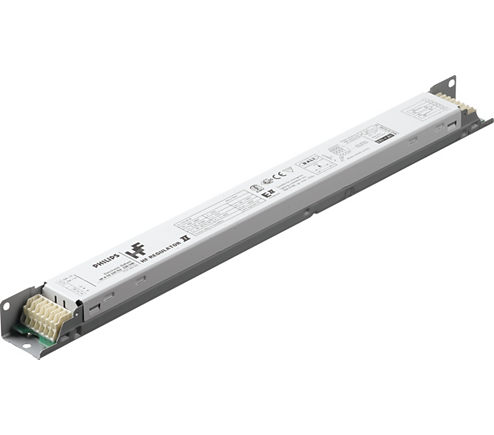

HF-R TD 280 TL5/PL-L EII 220-240V 913700609666

Description

Specifications

General Information
Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
E+
Type version
mk1
Lamp type
TL5/PL-L
Number of lamps
2 piece/unit
Number of products on MCB (16 A type B) (nom.)
9
Automatic restart
Yes
Operating and Electrical
Input Voltage
220 to 240 V
Input frequency
50 to 60 Hz
Operating frequency (max.)
- kHz
Operating frequency (min.)
- kHz
Ignition method
Warm Start
Crest factor (max.)
1.7
Power factor 100% load (nom.)
0.95
Ignition time (max.)
0.2 s
Mains voltage performance (AC)
-8%-+6%
Mains voltage safety (AC)
-10%-+10%
Earth leakage current (max.)
0.5 mA
Inrush current width
0.35 ms
Standby power consumption (max.)
0.25 W
Ballast factor (nom.)
1.0
Power losses (nom.)
11.3 W
Inrush current peak (max.)
35 A

HF-R TD 280 TL5/PL-L EII 220-240V 913700609666

Product form

SKU: HFRTD280TL5
Barcode: 8711500910677

Stock Level: Ordered in - Delivery 2-3 Days

Trade price available - contact us

£74.74 Excl. VAT

(inc. 20% VAT): £89.69

    • Contact us to confirm availability
      Downloads
